Professional High Hardness Die Grinder Drill Bits 6mm Shank Diameter
100 Pieces
MOQ
$1-$10/Piece
Price
Professional High Hardness Die Grinder Drill Bits 6mm Shank Diameter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: F/G
High Light:

rotary burr cutter

,

carbide rotary file

Payment & Shipping Terms
Packaging Details: Plastic Case
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union
Supply Ability: 250000 Piece/Pieces per Month
Specifications
Name: Tree Shape Carbide Burrs
Cut: Single & Double Cut
Size: 3-25mm
Color: Silver
Shape: Tree Shape
Certificate: ISO9001:2008
Type: SF/SG
Application: Machining Iron,Steel Casting,Steel. Hardened Steel,Copper
Product Description

Professional High Hardness Die Grinder Drill Bits 6mm Shank Diameter



Carbide Tree Burrs


Use for rounding off edges and making concave cuts. Use the pointed end for cutting in hard to reach areas and acute angled contours.

Carbide Inverted Cone Burrs

Use inverted cone shaped tungsten carbide burrs for making v-cuts and rear side chamfering.

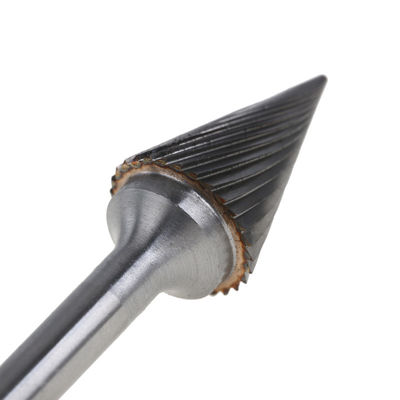

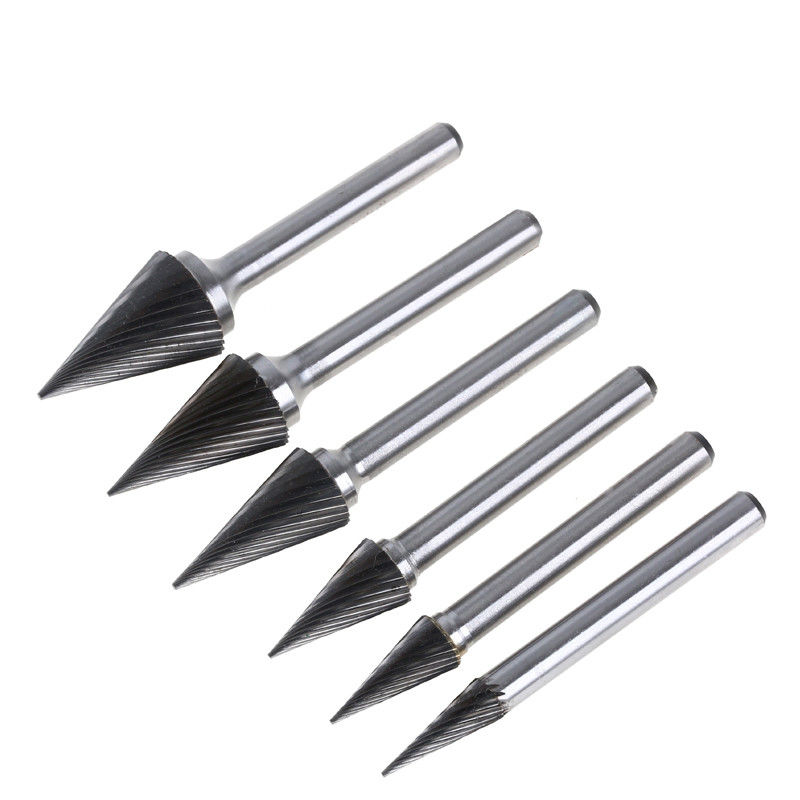

Carbide Pointed Cone & Carbide Round Nose or Ball Nose Burrs



Good for rounded edges and surface finishing in difficult to reach areas or tight and narrow angles and contours. The round nose or ball nose cone are often referred to as a taper shape.



Cylinder Burrs. Round Nose/Ball nose/End Cut



Choose from an end cut cylinder (with a cutting edge on the end) for contour finishing. Cylinder without end cut (flat on the end and no cutting edge) for contour finishing and right angled corners or a round nose or ball nose shape which is a cylinder shaped carbide burr but with a rounded head.



Oval Burrs



Flame Burrs



A wheel shaped burr with a smooth top and fluted sides. Great for channel work and shaping.



Countersink Burrs



Choose from 60 degree or 90 degree angle countersink burs, sometimes referred to carbide cone burrs. These are ideal for beveling, counterboring, chamfering and for getting into acute angled areas of your work.

Professional High Hardness Die Grinder Drill Bits 6mm Shank Diameter 0

Professional High Hardness Die Grinder Drill Bits 6mm Shank Diameter 1





Technical date

S.N. MATERIAL
1a Steel
1b Hard steels
2 Stainless steel
3 Cast iron
4 Titanium
5 Nickel
6 Copper/Copper alloys
7 Aluminum
8 Plastics
9 Cement



Guide to running speeds

mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a 60,000-80,000 35,000-45,000 22,500-35,000 20,000-30,000 15,000-20,000
1b 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
2 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
3 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 9,000-20,000
4 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
5 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
6 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 3,000-20,000
7 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
8 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
9 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
