HRC65 4 Flute Solid Carbide End Mill Square Head Router Bit Alloy Coating

HRC65 4 Flute Solid Carbide End Mill Square Head Router Bit Alloy Coating
Features Gallery Product Description Request A Quote
Type: End Mill, Face Mill, 4 Flute Straight Bit Wood Router Bits, Tungsten Carbide Milling Tool For Steel, Convex Mill
Coating: AlTiN, TiAIN, AlTiN/TiAlN, TiCN, Ni Or Black
Material: Carbide, Tungsten Cobalt Alloy, Fine Grain Tungsten Carbide, 42CrMo, High Speed Steel
Diameter: 1-20mm, 8mm, 0.2-25mm, D1.0 - 20mm, Micro To Large
Overall Length: 50-150mm, 80mm, 38.5mm-150mm, Length, 50-200
Flutes: 4 Flutes, 2/3/4, 4
HRC: 45/55/60/65, 45/50/55/60, 55/45, 50/60Degree, 50/55 HRC
Suitable For: Carbon Steel, Cast Iron, Cooper.Cast Iron.Carbon Steel.Mould Steel, Copper, HDF
High Light:

solid carbide end mill


carbide end mill cutter

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO 9001
Model Number: 4F-4*20*4*75
Payment & Shipping Terms
Packaging Details: PLASTIC CASE
Delivery Time: 7-15
Payment Terms: T/T, Western Union
Supply Ability: 20000PCS PER MONTH
Product Description

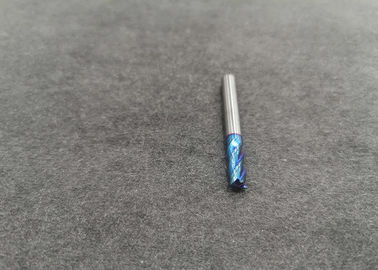

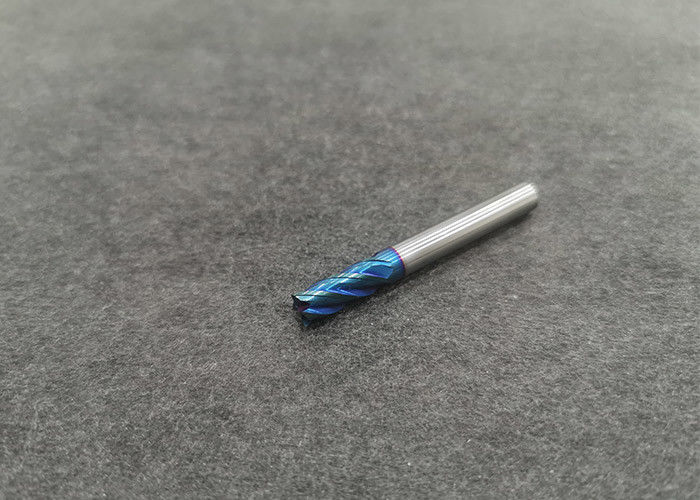

HRC65 4 Flutes Carbide Square Head Router Bit End Mill Milling Tools Alloy Coating


Applications and Advanteges:


1. For longer tool life and better finishing, these solid carbide end mills are harder, stronger and more wear-resistant than high-speed steel and cobalt steel end mills. Their extreme hardness means that they are brittle, so a highly rigid setting, such as a CNC machine tool, is necessary to prevent the terminal rolling mill from breaking. They have a square end-milled square groove, pockets, and edges. All are center cuts that allow insertion into a surface for cutting.

2. End mills with fewer flutes provide better chip clearance for high-capacity, high-speed plunge, slots, and rough cutting; end mills with more flutes provide a finer finish and more vibration during high-speed operation small.

3. Use uncoated end mills for general-purpose milling and short-term production. The use of coated end mills for high-demand, high-speed processing of hard materials and long-term production operations. They are more wear-resistant than uncoated end mills. Titanium nitride (TiN) coated end mills produce less friction than uncoated end mills, which means that end mills have a longer life at the same speed. Titanium-plated carbonitride (TiCN) end mills have a hard, smooth surface that prevents cutting and wear, and prevents material from accumulating on the cutting edge. They are particularly suitable for use in aluminum. Titanium nitride-aluminum (TiAlN) coated end mills have better heat dissipation than other end mills, especially at high speeds. At high temperatures, the coating produces a layer of aluminum oxide that transfers heat to the chip and keeps the tool cool even without lubrication.
