Name: CNC Coated Milling Cutter DLC Tungsten Carbide Flat End Mill
Brand: KINGTOOLS
SKU: 4F-10*25*10*75
Price: 1 USD
Availability: InStock
Rating: 4.8 (127 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Carbide End Mill

Type: End Mill,Square,standard

Diameter: 1.0mm To 22.0mm,D 1 - 25mm

Hrc: 45/55/60/65 HRC

Suitable For: Carbon Steel,Stainless Steel,copper

Precision: High Precision,ISO Standard

Flutes: 1-10F

Oem: Acceptable

High Light:

CNC Coated Milling Cutter

DLC coated milling cutter

DLC Tungsten Carbide Flat End Mill

Basic Infomation

Place of Origin: SICHUAN, CHINA

Brand Name: KINGTOOLS

Certification: ISO 9001

Model Number: 4F-10*25*10*75

Payment & Shipping Terms

Packaging Details: Platic box & carton

Delivery Time: 7-15

Payment Terms: L/C, , T/T, Western Union, MoneyGram

Supply Ability: 20000PCS PER MONTH

Gallery

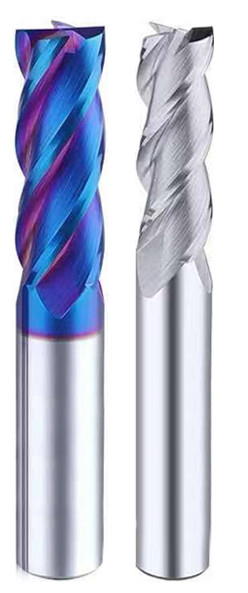

CNC Coated Milling Cutter DLC Tungsten Carbide Flat End Mill

Product Description

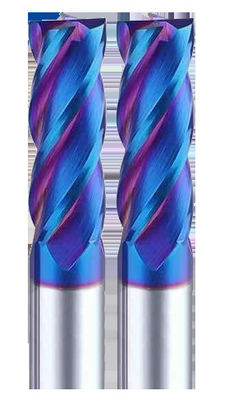

CNC Coated Milling Cutter Blue DLC Coating Tungsten Carbide Flat End Mill for Metal Wood Carving

Specification:

Name: END MILLS

Material: 100% raw material carbide

Metrial: Tungsten Carbide
Coating: HRC45° HRC50° HRC55° HRC60° HRC65°

Flute:1Flute 2Flute 3Flute 4Flute 5Flute End Mills

About Coatings:

Endmill Grade	Coating Name	Color	Hv	μm	Friction	The MaxºC	Application
HRC 45° coating	AlTiN	black	3300	0.6	0.7	850ºC	Suitable for General Steel
HRC 50° coating	AlTiN	black	3300	0.6	0.7	850ºC	Suitable for General Steel
HRC 55° coating	TiSiAlN	bronzed	3400	0.5	0.7	900ºC	General Steel,cast cast iron
HRC 60° coating	AlCrSiN	black	4000	0.4	0.35	1100ºC	High Hard Material, steel, cast iron, etc
HRC 65° coating	nACo 3 Blue	blue	4500	0.4	0.45	1200ºC	Titanium Alloy, High-temperature Alloy,material, etc
HSS	nACo 3 Blue	Other	4500	0.4	0.45	1200ºC	Stainless steel
Free Sample Test : Contact Us For Inquiry

Product Catalog:

Product Sizes:

D1 (Diameter of cut)	d (Shank Diameter)	L (Flute Length)	L1 (Overall Length)
1mm	4mm	3mm	50mm
1.5mm	4mm	4mm
2mm	4mm	6mm
2.5mm	4mm	8mm
3mm	3mm	8mm
3mm	4mm	8mm
3.5mm	4mm	11mm
4mm	4mm	11mm
1mm	6mm	3mm
1.5mm	6mm	4mm
2mm	6mm	6mm
2.5mm	6mm	8mm
3mm	6mm	8mm
3.5mm	6mm	11mm
4mm	6mm	11mm
4.5mm	6mm	13mm
5mm	5mm	13mm
5mm	6mm	13mm
6mm	6mm	15mm
7mm	8mm	20mm
8mm	8mm	20mm
9mm	10mm	25mm	75mm
10mm	10mm	25mm
12mm	12mm	30mm
14mm	14mm	45mm	100mm
16mm	16mm	45mm
18mm	18mm	45mm
20mm	20mm	45mm

Production Process:

CNC Coated Milling Cutter DLC Tungsten Carbide Flat End Mill 1

Package & Shipping:

Our Advantages:

Suitable for finishing,can achieve the mirror effect.
coating increase surface gloss,and prolonging life.
100% quality guarantee (ISO9001)
Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
