Carbide Durable Composite Welding Rods With Carbide Particles

10 KG
29.99-35.99 USD
Carbide Durable Composite Welding Rods With Carbide Particles
Features Gallery Product Description Request A Quote
Material: YGN70,YGC70,YGU70,YNN70
Operating Temperature: 890-950℃
Overall Length: 440~450mm
Color: Yellow Copper, Sliver
TRS: >690Mpa
Welding Current: 50-240A
Application: Copper, Stainless Steel, Steel Etc.
High Light:

Carbide Composite Welding Rods


YGC70 Composite Welding Rods


690MPa Carbide Composite Rods

Basic Infomation
Place of Origin: China,Sichuan
Certification: ISO9001-2008
Model Number: Composite Welding Rods
Payment & Shipping Terms
Packaging Details: Foam paper + paper box
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal etc.
Supply Ability: >1ton per month
Product Description

Description of Composite Welding Rods :

  1. Tungsten carbide composite welding rod is made of cemented carbide particles and Ni/Ag(Cu)alloy. The carbide particles always be tungsten carbide crushed grits, carbide wear inserts, like the carbide star shape inserts, carbide pyramid shape inserts, shark shape inserts and so on. Sometimes, the carbide particles can be tungsten carbide powder.
  2. The economy choice is tungsten carbide crushed grits. If you want to higher durable than carbide grits, carbide inserts is better. However the cemented carbide/crushed carbide with sharp edge has excellent wear resistance and cutting ability too.
  3. The hardness is 89-91 HRA, the binder metal is Ni and copper alloy, strength can up to 690MPa, hardness HB≥160.
  4. To brief, most of the Composite rod made using crushed sintered Tungsten Carbide grains bonded with a bronze nickel matrix,(Cu 50 Zn 40 Ni 10) with a low melting point ( 870°C ).

Specifications of Composite Welding Rods:

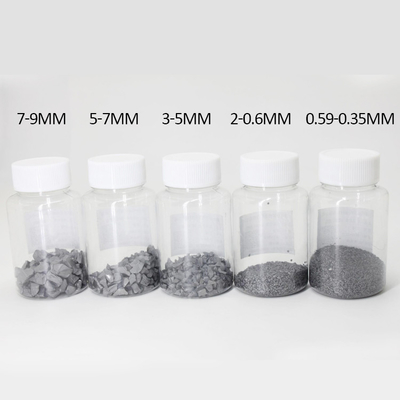

The grain sizes of the carbide particles:
  • 1/8-1/16 in. ( 3.2-1.6 mm )
  • 3/16-1/8 in. (4.8-3.2 mm)
  • 1/4-3/16 in. (6.3-4.8 mm)
  • 3/8-5/16 in. (9.5-7.9 mm)
  • 5/16-1/4 in. (7.9 -6.3 mm)
  • 3/8-1/4 in. (9.5-6.3 mm)
  • 1/2-5/16 in. (12.7-7.9 mm)
The grades of the composite welding rods:
There are main grades depends on the different Proportion of the tungsten carbide particles.
Chemical compositions(%)
Physical performance
Hardness: >160 HB TRS: >690MPa
Down hole tools
Agricultural/mining equipment
Turbine Blades
Tool joints
Extruder barrels and screws


Composite Welding Rod with Copper matrix alloy: Composite Welding Rod with nickel matrix alloy:

AWS: RBCuZn-A                                                                           AWS: RBCuZn-D

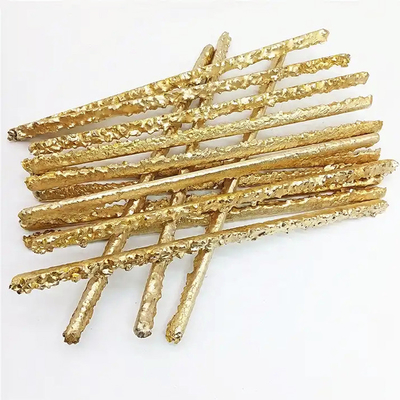

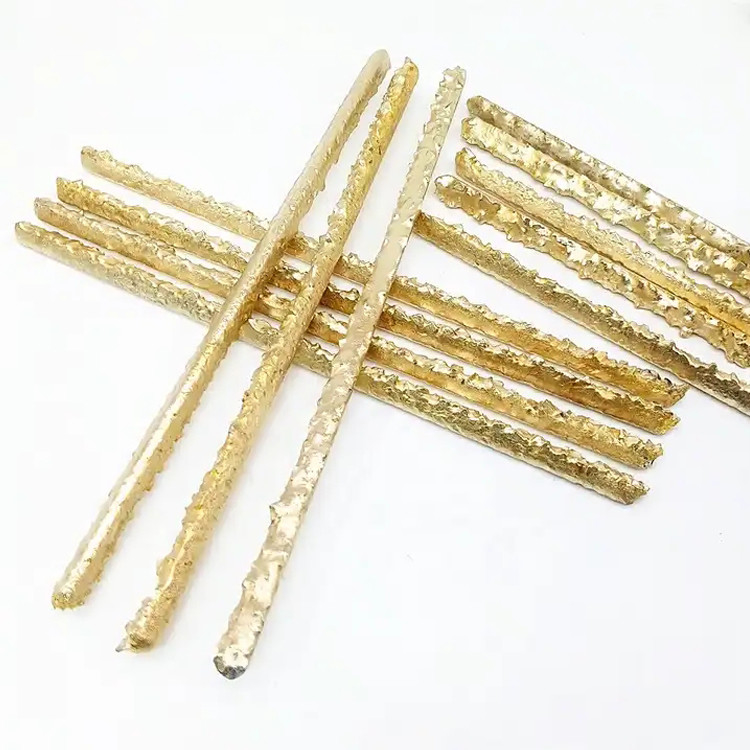

Carbide Durable Composite Welding Rods With Carbide Particles 0              Carbide Durable Composite Welding Rods With Carbide Particles 1


Application of Composite Welding Rods:




Composite rod welding has been acknowledged throughout oil drilling, mining and construction industry worldwide for its extra hardness and high wear resistant properties. The use is even spreading to more industries and gets greater uses. Composite rod welding has wear and cutting properties coupled by high-end weld ability and low fuming, allowing the material to use in stabilizers, reamers, drill pipe joints, construction drilling, hydraulic-cutter, pipe cutter blades, core bit, scraper, twist drill, milling and grinding shoes etc.
Carbide Durable Composite Welding Rods With Carbide Particles 2
Carbide Durable Composite Welding Rods With Carbide Particles 3

Advantages of Composite Welding Rods:

First, to increase the speed ofdownhole milling and cutting.

      Second to protect the surface of tools subject, to abrasive wear,maintaining full guage on stabiliz-ers, guides keyseat wipers, andother downhole tools.

  • High Strength
  • High Hardness
  • Abrasion Resistance
  • Long Service Life
  • Easy to Replace


FAQ of Composite Welding Rods:

Q: Are you trading company or manufacturer ?

A: We are factory.


Q: How long is your delivery time?

A: Generally within 7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance, balance before shipment.
