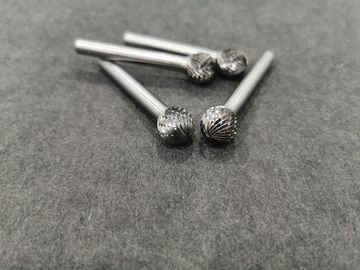

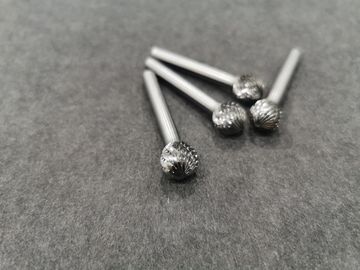

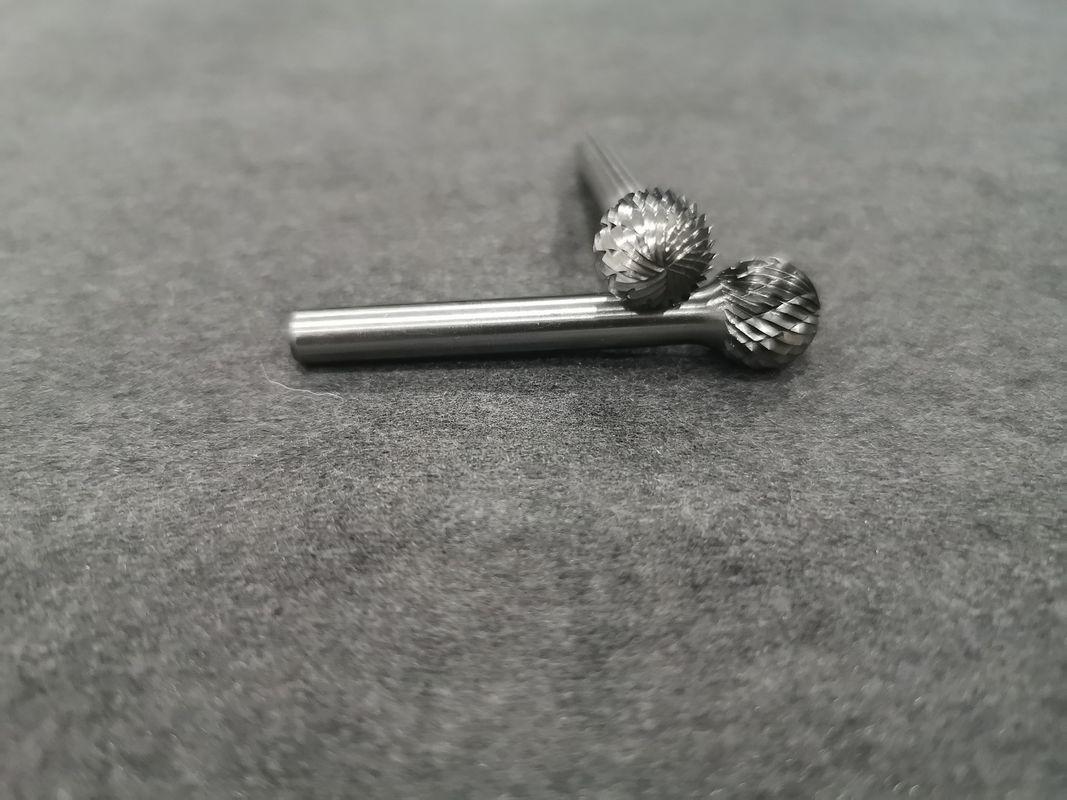

SD DOUBLE CUT BALL BURR BITS/CARBIDE ROTARY RASP OEM/ODM SERVICE

100 Pieces
MOQ
$1-10/Pieces
Price
SD DOUBLE CUT BALL BURR BITS/CARBIDE ROTARY RASP OEM/ODM SERVICE
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: BALL SHAPE
Usage: CUTTING METAL/STEEL/STONE
Grade: YG6/7/8/10
Size: 1/8-1 INCH
Delivery: AIR/SEA/LAND
Color: SILVER
Cutting Types: SINGLE/COUBLE/ALUMINUM
Port: SHANGHAI/GUANGZHOU/SHENZHEN
Highlight:

ball burr bits

,

aluminium die grinder bit

Basic Infomation
Place of Origin: SICHUAN CHINA
Brand Name: KTS
Certification: ISO9001:2008
Model Number: BALL SHAPE
Payment & Shipping Terms
Packaging Details: PLASTIC CASE
Delivery Time: 7-30 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25000 PIECES PER MONTH
Product Description

SD DOUBLE CUT BALL BURR BITS/CARBIDE ROTARY RASP OEM/ODM SERVICE


The difference between double slot and single slot:

The double groove has a cross pattern, which is suitable for low-density objects. For example: used for wood, plastic, aluminum, etc.! The cross pattern has a fast chip removal speed, and it is not easy to block the pattern when grinding and engraving, so it is more suitable to open a double groove on a soft object!
The texture of the single groove determines that it is not ideal to use softer objects, because when the single groove knife is working and cutting, the broken waste will easily block the groove, resulting in shallower groove texture and reduced cutting ability; this is what we often say, The knife is not fast! Single slot is more suitable for iron, copper, steel and other hard objects.

Carbide rotary file features:

Cemented carbide has a series of excellent properties such as high hardness, wear resistance, good strength and toughness, and heat resistance, especially its high hardness and wear resistance, which remain basically unchanged even at a temperature of 500°C. It still has high hardness at 1000°C.
Cemented carbide is widely used as tool materials, such as turning tools, milling cutters, planers, drills, boring cutters, etc., for cutting cast iron, non-ferrous metals, plastics, chemical fibers, graphite, glass, stone and ordinary steel, and can also be used for cutting resistant Hot steel, stainless steel, high manganese steel, tool steel and other difficult-to-process materials.
1. High hardness (86~93HRA, equivalent to 69~81HRC);
2. Good hot hardness (up to 900~1000℃, keeping 60HRC);
3. Good abrasion resistance.
The cutting speed of cemented carbide tools is 4 to 7 times higher than that of high-speed steel, and the tool life is 5 to 80 times higher. Manufacturing molds, measuring tools, life span is 20-150 times longer than alloy tool steel. It can cut hard materials around 50HRC.
SD DOUBLE CUT BALL BURR BITS/CARBIDE ROTARY RASP OEM/ODM SERVICE 0
Technical date

S.N. MATERIAL
1a Steel
1b Hard steels
2 Stainless steel
3 Cast iron
4 Titanium
5 Nickel
6 Copper/Copper alloys
7 Aluminum
8 Plastics
9 Cement


Guide to running speeds

mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a 60,000-80,000 35,000-45,000 22,500-35,000 20,000-30,000 15,000-20,000
1b 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
2 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
3 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 9,000-20,000
4 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
5 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
6 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 3,000-20,000
7 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
8 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
9 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000


Tungsten carbide burs are manufactured in compliance with the highest standards. Our comprehensive product portfolio offers a broad range of reliable and market-proven solutions for every application. Our know-how and expertise allow us to continuously improve our offering to provide outstanding quality and deliver excellent performance across a wide range of industries, optimizing processes in regards to economic efficiency, safety and process optimisation.

SD DOUBLE CUT BALL BURR BITS/CARBIDE ROTARY RASP OEM/ODM SERVICE 1


Matters needing attention:

1. Mainly used on electric or pneumatic tools.
2. The speed is generally 6000-50000 rpm.
3. When using, the tool should be clamped upright, and the cutting method should be up-cut milling to avoid reciprocating cutting.
4. To prevent chip splashing during work, please use protective glasses.
