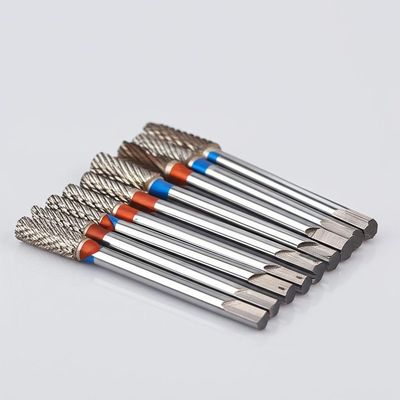

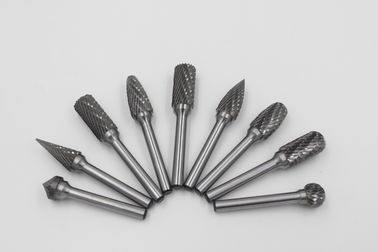

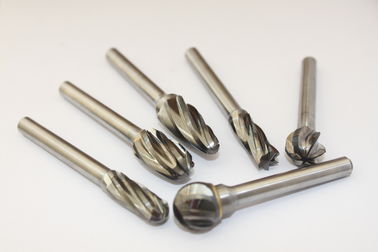

Solid Tungsten Carbide Rotary Burr Set with 6.35mm 6mm and 1/4" Shank Options for Precision Machining

Name: Solid Tungsten Carbide Rotary Burr Set with 6.35mm 6mm and 1/4" Shank Options for Precision Machining
Brand: JOINT CARBIDE CO., LTD.
SKU: Custom
Price: 4.00 USD
Availability: InStock

Brand Name:	KTS
Model Number:	Custom
MOQ:	20 Piece/Pieces
Price:	$1.00 - $8.00 / Pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	250000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan, China

Certification:

ISO9001:2008

Name:

Tungsten Carbide Rotary Files

Material:

Tungsten Carbide

Grade:

YG 8

Shank:

40 Cr

LOGO:

Customized

Trial Order:

Acceptable For Any Quantity

Type Of Cut:

Standard Double-cut,fine Cut,fine Double-cut,etc.

Certificate:

ISO9001:2008

Business Type:

Manufacture & Trade Integration

Sample:

Supplied

Port:

CHENGDU/SHANGHAI/GUANGZHOU/SHENZHEN

Packaging Details:

Plastic box in Standard export carton

Highlight:

carbide grinding bits

die grinder deburring bits

Product Description

Manufacturer 6.35mm 6mm 1/4" Shank Solid Rotary Drill Rotary Burr Carbide Set

Product Description

Material: 100% of raw materials.

Tolerance: strict tolerance extent control, which can reach +/-0.01mm

Grades: various for choice: YG6, YG8, YG8C, YG11C, YG15C and so on.

Types: standard, conical, parabolic, ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.

Product name	Tungsten Carbide Rotary Files
Brand	KTS
Shank hardness	HRA 89-92.5
Material	Tungsten Carbide
Shank diameter	3mm/6mm/8mm/10mm...
Packing	Set packing
Speed of tool	15000-45000 Turn/min
Certificate	ISO9001:2008

How to Use the Carbide Burrs

Speed / RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.

Diameter of Burr	RPM
2.35mm or 3/32"	17,000 - 26,000
3mm or 1/8"	17,000 - 26,000
6mm or 1/4"	11,000 - 16,500
12mm or 1/2"	8,000 - 12,000
16mm or 5/8"	7,650 - 11,500

Application Tips

Apply only a little pressure - let the burr do the work to prevent chipping or premature wear.
Keep the carbide burr moving to prevent digging and jabbing into your material.

Advantages of Our Carbide Burrs

100% quality and brand new
Can process a variety of metal and non-metal, processing hardness up to HRA89-92.5
Replaces petiole small wheel with no dust pollution
High production efficiency - several times higher than file, nearly 10 times higher than small wheel stalk
High product processing quality with excellent finish
Long life - 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel
Easy to use, safe and reliable
Suitable for processing cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, ceramic tile, marble, jade, bone, etc.

Product Application

Tungsten carbide burr is used widely in shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine many different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service is guaranteed through virgin and excellent raw material selection.

Risk Guarantee

100% raw material, no waste tungsten carbide added
Do not use through hole, tail hole welding
100% factory direct sales

Packing & Shipping

Plastic box in standard export carton

Sea Transportation
Air Transportation
Land Transportation
Railway Transportation

Frequently Asked Questions

1. Could you please send me your catalog with price list?

Yes, catalog is available. Please tell us the item number you're interested in and we'll send quotation list promptly.

2. May I order small quantity of carbide products?

Different models have different MOQ. Please contact us to confirm.

3. Can you provide sample?

Yes, please specify the item number you prefer. Custom designs are welcome for sampling.

4. When can you send me the carbide products after payment?

Approximately 30 days.

5. What is your price term, payment term and delivery terms?

Price Terms: FOB Guangzhou, balance paid before shipment

Payment Terms: T/T in advance

Delivery Terms: By express, by air, by shipment or as per requirement

6. What is your guarantee?

Products pass strict inspection before shipment. If any problem is found, please provide detail photos within 20 days of receiving goods. After confirmation, compensation will be offered accordingly.
