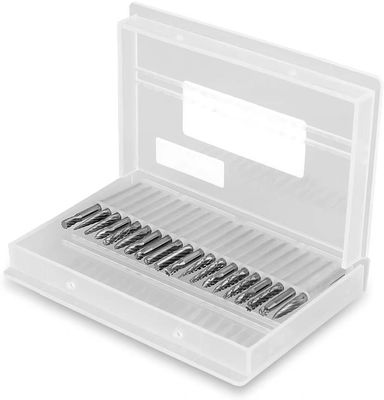

20PC Double Cut Carbide Burr Set - 0.118" (3mm) Shank, Rotary Tool Cutting Burrs
1 Set/Sets
MOQ
$9.00 - $16.00 / Sets
Price
20PC Double Cut Carbide Burr Set - 0.118" (3mm) Shank, Rotary Tool Cutting Burrs
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: 3*3mm Solid carbide burrs
High Light:

solid carbide burr set

,

double cut carbide rotary burr set

Payment & Shipping Terms
Packaging Details: The carton
Delivery Time: 7-15
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Set/Sets per Month
Specifications
Name: Tungsten Carbide Rotary Files
Material: Tungsten Carbide
Grade: YG7
LOGO: Customized
Trial Order: Acceptable For Any Quantity
Type Of Cut: Standard Double-cut,fine Cut,fine Double-cut,etc.
Certificate: ISO9001:2008
Business Type: Manufacture & Trade Integration
Sample: Supplied
Port: Any Port
Product Description
20PC Double Cut Carbide Burr Set - 0.118" (3mm) Shank, Rotary Tool Cutting Burrs
Product Description
20PC Double Cut Carbide Burr Set - 0.118" (3mm) Shank, Rotary Tool Cutting Burrs 0
Product name
Tungsten Carbide Rotary Files
Brand
KTS
shank hardness
HRA 89-92.5
Material
Tungsten Carbide
shank diamter
 3mm/6mm/8mm/10mm...
Packing
set packing
speed of tool
15000-45000Turn/min
Certificate
 ISO9001:2008
How to use the carbide burrs

1.Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500
2.Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3.Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.



Advantage of our carbide burrs

·100% quality and brand new.
·Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
·In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
·High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
·High product processing quality, high finish, can process out a various of high-precision mold cavity.
·Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
·Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
·Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.



20PC Double Cut Carbide Burr Set - 0.118" (3mm) Shank, Rotary Tool Cutting Burrs 1
Product Application
Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.


Risk guarantee

· 100% raw material, no waste tungsten carbide added
· Do not use through hole, tail hole welding
· 100% factory direct sales
1. Sea Transportation
2. Air Transportation
3. Land Transportation
4. Railway Transportation
