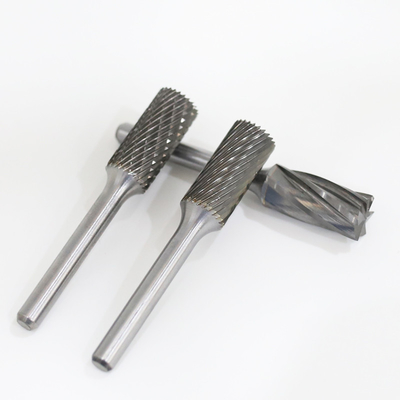

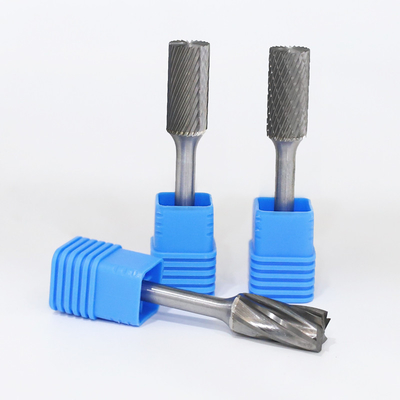

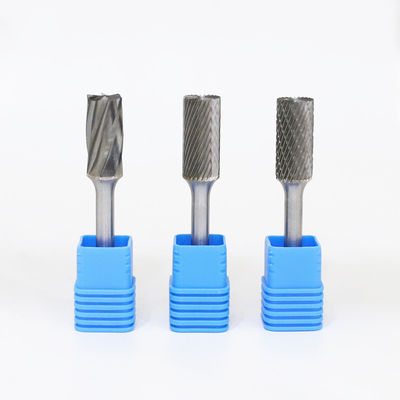

Tungsten Carbide Rotary Burrs Cylindrical End Cut YG6/YG8/YG10X

Tungsten Carbide Rotary Burrs Cylindrical End Cut YG6/YG8/YG10X

Brand Name:	KTS、WUWTOOLS
Model Number:	SB/BS-5/SB-5M
MOQ:	100 Piece/Pieces
Price:	$1.00 - $10.00/ Pieces
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	250000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan, China

Certification:

ISO9001:2008

Name:

Tungsten Carbide Rotary Files

Material:

Tungsten Carbide

Shape:

Cylindrical End Cut

Grade:

YG6/YG8/YG10X

Colour:

Silver/Golden

Shank:

40 CrMo

LOGO:

Customized

Sample:

Supplied

Certificate:

ISO9001:2008

Business Type:

Manufacture & Trade Integration

Port:

SHENZHEN/CHENGDU/GUANGZHOU

Packaging Details:

Plastic box in Standard export carton

Highlight:

cylindrical rotary file

burr grinder bits

Product Description

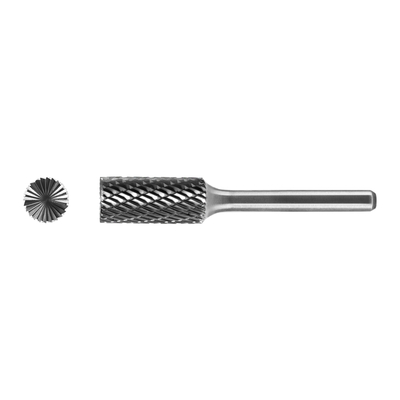

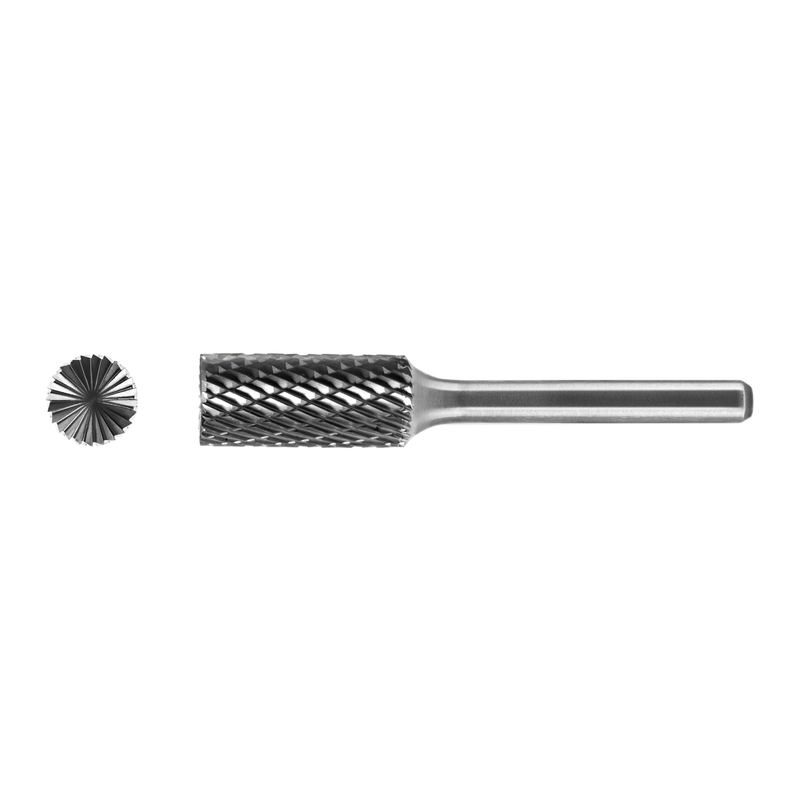

Type B Tungsten Carbide Rotary Burrs - Cylindrical End Cut

Product Specifications

Attribute	Value
Name	Tungsten Carbide Rotary Files
Material	Tungsten Carbide
Shape	Cylindrical End Cut
Grade	YG6/YG8/YG10X
Colour	Silver/Golden
Shank	40 CrMo
LOGO	Customized
Sample	Supplied
Certificate	ISO9001:2008
Business Type	Manufacture & Trade Integration
Port	SHENZHEN/CHENGDU/GUANGZHOU

Shank Sizes

3.0mm (1/8") Shank Diameter: Applicable to carbide burr cutting head diameter range 1.0-6.0mm
6.0mm (1/4") Shank Diameter: Applicable to carbide burr cutting head diameter range 6.0-25.0mm
8.0mm (5/16") Shank Diameter: Applicable to carbide burr cutting head diameter range 12.0-25.0mm
10.0mm (3/8") Shank Diameter: Applicable to carbide burr cutting head diameter range 16.0-25.0mm

Cut Types

Single-cut burs: General purpose work with good material removal
Double-cut burs: Produce smaller chips for greater control on stainless steels and ferrous materials
Aluma-cut burs: Wide flute design for easy stock removal without loading on nonferrous and soft materials
Standard-cut burs: Widely used with fine finish results

Available Shapes (A-N)

SA: Cylindrical Shape
SB: Cylindrical with End Cut
SC: Cylindrical Ball Nose
SD: Ball Shape
SE: Oval Shape
SF: Tree Shape
SG: Point Tree Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape
SM: Cone Shape
SN: Inverted Cone Shape

Technical Excellence

ISO-Certified Manufacturing: Precision-ground for perfect balance and concentricity
Advanced Heat Resistance: Sustains high RPM operations without performance loss
Reduced Vibration & Noise: Ergonomically designed for operator comfort and safety

Industry Applications

Metalworking: Porting engine heads, weld cleaning, die correction
Wood & Stone: Sculpting, engraving, and detailing
Aerospace & Automotive: High-precision mold cavity machining
Jewelry & Art: Intricate designs on soft metals and composites

WUWTOOLS Carbide Burrs Advantages

Superior Material: 100% virgin tungsten carbide with extreme hardness (up to HRC70) and heat resistance
10x Longer Lifespan: Outperforms high-speed steel tools and grinding wheels in durability
Multi-Material Compatibility: Efficiently process metals and non-metals including wood, ceramics, and plastics
High-Speed Efficiency: Achieve 10x faster material removal than traditional files
Custom Solutions: Tailored coatings, extended shanks, and specialized geometries available

Customization Services

Standard Kits: Pre-configured sets with popular shapes and cuts
Build Your Own Kit: Select shapes, coatings, cases, and laser-marked IDs
OEM Support: Extended shanks, special geometries, and anti-corrosion coatings available

Performance Optimization Tips

Safety First: Always wear PPE (goggles, gloves) and secure the burr tightly in the collet
Optimal RPM: Use higher speeds for cost-efficiency; reduce RPM for extended shanks
Light Pressure: Let the burr's cutting edges do the work to avoid overheating
