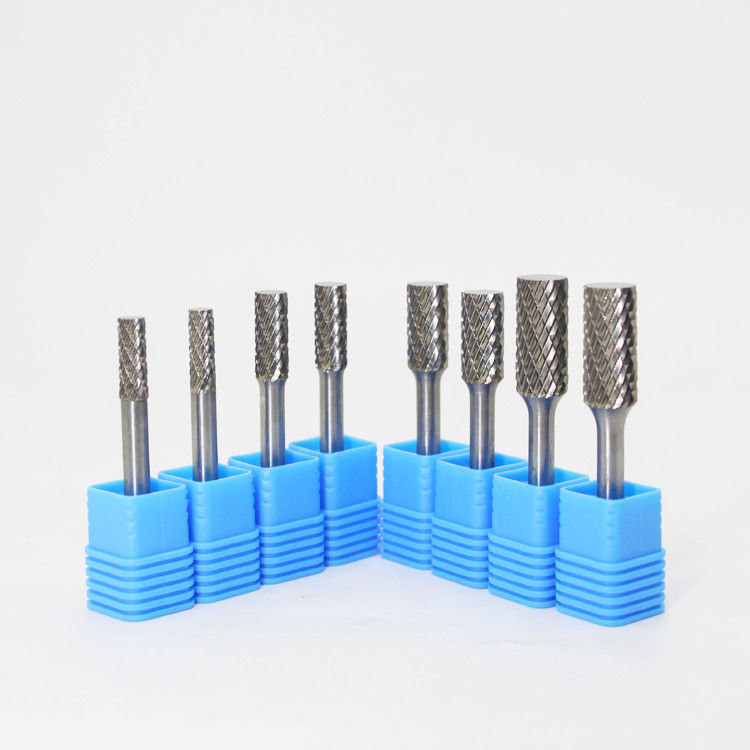

YG10X Cylindrical Rotary Tungsten Carbide Die Grinder Bits For Wood Carving ISO9001

YG10X Cylindrical Rotary Tungsten Carbide Die Grinder Bits For Wood Carving ISO9001

Brand Name:	KINGTOOLS (KTS)
Model Number:	SB/BS-5/SB-5M
MOQ:	100 Piece/Pieces
Price:	$1.00 - $10.00/ Pieces
Payment Terms:	L/C,T/T,Western Union，Paypal
Supply Ability:	250000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Zigong, Sichuan, China

Certification:

ISO9001:2008

Product Name:

Cylindrical Carbide Burr

Material:

100% Raw Tungsten Carbide

Shape:

Cylinder Shape （Shape A）

Grade:

YG6/YG8/YG10X

Characteristics:

Abrasion Resistance

Shank:

40 CrMo

LOGO:

Support Customized

Usage:

Wood、Metal、other Hard Metals Etc.

Certificate:

ISO9001:2008

Business Type:

Manufacture & Trade Integration

Performance:

High Hardness And Impact Toughness

Packaging Details:

Plastic box in Standard export carton

Highlight:

YG10X die grinder for wood carving

Cylindrical tungsten carbide die grinder bits

ISO9001 rotary grinder burr bits

Product Description

Cylinder Shape Power Carving Bits for Wood Burr Grinder Bits Cylindrical Carbide Burr

Product Description:

Material: 100% of raw materials.

Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

Types: standard, conical, parabolic,ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.

YG10X Cylindrical Rotary Tungsten Carbide Die Grinder Bits For Wood Carving ISO9001 0

Product Application:

Can be used to finely process metal die cavity and mechanical chamfering, rounding, grooves, and clean up burrs of castings, flashings of forgings, welds of weldments.

Mainly used for grinding channel impeller, cleaning tubes, finishing mechanical internal surface, enlarging holes, processing and engraving metal non-metal materials.

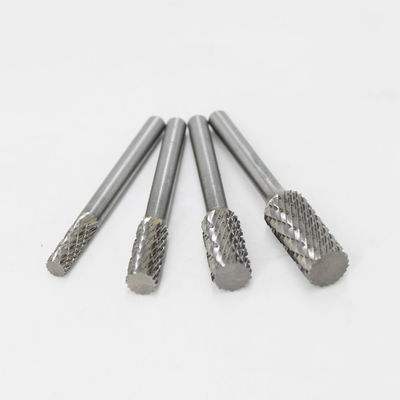

Different sizes of Type A

Metric Size
A	Shank Diameter(mm)	Cut Diameter(d1)	Cut Length(l2)	Shank Diameter(d2)	Over Length(l1)	Tools NO.	Type
	3	3	14	3	38	SA30314	Solid
		4	13	3	51	SA30413	Brazed
		5	13	3	51	SA30513	Brazed
		6	13	3	51	SA30613	Brazed
	6	6	16	6	50	SA60616	Solid
		6	16	6	61	SA60616	Brazed
		8	20	6	65	SA60820	Brazed
		10	20	6	65	SA61020	Brazed
		11	25	6	70	SA61125	Brazed
		12	25	6	70	SA61225	Brazed
		16	25	6	70	SA61625	Brazed
		20	25	6	70	SA62025	Brazed
		25	25	6	70	SA62525	Brazed
	8	10	20	8	65	SA81020	Brazed
		11	25	8	70	SA81125	Brazed
		12	25	8	70	SA81225	Brazed
		16	25	8	70	SA81625	Brazed
		20	25	8	70	SA82025	Brazed
		25	25	8	70	SA82525	Brazed
	Inch Size
	Shank Diameter(In)	Cut Diameter(d1)	Cut Length(l2)	Shank Diameter(d2)	Over Length(l1)	Tools NO.	Type
	1/8	1/8	1/2	1/8	1-1/2	SA-43	Solid
	1/8	1/4	1/2	1/8	2	SA-51	Brazed
	1/4	1/4	5/8	1/4	2	SA-1	Solid
		1/4	5/8	1/4	2-3/8	SA-1	Brazed
		5/16	3/4	1/4	2-1/2	SA-2	Brazed
		3/8	3/4	1/4	2-1/2	SA-3	Brazed
		7/16	1	1/4	2-3/4	SA-4	Brazed
		1/2	1	1/4	2-3/4	SA-5	Brazed
		5/8	1	1/4	2-3/4	SA-6	Brazed
		3/4	1	1/4	2-3/4	SA-7	Brazed
		7/8	1	1/4	2-3/4	SA-8	Brazed
		1	1	1/4	2-3/4	SA-9	Brazed

How to use the carbide burrs:

1. Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it.

The contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM.

The table below shows some approximate speeds:

Diameter of Burr RPM
3mm or 1/8"	17,000 - 26,000
2.35mm or 3/32"	17,000 - 26,000
6mm or 1/4"	11,000 - 16,500
12mm or 1/2"	8,000 - 12,000
16mm or 5/8"	7,650 - 11,500

2. Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.

3. Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.

Advantages:

* High hardness, wear-resistant and durable
* Anti-corrosion
* Smooth chip evacuation
* No dust pollution
* Tungsten carbide
* Sharp and wear-resistant

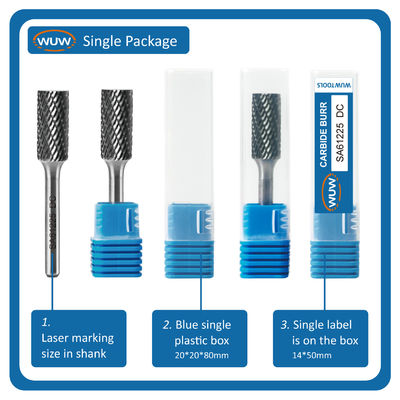

Packing&Shipping

Each product has a separate plastic box , according to the different quantity you need, we will provide you with different packaging according to your requirements.
