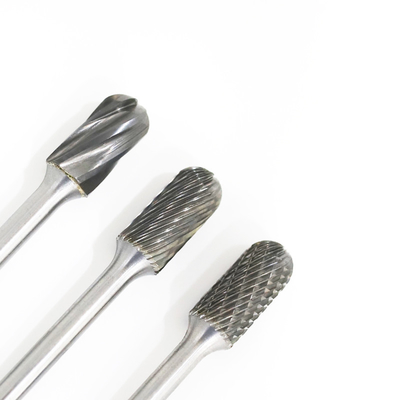

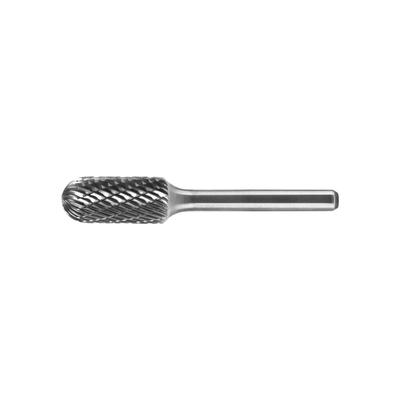

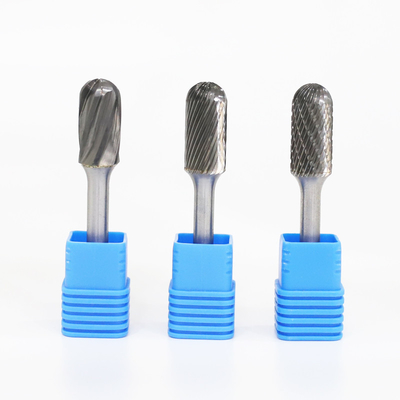

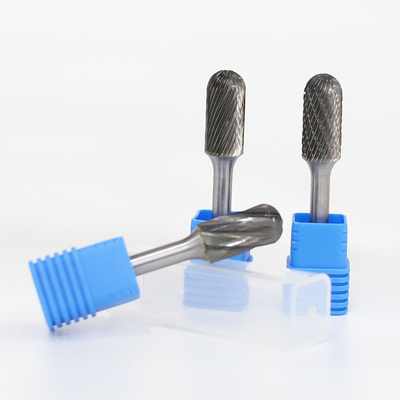

Tungsten Carbide Rotary Burr Cylinder Shape with Radius End Cut

Name: Tungsten Carbide Rotary Burr Cylinder Shape with Radius End Cut
Brand: JOINT CARBIDE CO., LTD.
SKU: CYLINDER SHAPE WITH RADIUS END
Price: 5.00 USD
Availability: InStock

Brand Name:	KTS
Model Number:	CYLINDER SHAPE WITH RADIUS END
MOQ:	100 PIECES
Price:	$1-10/PIECE
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	250000 PIECES PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

SICHUAN CHINA

Certification:

ISO9001:2008

Type:

CUTTING TOOLS

Name:

CYLINDER SHAPE WITH RADIUS END

Material:

TUNGSTEN CARBIDE BURRS

Grade:

YG6/YG7/YG8/YG10

Cut Type:

SINGLE/DOULE/ALUM CUT

Hardness:

HRC50-60/HRA92.5

Sample:

AVALIABLE

LOGO:

AS PER CUSTOMER REQUIREMENTS

Certificate:

ISO9001:2008

Port:

SHANGHAI/SHENZHEN/GUANGZHOU

Packaging Details:

Standard export cartons

Highlight:

tungsten carbide rotary burrs

carbide rotary file

Wood Metal Steel Polish Carbide Burrs

Product Description

Cylinder Shape With Radius End Round Head Cut For Wood Metal Steel Polish Carbide Burrs

Product Specifications

Attribute	Value
Type	CUTTING TOOLS
Name	CYLINDER SHAPE WITH RADIUS END
Material	TUNGSTEN CARBIDE BURRS
Grade	YG6/YG7/YG8/YG10
Cut Type	SINGLE/DOULE/ALUM CUT
Hardness	HRC50-60/HRA92.5
Sample	AVALIABLE
LOGO	AS PER CUSTOMER REQUIREMENTS
Certificate	ISO9001:2008
Port	SHANGHAI/SHENZHEN/GUANGZHOU

Shank Sizes

3.0mm(1/8") Shank Diameter: Applicable to carbide burr cutting head diameter range 1.0-6.0mm.
6.0mm(1/4") Shank Diameter: Applicable to carbide burr cutting head diameter range 6.0-25.0mm.
8.0mm(5/16") Shank Diameter: Applicable to carbide burr cutting head diameter range 12.0-25.0mm.
10.0mm(3/8") Shank Diameter: Applicable to carbide burr cutting head diameter range 16.0-25.0mm.

Cut Types

Single-cut burs: For general purpose work and good material removal
Double-cut burs: Produce smaller chips for greater control on stainless steels and ferrous materials
Aluma-cut burs: Wide flute design for easy stock removal without loading on nonferrous and soft materials
Standard-cut burs: Widely used with fine finish results

Available Shapes (A-N)

SA Cylindrical Shape, SB Cylindrical with End Cut, SC Cylindrical Ball Nose, SD Ball Shape, SE Oval Shape, SF Tree Shape, SG Point Tree Shape, SH Flame Shape, SJ 60-degree countersink, SK 90-degree countersink, SL Ball Nosed Cone Shape, SM Cone Shape, SN Inverted Cone Shape

Technical Excellence

ISO-Certified Manufacturing: Precision-ground for perfect balance and concentricity
Advanced Heat Resistance: Sustains high RPM operations without performance loss
Reduced Vibration & Noise: Ergonomically designed for operator comfort and safety

Industry Applications

Metalworking: Porting engine heads, weld cleaning, die correction
Wood & Stone: Sculpting, engraving, and detailing
Aerospace & Automotive: High-precision mold cavity machining
Jewelry & Art: Intricate designs on soft metals and composites

Why Choose WUWTOOLS Carbide Burrs?

As a globally recognized ISO-certified manufacturer, WUWTOOLS delivers unmatched quality and performance in tungsten carbide rotary burrs. Designed for durability, precision, and versatility, our tools are trusted by professionals across industries from automotive to aerospace, foundries to fabrication.

Key Advantages

Superior Material: 100% virgin tungsten carbide with extreme hardness (up to HRC70) and heat resistance
10x Longer Lifespan: Outperforms high-speed steel tools and grinding wheels in durability
Multi-Material Compatibility: Efficiently process metals (stainless steel, cast iron, aluminum) and non-metals (wood, ceramics, plastics)
High-Speed Efficiency: Achieve 10x faster material removal than traditional files
Custom Solutions: Tailored coatings, extended shanks, and specialized geometries to meet unique needs

Customization Services

Standard Kits: Pre-configured sets with popular shapes and cuts
Build Your Own Kit: Select shapes, coatings, cases, and laser-marked IDs
OEM Support: Extended shanks, special geometries, and anti-corrosion coatings available

Performance Optimization Tips

Safety First: Always wear PPE (goggles, gloves) and secure the burr tightly in the collet
Optimal RPM: Use higher speeds for cost-efficiency; reduce RPM for extended shanks
Light Pressure: Let the burr's cutting edges do the work to avoid overheating
