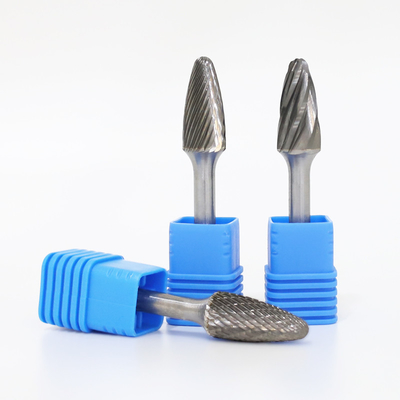

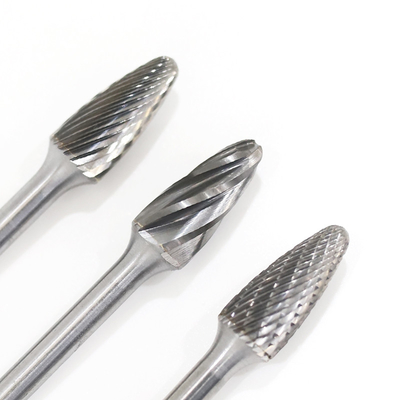

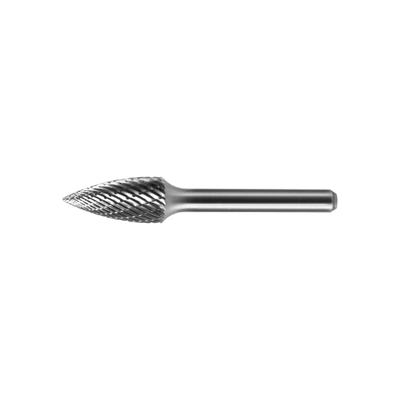

Tree Shape With Point End Sg-5f/G Shape Carbide Rotary File Grinding Tools

100 Piece/Pieces
MOQ
$1-10/ Piece
Price
Tree Shape With Point End Sg-5f/G Shape Carbide Rotary File Grinding Tools
Features Gallery Product Description Request A Quote
Features
Specifications
Type: CUTTING TOOLS
Name: TREE SHAPE WITH END CUT CARBIDE BURRS
Material: TUNGSTEN CARBIDE BURRS
Grade: YG6/YG7/YG8/YG10
Cut Type: SINGLE/DOUBLE/ALUM CUT
Hardness: HRC50-60/HRA62.5
Sample: AVALIABLE
LOGO: AS PER CUSTOMERS REQUIREMENTS
Certificate: ISO9001:2008
Port: SHANGHAI/SHENZHEN/GUANGZHOU
High Light:

tungsten carbide rotary burrs

,

carbide rotary file

,

HRC50 Carbide Rotary File

Basic Infomation
Place of Origin: SICHUAN, CHINA
Brand Name: KTS
Certification: ISO9001:2008
Model Number: TREE SHAPE WITH END CUT
Payment & Shipping Terms
Packaging Details: Standard export cartons
Delivery Time: 7-15 Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 250000 Piece/Pieces per Month
Product Description

Tree Shape With Point End Sg-5f/G Shape Carbide Rotary File Grinding Tools

Product Specification

  1. Material: 100% of raw materials.

  2. Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

  3. Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

  4. Types: standard, conical, parabolic,ballistic

  5. Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.

Product Name:CNC Solid Carbide Burrs Long Handle Shank Double Rotary Carbide Burr
MOQ:20pcs / Size
Lead Time:15-25 Days
Specification:Standard Or Customized
Loading Port:Shanghai/ Beijing/ Yiwu/ Guangzhou(Canton)/ Qingdao/ Chengdu
Trading Terms:FCA/ FOB/ CFR/ DAP
Payment Method:TT/ LC / WESTERN UNION
Payment Terms:30% Deposit Plus Balance / Negotiable



Size Rage of Each Types

  • Head dia 3-35mm
  • Shank dia 3,6.8mm
  • Increase length are ok.



NameTypeCutMaterialProduct ProcessHead HardnessLOGO
CylindricalAStandard/Single/Double/alumaYG6/YG8/YG10X/YG20CCNC89-92.5HRACustomized
Cylindrical End CutBStandard/Single/Double/alumaYG6/YG8/YG10X/YG20CCNC89-92.5HRACustomized
Cylindrical Radius EndCStandard/Single/Double/alumaYG6/YG8/YG10X/YG20CCNC89-92.5HRACustomized


Size Chart of Cylindrical Carbide Burr

Type A:
Tree Shape With Point End Sg-5f/G Shape Carbide Rotary File Grinding Tools 0
Type B:
Tree Shape With Point End Sg-5f/G Shape Carbide Rotary File Grinding Tools 1
Type C:
Tree Shape With Point End Sg-5f/G Shape Carbide Rotary File Grinding Tools 2

Sets for Tungsten Carbide Rotary Burrs



  • 8 pcs in aluminum sets

  • 8 pcs in plastic sets

  • The items can be selectable according to client demand.

Tolerence of Long ShSolid Carbide Burrs

  • Head diameter is +0.3 to +0.5mm

  • Head cutting part is +0.5 to 1.0mm

  • Shank diameter is +0 to +0.04mm

  • Totel length is +-0.1mm

Application of Carbide Wood Carving Burrs


Tungsten Cylindrical carbide rotary burrs sets are more and more widely used in the world for increasing working efficiency to realize the mechanization. It is used mainly as below:
  1. Machining the metal cavity, remove the burrs or welds of steels, cast iron and so on.
  2. Chamfering, rounding, grooving of mechanic parts.
  3. Impeller porting.
  4. Polishing the surface of precision parts.
  5. Engraving arts on metallic or non-metallic parts.

Tree Shape With Point End Sg-5f/G Shape Carbide Rotary File Grinding Tools 3

Material of Cylindrical Rotary Flies

The standard tungsten carbide grade is YG8, which is of ware-resistance and high strength.
Composition and physical performance is like below:

  1. Composition is 92% WC and 8% Cobalt.
  2. Density 14.5-14.9 g/cm3.
  3. Hardness: 89 HRA.

Tree Shape With Point End Sg-5f/G Shape Carbide Rotary File Grinding Tools 4

Packaging & Delivery

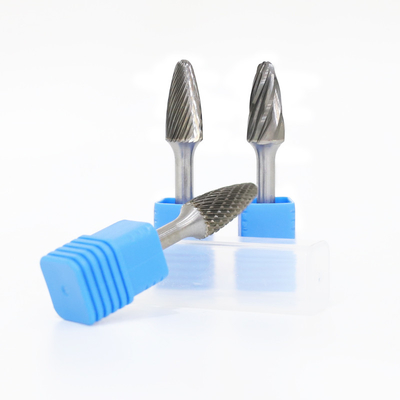

  • Individual box with blue cap
  • Transparent extended box ( for long shank burr)
  • Each carbide grinding burr will with blue cap
