Blue Coating 1/8 Inch Tungsten Carbide End Mill 2 Flute 3 Flute 4 Flute Cutter Long Length Shank

100PIECES
MOQ
1USD-20USD
Price
Blue Coating 1/8 Inch Tungsten Carbide End Mill 2 Flute 3 Flute 4 Flute Cutter Long Length Shank
Features Gallery Product Description Request A Quote
Features
Specifications
Hardness: HRC65
Material: Tungsten Carbide
Size: 1/8Inch-1Inch
Shape: Square
Flute: Two Flute/Three Flute/Four Flute
Color: Blue
OEM: Available
Grad: YG12
Highlight:

carbide end mill cutter

,

solid carbide end mill cutter

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001-2008
Model Number: 1/8INCH-1INCH
Payment & Shipping Terms
Packaging Details: Plastic Case
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 PIECES/Month
Product Description

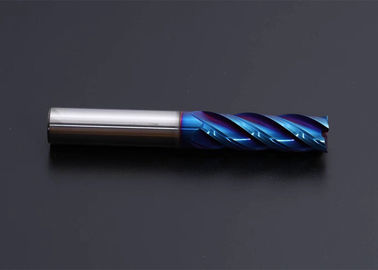

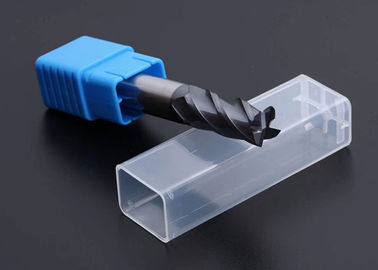

Blue 1/8 Inch Tungsten Carbide End Mill 2 Flute 3 Flute 4 Flute Cutter Long Length Shank



End Mill Coatings

·The use of coatings will increase the surface hardness of the tool. This will allow for greater tool life and faster cutting speed.

·Standard coatings include Titanium Nitride (TiN), Titanium Carbonitride (TiCN), and Aluminum Titanium Nitride (AlTiN).

·Long-life TiN (titanium nitride) coating is good for use on alloy steel, aluminum, and plastic. Color is gold.

·Extra-life TiCN (titanium carbonitride) coating has better wear resistance than TiN coating, making it a good choice for tough-to-machine materials    such as ductile cast iron, stainless steel, aluminum, and plastic. Color is blue-gray.

·Super-life AlTiN (aluminum titanium nitride) coating is the best for very high feeds/speeds and high-temperature applications. Use to mill cast iron, stainless steel, nickel-based alloys, and titanium. Not for use on aluminum. Color is purple-gray.

·The choice to use coated end mills is a cost versus benefit choice. If your machining benefits enough from the extra performance of a premium coating, purchase end mills with a coating.



Product Description



Tungsten Carbide 4 flutes 1/8 inch square end mill are mainly for mold,steel, cast iron, and soft metal machining, The operation of high efficiency 2 flute carbide end milling CNC tools are very easy and high efficiency, the work pieces will be finished in good surface and tolerance.

Also we have design for processing Wood, PCB, SMT, the CNC, plastic, copper, aluminum and other precision parts.

Blue Coating 1/8 Inch Tungsten Carbide End Mill 2 Flute 3 Flute 4 Flute Cutter Long Length Shank 0

Blue Coating 1/8 Inch Tungsten Carbide End Mill 2 Flute 3 Flute 4 Flute Cutter Long Length Shank 1

Blue Coating 1/8 Inch Tungsten Carbide End Mill 2 Flute 3 Flute 4 Flute Cutter Long Length Shank 2



Specification of Tungsten Carbide 4 flutes 1/4 inch square end mill:



Material: Solid tungsten Carbide rods
Product Type: Tungsten Carbide 2 flutes 1/4 inch square end mill
Shank diameter: 1-20mm or customized dimension
Cutting edge diameter: 1-20mm
Total length: 38.5mm-150mm
Degree: different design with different application

Coating: available
Grain size 0.5-0.6um
