Tungsten Carbide Rotary Files Polishing Carbide Die Burr Grinder Bits ODM OEM

5 Piece/Pieces
MOQ
$0.80 - $5.00 / Pieces
Price
Tungsten Carbide Rotary Files Polishing Carbide Die Burr Grinder Bits ODM OEM
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Dock Welding Polishing Rotary File Tool
Material: Tungsten Carbide
Grade: YG8 YG8C, YG11C,YG15C And So On
Color: Sliver/golden
Shape: Cylinder Without Endcut
Shank: 40 Cr
LOGO: Customized
Types: Standard, Conical, Parabolic,ballistic
Certificate: ISO9001:2008
Business Type: Manufacture & Trade Integration
Physical Performance: Good Mechanical & Chemical Stability
High Light:

Polishing carbide die grinder bits

,

Burr Grinder Bits Odm

,

carbide burr bits Odm

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: Custom
Payment & Shipping Terms
Packaging Details: Plastic box in Standard export carton
Delivery Time: 7-15 Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 250000 Piece/Pieces per Month
Product Description

Tungsten Carbide Rotary Files Polishing Carbide Die Burr Grinder Bits ODM OEM

Product Specification

  1. Material: 100% of raw materials.
  2. Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
  3. Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.
  4. Types: standard, conical, parabolic,ballistic
  5. Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.
Product Name: Tungsten Carbide Rotary Files Polishing Carbide Die Burr Grinder Bits ODM OEM
MOQ: 20pcs / Size
Lead Time: 15-25 Days
Specification: Standard Or Customized
Loading Port: Shanghai/ Beijing/ Yiwu/ Guangzhou(Canton)/ Qingdao/ Chengdu
Trading Terms: FCA/ FOB/ CFR/ DAP
Payment Method: TT/ LC / WESTERN UNION
Payment Terms: 30% Deposit Plus Balance / Negotiable



Size Rage of Each Types

  • Head dia 3-35mm
  • Shank dia 3,6.8mm
  • Increase length are ok.

Sets for Tungsten Carbide Rotary Burrs

  • 8 pcs in aluminum sets

  • 8 pcs in plastic sets

  • The items can be selectable according to client demand.

Name Type Cut Material Product Process Head Hardness LOGO
Cylindrical A Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cylindrical End Cut B Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cylindrical Radius End C Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
BALL SHAPE D Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Oval E Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Tree Shape F Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Tree Pointed Ends G Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Flame H Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
60°Cone J Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
90°Cone K Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Taper Radius End L Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cone M Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Inverted Cone N Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA



Customized


Tolerence of Solid Carbide Burrs

  • Head diameter is +0.3 to +0.5mm

  • Head cutting part is +0.5 to 1.0mm

  • Shank diameter is +0 to +0.04mm

  • Totel length is +-0.1mm

Tungsten Carbide Rotary Files Polishing Carbide Die Burr Grinder Bits ODM OEM 0

Application of Tungsten Carbide Grinding Bits


Tungsten Flame carbide rotary burrs sets are more and more widely used in the world for increasing working efficiency to realize the mechanization. It is used mainly as below:
  1. Machining the metal cavity, remove the burrs or welds of steels, cast iron and so on.
  2. Chamfering, rounding, grooving of mechanic parts.
  3. Impeller porting.
  4. Polishing the surface of precision parts.
  5. Engraving arts on metallic or non-metallic parts.

Tungsten Carbide Rotary Files Polishing Carbide Die Burr Grinder Bits ODM OEM 1

Material of Carbide Rotary Flies

The standard tungsten carbide grade is YG8, which is of ware-resistance and high strength.
Composition and physical performance is like below:

  1. Composition is 92% WC and 8% Cobalt.
  2. Density 14.5-14.9 g/cm3.
  3. Hardness: 89 HRA.

Tungsten Carbide Rotary Files Polishing Carbide Die Burr Grinder Bits ODM OEM 2

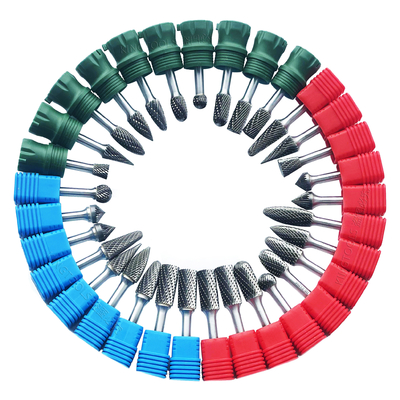

Packaging & Delivery

  • Individual box with blue cap
  • Transparent extended box ( for long shank burr)
  • Each carbide grinding burr will with blue cap

Tungsten Carbide Rotary Files Polishing Carbide Die Burr Grinder Bits ODM OEM 3
