Customized YG8 Tungsten Carbide Burr Bits Grinding Bits Anti Rust

200 Pieces
MOQ
$1.00 - $10.00 / Pieces
Price
Customized YG8 Tungsten Carbide Burr Bits Grinding Bits Anti Rust
Features Gallery Product Description Request A Quote
Features
Specifications
Features: High Wear Resistance,high Hardness And Impact Toughness
Name: YG8 Customized Tungsten Carbide Burr Bits
Material: Tungsten Carbide
Size: Full Size
LOGO: Customized
Trial Order: Acceptable For Any Quantity
Certificate: ISO9001:2008
Grade: YG 8
Highlight:

YG8 Tungsten Carbide Burr Bits

,

YG8 Customized Tungsten Carbide Burr

,

carbide grinding bits anti rust

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001
Model Number: A/B/C
Payment & Shipping Terms
Packaging Details: Plastic box in Standard export carton
Delivery Time: 7-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 250000 Piece/Pieces per Month
Product Description

YG8 Customized Tungsten Carbide Burr Bits Metal Removal Carbide Burrs



1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
5. High wear resistance,high hardness and impact toughness
6. Advanced technology , precise grinding.



How to use the carbide burrs

1.Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500
2.Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3.Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.

Advantage of our carbide burrs



·100% quality and brand new.
·Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
·In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
·High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
·High product processing quality, high finish, can process out a various of high-precision mold cavity.
·Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
·Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
·Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.

Material grade list



Chinese

Grade

Equal to ISO Category Number

chemical

composition

Physical mechanical properties



Application

WC Co Density Bend Strength Hardness
% % g/Cm3 N/mm2 HRA
YG3 K01 96.5-97 3 14.9-15.3 ≥1180 ≥91.0 It is suitable for the finishing of cast iron, non-ferrous metals, alloys and non-metallic materials, and semi-finishing vehicles for intermittent cutting.
YG6X K10 93.5 6 14.8-15.1 1420 92 Finishing of chilled hard alloy cast iron and heat resistant alloy steel and ordinary cast iron
YG6 K20 94 6 14.7-15.1 1600 91 Cast iron, non-ferrous metals and alloys, non-metallic materials, medium to cutting, semi-finishing and finishing.
YG8 K20-K30 92 8 14.5-14.9 1600 90 Suitable for casting of cast iron, non-ferrous metals and their alloys and non-metallic materials.
YG10 K40 90 10 14.3-14.7 1900 89 It is used for large batch production and has excellent strength and toughness.
YG10X K40 89 10 14.3-14.7 2200 89.5 Suitable for small diameter micro drills, end mills, rotary boring tools, etc.
YG15 K30 85 15 13.9-14.2 2100 87 Forging, perforating and stamping tools for steel bars and steel tubes with high compression ratios and working under large stresses
YG20 K30 80 20 13.4-13.7 2500 85.5 Stamping die, stamping watch parts, musical instrument spring piece;
YG20C K40 80 20 13.4-13.7 2200 82 Production of standard parts, bearings, tools and other industries for cold heading, cold punching, cold pressing die, warhead to the shell of the stamping die
YG30   70 30 12.75 2500 82.8 High toughness

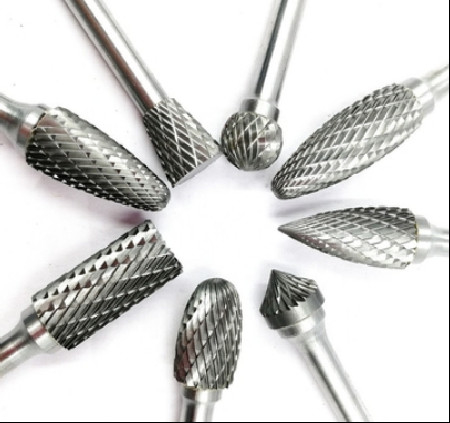

Product display



Customized YG8 Tungsten Carbide Burr Bits Grinding Bits Anti Rust 0
