OEM 6mm Ball End Mill Engraving Woodworking Tungsten Carbide Milling Bits

OEM 6mm Ball End Mill Engraving Woodworking Tungsten Carbide Milling Bits

Brand Name:	KINGTOOLS
Model Number:	R1.563*50
MOQ:	100pcs
Price:	$1-20
Payment Terms:	L/C, , T/T, Western Union, MoneyGram
Supply Ability:	20000PCS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

SICHUAN, CHINA

Certification:

ISO 9001

Product Name:

Carbide End Mill

Type:

End Mill,Square,standard

Diameter:

1.0mm To 22.0mm,D 1 - 25mm

Hrc:

45/55/60/65 HRC

Suitable For:

Carbon Steel,Stainless Steel,copper

Precision:

High Precision,ISO Standard

Flutes:

1-10F

Oem:

Acceptable

Packaging Details:

Platic box & carton

Highlight:

OEM 6mm ball end mill

Engraving ball nose 6mm

Woodworking tungsten carbide milling bits

Product Description

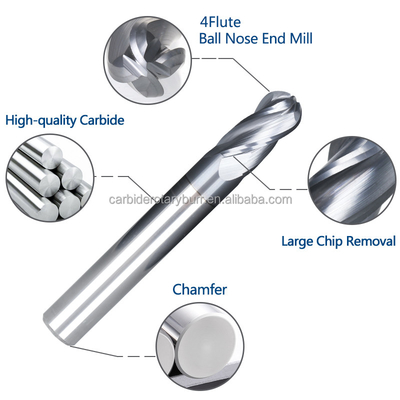

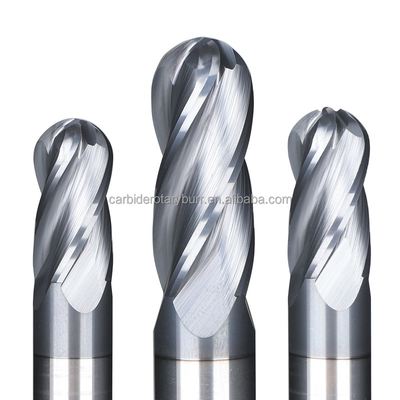

OEM Engraving Tungsten Carbide Milling Cutters 6 mm ball nose End Mill for Woodworking CNC Tool

Specifications:

Product Name	Carbide Ball Nose End Mills
Material	100% New Raw Material Carbide
Flute	1 / 2 / 4 / 6 /7 /8 /9 /12 Flutes
HRC	45 / 55 / 58 / 60 / 65 /70
Customized	Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization.
Coating Thickness	2um-4um
Shank Diameter	1mm-20mm
Overall Length	50mm-200mm
Application	General-purpose operation Slotting, Drilling, Profiling
Working Machine	CNC (computer numeric controlled) tool and cutter grinder machines
Work-piece material	Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze etc.

About Coatings:

Endmill Grade	Coating Name	Color	Hv	μm	Friction	The MaxºC	Application
HRC 45° coating	AlTiN	black	3300	0.6	0.7	850ºC	Suitable for General Steel
HRC 50° coating	AlTiN	black	3300	0.6	0.7	850ºC	Suitable for General Steel
HRC 55° coating	TiSiAlN	bronzed	3400	0.5	0.7	900ºC	General Steel,cast cast iron
HRC 60° coating	AlCrSiN	black	4000	0.4	0.35	1100ºC	High Hard Material, steel, cast iron, etc
HRC 65° coating	nACo 3 Blue	blue	4500	0.4	0.45	1200ºC	Titanium Alloy, High-temperature Alloy,material, etc
HSS	nACo 3 Blue	Other	4500	0.4	0.45	1200ºC	Stainless steel
Free Sample Test : Contact Us For Inquiry

Product Catalog:

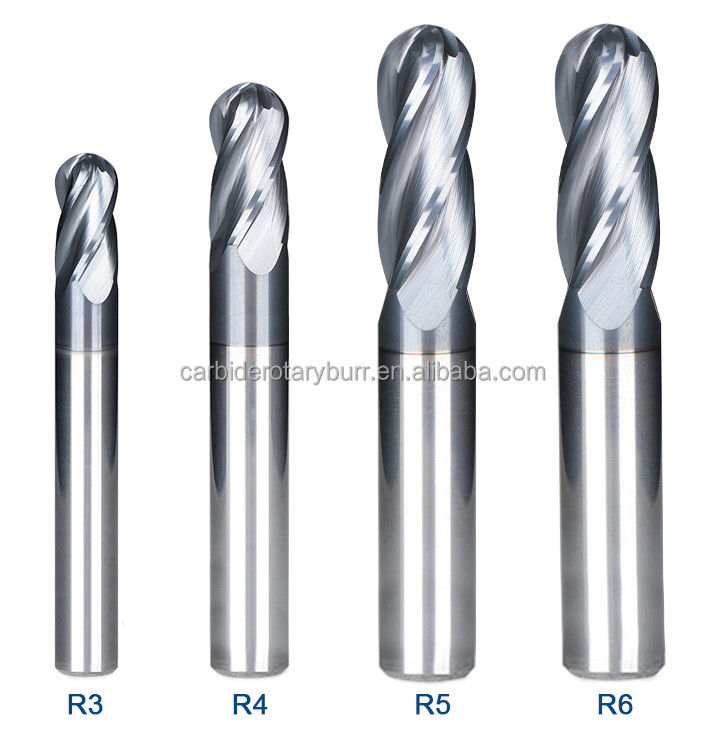

Product Sizes:

Specification	Flute Dia.	Flute Length	Shank Dia.	Overall length
R1.563*50	3	6	3	50
R1.563*75	3	6	3	75
R1.563*100	3	6	3	100
R0.524*50	1	2	4	50
R0.7534*50	1.5	3	4	50
R144*50	2	4	4	50
R1.2554*50	2.5	5	4	50
R1.564*50	3	6	4	50
R1.7574*50	3.5	7	4	50
R284*50	4	8	4	50
R284*75	4	8	4	75
R284*100	4	8	4	100
R0.524*75	1	2	4	75
R0.7534*75	1.5	3	4	75
R144*75	2	4	4	75
R1.2554*75	2.5	5	4	75
R1.564*75	3	6	4	75
R2.5105*50	5	10	5	50
R2.5105*75	5	10	5	75
R2.5105*100	5	10	5	100
R0.526*50	1	2	6	50
R0.7536*50	1.5	3	6	50
R146*50	2	4	6	50
R1.2556*50	2.5	5	6	50
R1.566*50	3	6	6	50
R286*50	4	8	6	50
R2.5106*50	5	10	6	50
R3126*50	6	12	6	50
R3126*75	6	12	6	75
R3126*100	6	12	6	100
R3126*150	6	12	6	150
R3.5148*60	7	14	8	60
R4168*60	8	16	8	60
R4168*75	8	16	8	75
R4168*100	8	16	8	100
R4168*150	8	16	8	150
R4.51810*75	9	18	10	75
R52010*75	10	20	10	75
R52010*100	10	20	10	100
R52010*150	10	20	10	150
R5.52212*75	11	22	12	75
R62412*75	12	24	12	75
R62412*100	12	24	12	100
R62412*150	12	24	12	150
R72814*80	14	28	14	80
R72814*100	14	28	14	100
R72814*150	14	28	14	150
R83216*100	16	32	16	100
R83216*150	16	32	16	150
R93618*100	18	36	18	100
R93618*150	18	36	18	150
R104020*100	20	40	20	100
R104020*150	20	40	20	150

Remarks: The milling cutter model marked with color is a common model.

Production Process:

OEM 6mm Ball End Mill Engraving Woodworking Tungsten Carbide Milling Bits 1

Package & Shipping:

Our Advantages:

Suitable for finishing,can achieve the mirror effect.
coating increase surface gloss,and prolonging life.
100% quality guarantee (ISO9001)
Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
