Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6

Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6

Brand Name:	KINGTOOLS
Model Number:	R1.563*50
MOQ:	100pcs
Price:	$1-20
Payment Terms:	L/C, , T/T, Western Union, MoneyGram
Supply Ability:	20000PCS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

SICHUAN, CHINA

Certification:

ISO 9001

Product Name:

Tungsten Carbide Carbide End Mill

Type:

Ball Nose End Mill

Diameter:

1.0mm To 22.0mm,D 1 - 25mm

Hrc:

45/55/60/65 HRC

Suitable For:

Carbon Steel,Stainless Steel,copper

Precision:

High Precision,ISO Standard

Flutes:

1-10F

Oem:

Acceptable

Packaging Details:

Platic box & carton

Highlight:

ball nose router bit R3

ball nose drill bit 45HRC

ball nose cnc 4 Flute

Product Description

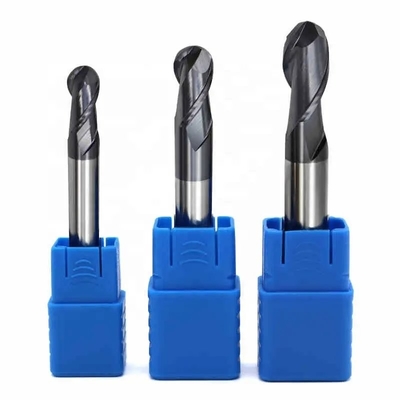

Milling Cutter 4 Flute Ball Nose Carbide End Mill 45HRC R3 R4 R5 R6 CNC

Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6 0

Specifications:

Product Name	Carbide Ball Nose End Mills
Material	100% New Raw Material Carbide
Flute	1 / 2 / 4 / 6 /7 /8 /9 /12 Flutes
HRC	45 / 55 / 58 / 60 / 65 /70
Customized	Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization.
Coating Thickness	2um-4um
Shank Diameter	1mm-20mm
Overall Length	50mm-200mm
Application	General-purpose operation Slotting, Drilling, Profiling
Working Machine	CNC (computer numeric controlled) tool and cutter grinder machines
Work-piece material	Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze etc.

About Coatings:

Endmill Grade	Coating Name	Color	Hv	μm	Friction	The MaxºC	Application
HRC 45° coating	AlTiN	black	3300	0.6	0.7	850ºC	Suitable for General Steel
HRC 50° coating	AlTiN	black	3300	0.6	0.7	850ºC	Suitable for General Steel
HRC 55° coating	TiSiAlN	bronzed	3400	0.5	0.7	900ºC	General Steel,cast cast iron
HRC 60° coating	AlCrSiN	black	4000	0.4	0.35	1100ºC	High Hard Material, steel, cast iron, etc
HRC 65° coating	nACo 3 Blue	blue	4500	0.4	0.45	1200ºC	Titanium Alloy, High-temperature Alloy,material, etc
HSS	nACo 3 Blue	Other	4500	0.4	0.45	1200ºC	Stainless steel
Free Sample Test : Contact Us For Inquiry

Product Catalog:

Product Sizes:

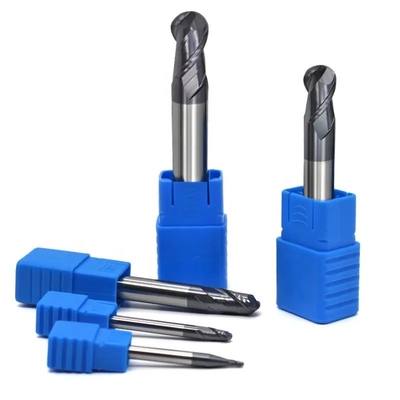

Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6 2

Product Aplication:

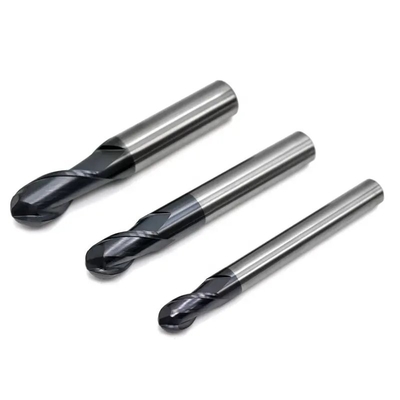

Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6 3

Production Process:

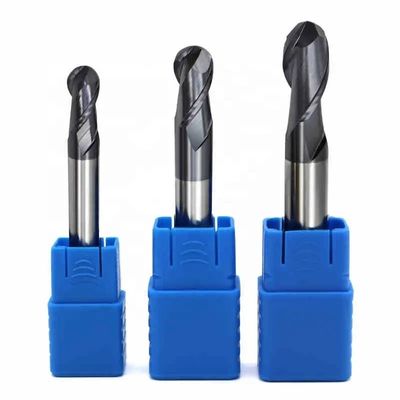

Milling Cutter 4 Flute Ball Nose CNC Router Bit Carbide End Mill 45HRC R3 R4 R5 R6 4

Package & Shipping:

Our Advantages:

Suitable for finishing,can achieve the mirror effect.
coating increase surface gloss,and prolonging life.
100% quality guarantee (ISO9001)
Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
