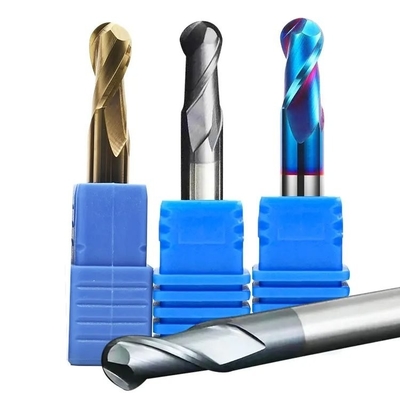

4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters

100pcs
MOQ
$1-20
Price
4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Carbide Ball Nose End Mill
Coating: AlTiN,TiAIN,TiN,NANO,DLC
Hrc: HRC 40 To HRC 68
Diameter: 1.0mm To 22.0mm,D 1 - 25mm
Overall Length: 50-150mm
Application: Milling Machining,CNC Process
Flutes: 1-10F
Transport: TNT\DHL\ Fedex\ EMS\ UPS
Oem: OEM Is Hot Welcome
High Light:

6mm ball nose router bit

,

8mm CNC ball nose router bits

,

4mm coating Milling Cutters
Basic Infomation
Place of Origin: SICHUAN, CHINA
Brand Name: KINGTOOLS
Certification: ISO 9001
Model Number: HRC45° 55° 65° End Mill
Payment & Shipping Terms
Packaging Details: Platic box & carton
Delivery Time: 7-15
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 20000PCS PER MONTH
Product Description

OEM 4 6 8 mm CNC Ball Nose HRC55 coating End Mills Tungsten Carbide End Mill



4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters 0



Product ​Specifications:

Product Name
Carbide Ball Nose End Mills
Material
100% New Raw Material Carbide
Flute
1 / 2 / 4 / 6 /7 /8 /9 /12 Flutes
HRC
45 / 55 / 58 / 60 / 65 /70
Customized
Our factory supports Size, Coating, Shape, Logo, Sample Test etc. customization.
Coating Thickness
2um-4um
Shank Diameter
1mm-20mm
Overall Length
50mm-200mm
Application
General-purpose operation Slotting, Drilling, Profiling
Working Machine
CNC (computer numeric controlled) tool and cutter grinder machines
Work-piece material
Stainless Steel, Carbon Steel, Aluminum, Cast Iron, Alloyed Metal, Brass, Bronze etc.




About Coatings:



Endmill Grade
Coating Name
Color
Hv
μm
Friction
The MaxºC
Application
HRC 45° coating
AlTiN
black
3300
0.6
0.7
850ºC
Suitable for General Steel
HRC 50° coating
AlTiN
black
3300
0.6
0.7
850ºC
Suitable for General Steel
HRC 55° coating
TiSiAlN
bronzed
3400
0.5
0.7
900ºC
General Steel,cast cast iron
HRC 60° coating
AlCrSiN
black
4000
0.4
0.35
1100ºC
High Hard Material, steel, cast iron, etc
HRC 65° coating
nACo 3 Blue
blue
4500
0.4
0.45
1200ºC
Titanium Alloy, High-temperature Alloy,material, etc
HSS
nACo 3 Blue
Other
4500
0.4
0.45
1200ºC



Stainless steel
Free Sample Test : Contact Us For Inquiry





Product details:

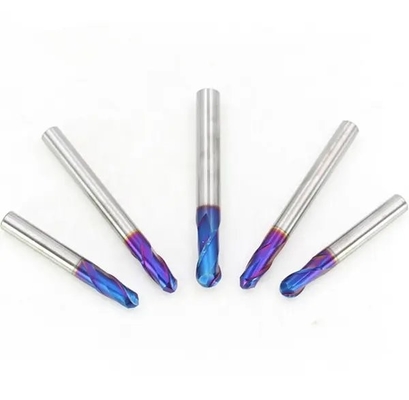

4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters 1





Product Catalog:

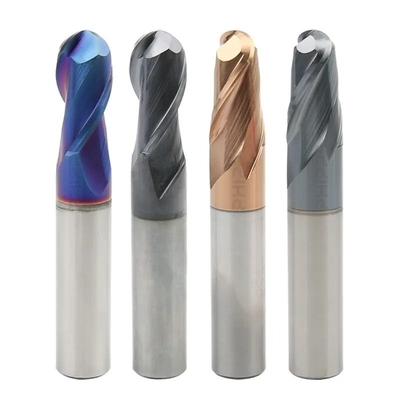

4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters 2

Product Sizes:



Specification
Flute Dia.
Flute Length
Shank Dia.
Overall length
R1.5*6*3*50
3
6
3
50
R1.5*6*3*75
3
6
3
75
R1.5*6*3*100
3
6
3
100
R0.5*2*4*50
1
2
4
50
R0.75*3*4*50
1.5
3
4
50
R1*4*4*50
2
4
4
50
R1.25*5*4*50
2.5
5
4
50
R1.5*6*4*50
3
6
4
50
R1.75*7*4*50
3.5
7
4
50
R2*8*4*50
4
8
4
50
R2*8*4*75
4
8
4
75
R2*8*4*100
4
8
4
100
R0.5*2*4*75
1
2
4
75
R0.75*3*4*75
1.5
3
4
75
R1*4*4*75
2
4
4
75
R1.25*5*4*75
2.5
5
4
75
R1.5*6*4*75
3
6
4
75
R2.5*10*5*50
5
10
5
50
R2.5*10*5*75
5
10
5
75
R2.5*10*5*100
5
10
5
100
R0.5*2*6*50
1
2
6
50
R0.75*3*6*50
1.5
3
6
50
R1*4*6*50
2
4
6
50
R1.25*5*6*50
2.5
5
6
50
R1.5*6*6*50
3
6
6
50
R2*8*6*50
4
8
6
50
R2.5*10*6*50
5
10
6
50
R3*12*6*50
6
12
6
50
R3*12*6*75
6
12
6
75
R3*12*6*100
6
12
6
100
R3*12*6*150
6
12
6
150
R3.5*14*8*60
7
14
8
60
R4*16*8*60
8
16
8
60
R4*16*8*75
8
16
8
75
R4*16*8*100
8
16
8
100
R4*16*8*150
8
16
8
150
R4.5*18*10*75
9
18
10
75
R5*20*10*75
10
20
10
75
R5*20*10*100
10
20
10
100
R5*20*10*150
10
20
10
150
R5.5*22*12*75
11
22
12
75
R6*24*12*75
12
24
12
75
R6*24*12*100
12
24
12
100
R6*24*12*150
12
24
12
150
R7*28*14*80
14
28
14
80
R7*28*14*100
14
28
14
100
R7*28*14*150
14
28
14
150
R8*32*16*100
16
32
16
100
R8*32*16*150
16
32
16
150
R9*36*18*100
18
36
18
100
R9*36*18*150
18
36
18
150
R10*40*20*100
20
40
20
100
R10*40*20*150
20
40
20
150
Remarks: The milling cutter model marked with color is a common model.







Production Process:



4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters 3





Package & Shipping:

4 6 8 Mm HRC55 45 65 CNC Ball Nose Router Bits Milling Cutters 4



Our Advantages:

Suitable for finishing,can achieve the mirror effect.
coating increase surface gloss,and prolonging life.
100% quality guarantee (ISO9001)
Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
