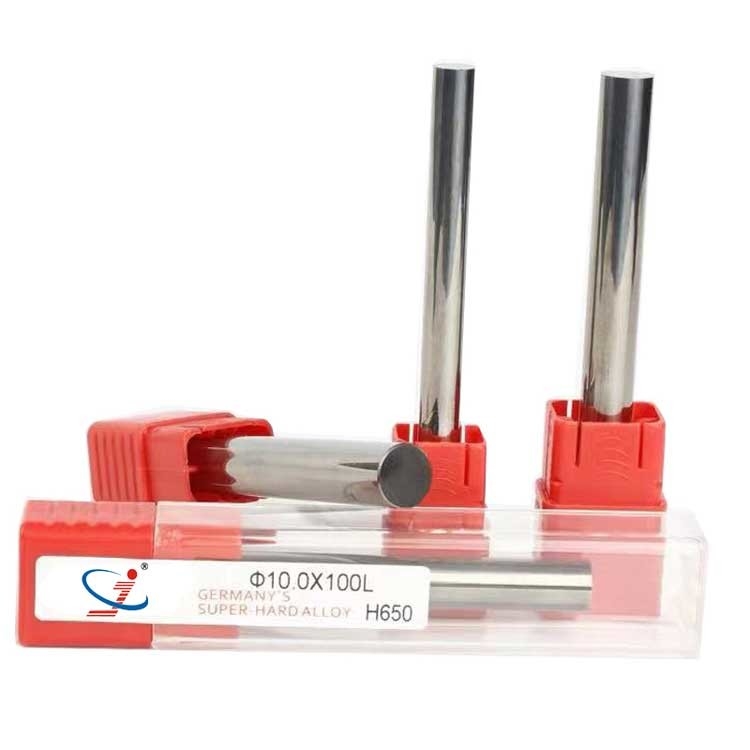

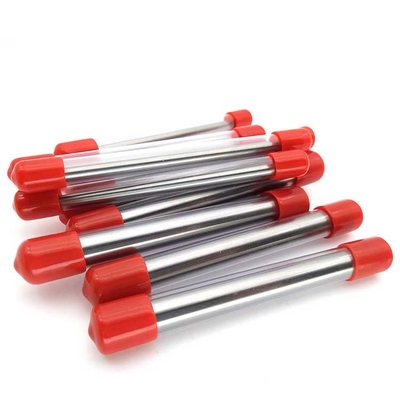

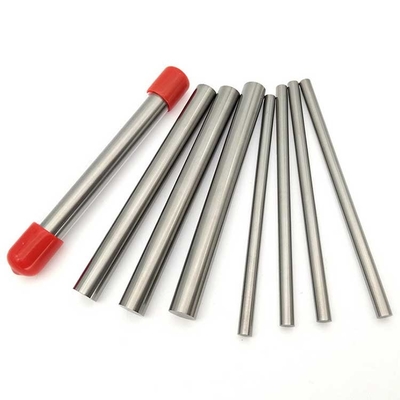

Carbide Rods For Processing Tungsten Carbide Rod Blank With Central Coolant Holes

Name: Carbide Rods For Processing Tungsten Carbide Rod Blank With Central Coolant Holes
Brand: JOINT CARBIDE CO., LTD.
SKU: HRC45 55 60
Price: 75.00 USD
Availability: InStock

Brand Name:	KING TOOLS
Model Number:	HRC45 55 60
MOQ:	10 Kilograms
Price:	50-100USD/ Kilograms
Payment Terms:	L/C,T/T,Western Union,
Supply Ability:	10000 Pieces/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan, China

Certification:

ISO9001:2008

Co Content:

10%

Bending Strength:

≥4000 N/mm²

Density:

14.2-15.1 G/cm³

Hardness HRA:

92-92.5

WC Grain Size:

0.3-2 μm

Diameter Range:

2-30 Mm

Packaging Details:

Platic box & carton

Highlight:

Processing Tungsten Carbide Rod Blank

Tungsten Carbide Rod Blank

Central Coolant Holes Carbide Rods

Product Description

Product Overview

Carbide rods for processing tungsten carbide rod blanks with central coolant holes are precision-engineered components designed for high-performance machining applications. These rods feature an internal coolant channel that enables efficient heat dissipation during cutting operations, extending tool life and improving surface finish quality.

Product Specifications

WC grain size range: 0.3–2 µm
Diameter range: 2–30 mm
Length range: 10–335 mm

Performance of Different Grades

Grade	Density (g/cm³)	Hardness (HRA)	T.R.S (N/mm²)	Performance & Recommended Uses
JC06F (ZK10UF)	14.9–15.1	≥92.5	≥3600	Suitable for making all kinds of integral cemented carbide tool materials. Used for machining chilled cast iron, heat-resistant alloy steel, plastic, and carbon fiber.
JC10F (ZK30UF)	14.40–14.6	≥92.0	≥3800	Integral cemented carbide tool material with balanced wear resistance and toughness. Used for machining chilled cast iron, heat-resistant alloy steel, plastic, and carbon fiber. Can also be used as substrate material for coated cutters.
JC12F (ZK40UF)	14.2–14.4	≥92.0	≥4000	Integral hard alloy tool material with high wear resistance and toughness. Used for processing a variety of difficult-to-machine materials such as high-temperature alloys, stainless steel, and high die steel.

Grade Applications

Grade	Recommended Application
UBT05	Drill, endmill, and burr are recommended. Especially suitable for cutting non-ferrous metal and graphite (coating is required).
UBT10	Ultrafine grain size with good wear resistance. Higher wear-resistant endmill and engraving tools are recommended. Suitable for cutting PCB and plastic.
UBT20F	Drill and endmill are recommended. Suitable for cutting general steel (HRC < 48), grey cast iron, stainless steel, and heat-resistant alloy.
UBT20	Drill and endmill are recommended. Suitable for cutting stainless steel, heat-resistant alloy, and cast iron.
UBT25	Ultrafine grain size with high cobalt content, offering excellent hardness and toughness. Endmill and reamer are recommended, especially suitable for cutting steel (HRC 45–55), aluminum alloy, and titanium alloy.
UBT30	Suitable for making punching moulds, tools, and anti-vibration boring bars.

Standard Dimensions

Diameter D (mm)	Tolerance (mm)	Length L (mm)	Tolerance of L (mm)
0.3	h6	330	0 ~ +1.5
0.5	h6	330	0 ~ +1.5
0.7	h6	330	0 ~ +1.5
0.9	h6	330	0 ~ +1.5
1.0	h6	330	0 ~ +1.5
1.2	h6	330	0 ~ +1.5
1.4	h6	330	0 ~ +1.5
1.5	h6	330	0 ~ +1.5
1.6	h6	330	0 ~ +1.5
1.7	h6	330	0 ~ +1.5
1.8	h6	330	0 ~ +1.5
1.9	h6	330	0 ~ +1.5
2.0	h6	330	0 ~ +1.5

About Us

Zigong Joint Carbide Co., Ltd. is located at No. 8, Huicai Road, High-tech Industrial Park, Yantan District, Zigong City, Sichuan Province. With 13 years of industry experience and a facility covering nearly 20,000 square meters, the company is a high-tech enterprise (Certificate No. GR201951000516) specializing in the sale of hard alloy products and hard alloy rotary file tools. The company is committed to providing high-precision, high-speed, and efficient metal polishing overall solutions and services for the machinery manufacturing industry.

The company has introduced the most advanced five-axis five-link CNC tool grinder, three-coordinate tool detector, and other equipment from Germany to produce high-quality, internationally competitive products. Today, the company has become China's largest rotary file production base, with a mature R&D team and management team in China, as well as a stable supply chain. As a metal cutting tool, rotary files have been exported to more than 50 countries around the world.
