Double Cut Carbide Burrs Tungsten Carbide Rotary Files for Metal Grinding

Brand Name:	KINGTOOLS
Model Number:	Type A-N
MOQ:	10
Price:	$2.99-5.99

Detail Information

Product Description

Detail Information

Place of Origin:

China

Shank Diameter:

3, 6, 8, 10, 12, 14, 16 Mm

Head Diameter:

3-25 Mm

Head Length:

6-36 Mm

Overall Length:

38-81 Mm

Material:

Tungsten Carbide

Chipbreaker:

Single/Double/Aluma/Diamond Cut

No-load Speed:

15000-45000 RPM

Max Drilling Diameter:

25 Mm

Shank Hardness:

HRA 89-92.5

Speed Range:

25000-35000 RPM

Grade:

YG6, YG7

Workpiece Compatibility:

Steel/Stainless Steel/Alloy Steel/Cast Iron/Plastic/Wood

Processing Hardness:

Up To HRC70

Shank Types:

3.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm

Cut Types:

Single-cut, Double-cut, Aluma-cut, Standard-cut

Highlight:

double cut carbide burrs for metal

tungsten carbide rotary files

carbide burrs with double cut

Product Description

Customized High Quality Power Tools Parts Gold Coated Electric Hardware Grinding Tool Yellow Coating Tungsten Carbide Burrs

Product Specifications

Attribute	Value
Grade	DIY, Industrial
Drill Type	Impact Drill, Mini Drill, Rotary Hammer Drill, HAMMER DRILL, Cordless Drill, Brushless Drill
Number Of Speeds	Variable Speed
Power Source	Battery
Customized Support	OEM, ODM, OBM
Motor Type	All
No-load Speed	15000-45000RPM
Max. Drilling Diameter	25mm
Shank Diameter	3, 6, 8, 10, 12, 14, 16 mm...
Material	Tungsten Carbide
Head Diameter	3-25 mm
Chipbreaker	Single/Double/Aluma/Diamond Cut
Head Length	6-36 mm
Workpiece	Steel/Stainless steel/Alloy steel/Cast iron/Plastic/Wood etc.
Overall Length	38-81mm

Product Overview

We are a factory with 20 years of experience in the production and development of cemented carbide tools. Our brand KINGTOOLS offers high-quality tungsten carbide burrs with HRA 89-92.5 hardness shanks, made from 100% new raw materials.

Key Advantages

100% quality and brand new materials
Can process various metals and non-metals with hardness up to HRC70
High production efficiency - several times higher than files, nearly 10 times higher than small wheel stalks
Produces high-precision mold cavities with excellent finish
Long lifespan - 10x more durable than high-speed steel cutting tools, 200x more than small grinding wheels
Easy to use, safe, and reduces labor intensity
Suitable for cast iron, steel, alloys, bronze, brass, ceramics, marble, and more
Widely used in shipping construction, auto engine porting, and foundry fabrication

Recommended Operating Speeds

For optimal performance, we recommend these rotation speeds (RPM):

1.6mm or 1/16": 25,000 - 35,000 RPM
2.35mm or 3/32": 25,000 - 35,000 RPM
3mm or 1/8": 25,000 - 35,000 RPM
6mm or 1/4": 25,000 - 35,000 RPM
12mm or 1/2": 25,000 - 35,000 RPM
16mm or 5/8": 25,000 - 35,000 RPM

Note: If you place an order without specifying model, quantity and tooth type, we will send SF-5 by default.

Customization Options

We offer comprehensive customization services:

100% solid high quality flat bottom silver welding with disposable tungsten carbide material
Custom head diameter, toothing, shank length and diameter
Custom product models, packaging, logos, labels, and coatings

Our Manufacturing Capabilities

As China's largest cemented carbide manufacturer, we export to 50 countries with:

4 factories covering 20,000 square meters each
Factory-direct pricing
Quality matching ATA PFERD standards
Advanced German CNC tool grinders and inspection equipment
300 five-axis five-linkage rotary grinders by 2023

Product Variants

We offer a comprehensive range of carbide burr shapes:

SA: Cylinder Shape Burrs

A0616MX06-45 A0820MX06-45 A1020MX06-45 A1225MX06-45 A1625MX06-45 A2025MX06-45 A2525MX06-45

SB: Cylinder Shape with End Cut Burrs

B0616MX06-45 B0820MX06-45 B1020MX06-45 B1225MX06-45 B1625MX06-45 B2025MX06-45 B2525MX06-45

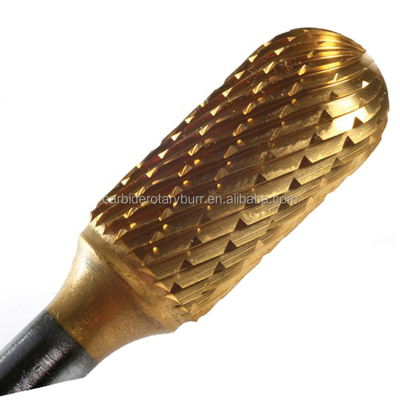

SC: Cylinder Shape with Radius End Burrs

C0616MX06-45 C0820MX06-45 C1020MX06-45 C1225MX06-45 C1625MX06-45 C2025MX06-45 C2525MX06-45

SD: Ball Shape Burrs

D0605MX06-45 D0807MX06-45 D1009MX06-45 D1210MX06-45 D1614MX06-45 D2018MX06-45 D2521MX06-45

SE: Oval Shape Burrs

E0610MX06-45 E0813MX06-45 E1016MX06-45 E1220MX06-45 E1625MX06-45 E2025MX06-45

SF: Tree Shape with Radius End Burrs

F0618MX06-45 F0820MX06-45 F1020MX06-45 F1225MX06-45 F1625MX06-45 F2032MX06-45 F2525MX06-45

SG: Tree Shape with Pointed End Burrs

G0618MX06-45 G0820MX06-45 G1020MX06-45 G1225MX06-45 G1625MX06-45 G1825MX06-45 G1925MX06-45

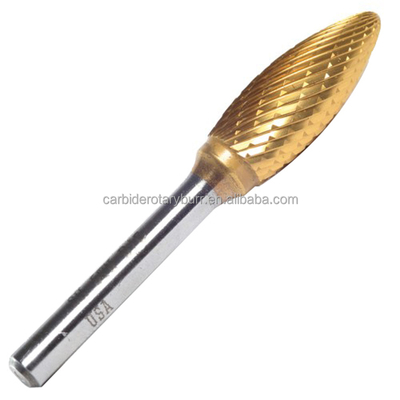

SH: Flame Shape Burrs

H0618MX06-45 H0820MX06-45 H1025MX06-45 H1232MX06-45 H1636MX06-45 H1941MX06-45

SJ: 60 Cone Shape Burrs

J0603MX06-45 J0804MX06-45 J1005MX06-45 J1206MX06-45 J1608MX06-45 J2512MX06-45 J3517MX06-45

SK: 90 Cone Shape Burrs

K0603MX06-45 K0804MX06-45 K1005MX06-45 K1206MX06-45 K1608MX06-45 K2512MX06-45 K3517MX06-45

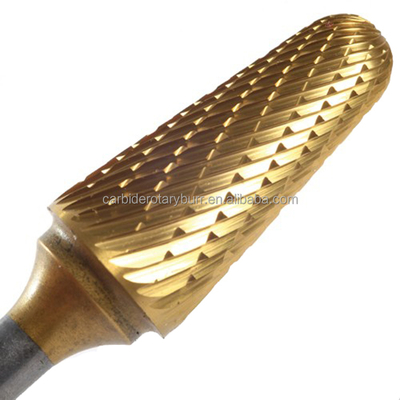

SL: Taper with Radius End Burrs

L0616MX06-45 L0822MX06-45 L1025MX06-45 L1228MX06-45 L1633MX06-45 L2031MX06-45

SM: Cone Shape Burrs

M0618MX06-45 M0820MX06-45 M1020MX06-45 M1225MX06-45 M1625MX06-45 M1925MX06-45

SN: Inverted Cone Shape Burrs

N0607MX06-45 N0809MX06-45 N1010MX06-45 N1213MX06-45 N1616MX06-45

ST: RAR Burrs

RAR0607MX06-45 RAR0809MX06-45 RAR1010MX06-45 RAR1213MX06-45 RAR1616MX06-45

Shank Diameter Options

3.0mm /3.17mm (1/8") Shank: For head diameter 1.0-6.0mm
6.0mm /6.35mm (1/4") Shank: For head diameter 6.0-25.0mm
8.0mm /7.93mm (5/16") Shank: For head diameter 12.0-25.0mm
10.0mm /9.52mm (3/8") Shank: For head diameter 16.0-25.0mm
12.0mm /12.7mm (1/2") Shank: For various applications

Cut Types and Applications

Head diameter range: 3mm-25mm (1/8"-1")

Single-cut burs: General purpose with good material removal
Double-cut burs: Produce smaller chips for better control on stainless steels

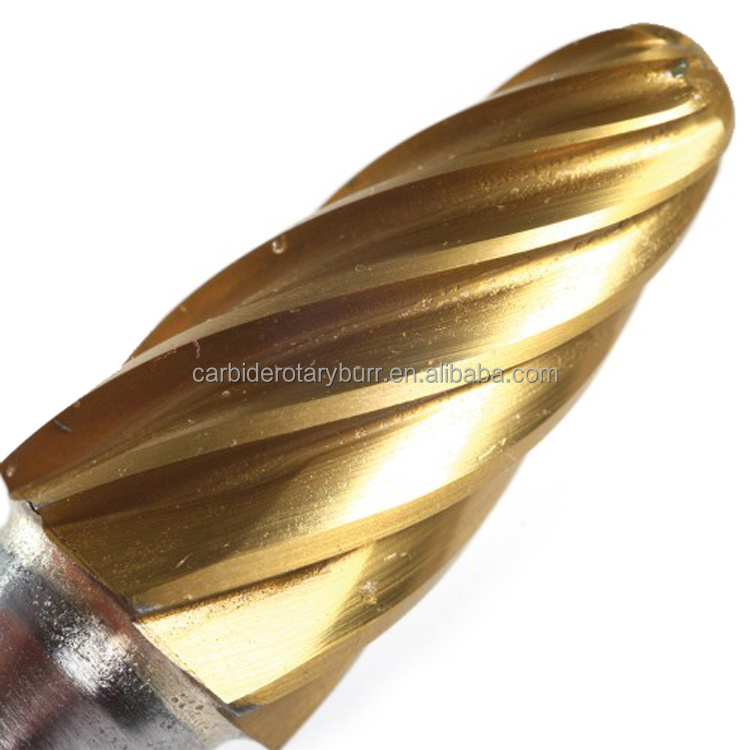

Aluma-cut burs: Wide flute design prevents loading on nonferrous materials
Standard-cut burs: Widely used with fine finish

Company Profile

We are committed to providing high-precision, high-speed metal polishing solutions for the machinery manufacturing industry. With advanced German CNC equipment, we've become China's largest rotary file production base, exporting to Europe, North America, South America and Southeast Asia.

Packing & Shipping

Frequently Asked Questions

Q1: Are you a factory or trading company?
A1: We are China's largest cemented carbide factory with 23+ years experience in R&D, production and sales.

Q2: What products do you sell?
A2: Tungsten carbide rotary file burrs, blanks, tire files, milling cutters, bars, and semi-finished products.

Q3: How do you ensure quality?
A3: Double inspection (human + robot) before shipment with video/picture documentation.

Q4: When can I get pricing?
A4: Sales manager provides quotes within 2 hours of inquiry.

Q5: How to get samples?
A5: Contact us for free samples of any model.

Q6: What are your sales models?
A6: We supply major e-commerce platforms including Amazon, eBay, AliExpress.

Q7: What shipping methods?
A7: Express, air and sea via DHL, UPS, TNT, FEDEX based on weight.
