120mm Long Shank Double Cut Tungsten Carbide Rotary Burrs for Deep Hole Metal Processing Die Grinder Bits

120mm Long Shank Double Cut Tungsten Carbide Rotary Burrs for Deep Hole Metal Processing Die Grinder Bits

Brand Name: KINGTOOLS
Model Number: SA-SN
MOQ: 100 pcs
Price: CN¥8.36-27.79
Payment Terms: T/T
Supply Ability: >300000 Pieces per Month
Detail Information
Place of Origin:
Sichuan, China
Certification:
ISO9001-2008
Product Name:
Tungsten Carbide Burrs
Material:
100% Pure Tungsten Carbide
Cutting Diameter:
1/4" 1/8" 1/12"
Processing Hardness:
HRA85-90
Application Direction:
Metal Deburring, Polishing, Etc
Cut Type:
Double Cut/Aluminum Teeth
Handle Length:
120mm
Packaging Details:
Plastic or aluminum box
Product Description

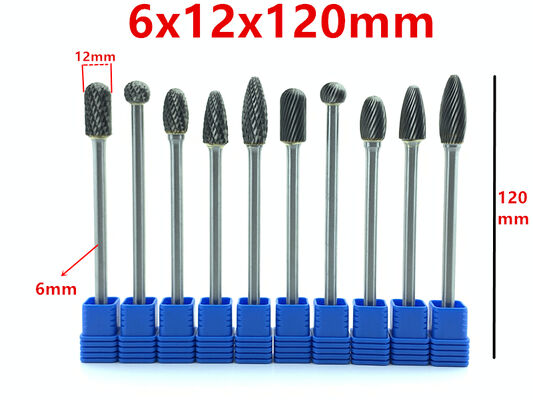

Long Shank 120mm 6" Tungsten Carbide Rotary Burrs Double Cut Die Grinder Bits for Deep Hole Metal Processing Automotive Mold
Product Overview

Tungsten Carbide Rotary Burrs Set with 1/4" 6mm Shank Double Cut Carbide Burrs for Die Grinder Bit Metal Polishing Milling Cutter. Sintered Tungsten Carbide Rotary File Metal Deburring 1/4" Shank Polished Burrs OEM Customizable.

KINGTOOLS Tungsten Carbide Rotary Burrs
Applications
  • Finish machining various kinds of die cavities
  • Removing burrs from castings, forgings, and welding spatter
  • Chamfering angle, circular bead or flute on mechanical components
  • Chamfering or burring pipes
  • Polishing impeller channels
  • Grinding holes to accurate shapes
Tungsten Carbide Burrs Applications
Technical Specifications
Parameter Specifications
Head Diameter 2.35mm, 3mm, 6mm, 6.35mm, 8mm, 10mm, 12mm, 12.7mm, 14mm, 16mm, 20mm, 25mm
Shank Diameter 3mm, 6mm, 8mm
Tolerances Head diameter: +0.3 to +0.5mm, Head cutting part: +0.5 to +1.0mm, Shank diameter: +0 to +0.04mm, Total length: ±0.1mm
Set Configurations 3, 5, 6, 8, 10, 12, or 14-piece sets in aluminum cases or plastic sets
Applications Milling, weld dressing, deburring, cutting holes, surface work, precision machining
Carbide Burrs Technical Specifications
Detailed Specifications
We only produce carbide burrs and strive to do well with quality and price advantages!
Dimension Range
Head Diameter 1/8"-1" (3-25 mm)
Head Length 1/8"-127⁄64in (3-36 mm)
Shank Diameter 1/8"-15/32" (3mm-12mm)
Overall Length 38mm-81mm
Handle Length Conventional 45mm
Carbide Burrs Quality Assurance
Burr Shapes & Options

KINGTOOLS Welding Technology: 100% Flat bottom silver welding tungsten carbide burrs (R-Handle/Step-Hand/Overall Alloy)

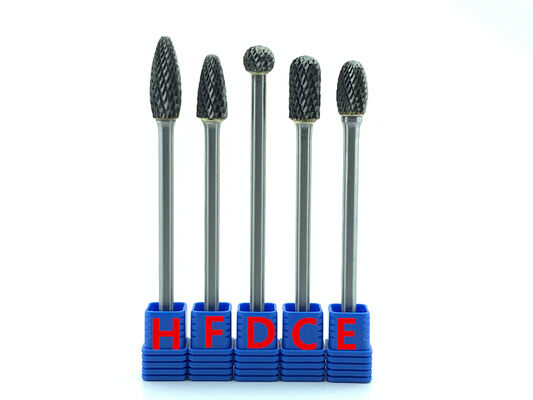

Burr Shapes: SA: Cylinder, SB: Cylinder with End Cut, SC: Cylinder with Radius End, SD: Ball, SE: Oval, SF: Tree with Radius End, SG: Tree with Pointed End, SH: Flame, SJ: 60 Cone, SK: 90 Cone, SL: Taper with Radius End, SM: Cone, SN: Inverted Cone, ST: RAR Burrs

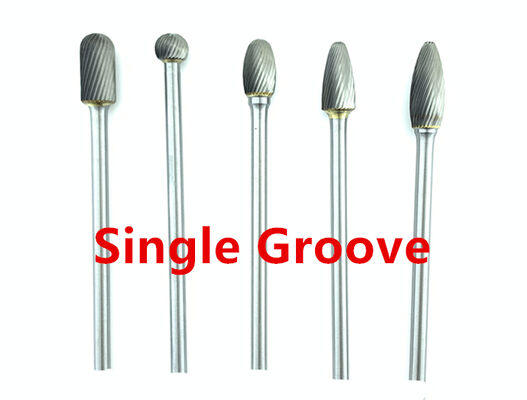

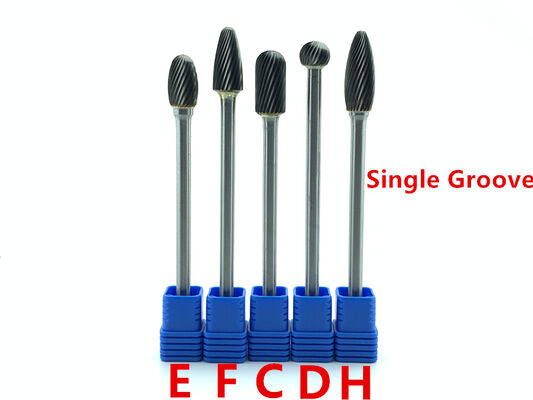

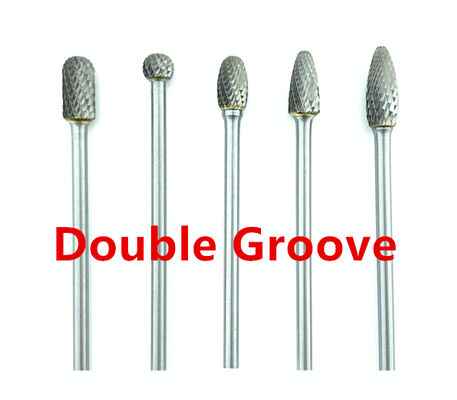

Available Options: Long Shank Burrs | Miniature & Regular Sizes | Single cut & Double cut | Aluminum Cut & Diamond Cut & Coarse Cut & Customed

Carbide Burrs Sets: 4pcs/5pcs/6pcs/8pcs/10pcs/20pcs | (1/8"Shank Dia) 3X3mm Carbide Burrs Set | (1/4"Shank Dia) 3X6mm Carbide Burrs Set | Customed Burrs Set
