Double Cut Tungsten Carbide Rotary Burrs ISO9001 Certified for Metal and Woodworking

Double Cut Tungsten Carbide Rotary Burrs ISO9001 Certified for Metal and Woodworking

Brand Name:	KTS
Model Number:	SB
MOQ:	10 Piece/Pieces
Price:	$1-$10/Piece
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	250000 Piece/Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan, China

Certification:

ISO9001:2008

Type:

Cutting Tools Part

Product Name:

Tungsten Carbide Rotary Burrs

Material:

Tungsten Carbide

Grade:

YG6/YG8/YG10

Size:

Full Size

Type Of Cut:

Standard Double-cut,fine Cut,fine Double-cut,etc.

Shank:

40 CrMo

LOGO:

Customized

Certificate:

ISO9001:2008

Business Type:

Manufacture & Trade Integration

Port:

SHANGHAI/ BEIJING/ NINGBO/ YIWU/ GUANGZHOU(CANTON)/ QINGDAO/ CHENGDU

Packaging Details:

Plastic box in Standard export carton

Highlight:

rotary burr cutter

carbide rotary file

Cylindrical End Carbide Rotary Burrs

Product Description

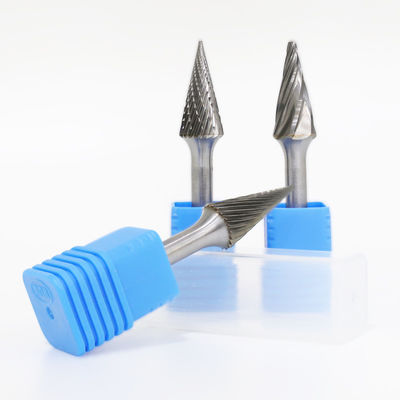

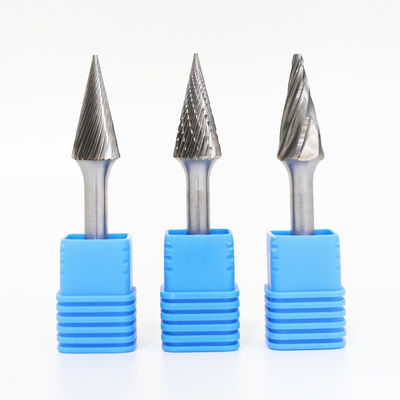

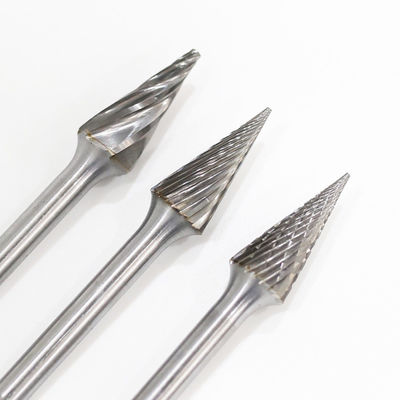

Double Cut Tungsten Rotary Burrs

Full Size F Shape SF-5M Double Cut Tungsten Carbide Rotary Burrs Cutting Tools Part

Size Specifications

Metric Sizes

Type F	Shank Diameter (mm)	Cut Diameter (d1)	Cut Length (l2)	Shank Diameter (d2)	Over Length (l1)	Tools NO.
3	3	14	3	38	SF30314	Solid
4	13	3	51	SF30413	Brazed
5	13	3	51	SF30513	Brazed
6	13	3	51	SF30613	Brazed
6	6	16	6	50	SF60616	Solid
6	18	6	63	SF60618	Brazed
8	20	6	65	SF60820	Brazed
10	20	6	65	SF61020	Brazed
11	25	6	70	SF61125	Brazed
12	25	6	70	SF61225	Brazed
16	25	6	70	SF61625	Brazed
20	25	6	70	SF62025	Brazed
25	25	6	70	SF62525	Brazed
8	10	20	8	65	SF81020	Brazed
11	25	8	70	SF81125	Brazed
12	25	8	70	SF81225	Brazed
16	25	8	70	SF81625	Brazed
20	25	8	70	SF82025	Brazed
25	25	8	70	SF82525	Brazed

Inch Sizes

Shank Diameter (In)	Cut Diameter (d1)	Cut Length (l2)	Shank Diameter (d2)	Over Length (l1)	Tools NO.	Type
1/8	1/8	1/2	1/8	1-1/2	SF-42	Solid
1/4	1/2	1/8	2	SF-51	Brazed
1/4	1/4	5/8	1/4	2	SF-1	Solid
1/4	5/8	1/4	2-3/8	SF-1	Brazed
5/16	3/4	1/4	2-1/2	SF-2	Brazed
3/8	3/4	1/4	2-1/2	SF-3	Brazed
7/16	1	1/4	2-3/4	SF-4	Brazed
1/2	1	1/4	2-3/4	SF-5	Brazed
5/8	1	1/4	2-3/4	SF-6	Brazed
3/4	1	1/4	2-3/4	SF-7	Brazed
3/4	1-1/4	1/4	3	SF-14	Brazed
3/4	1-1/2	1/4	3-1/4	SF-15	Brazed

Product Applications

Tungsten carbide burrs are widely used in industrial sectors such as machinery, aviation, automobile, shipbuilding, chemical engineering, and process engraving. The main applications include:

Fine processing of various metal molds, such as shoe molds
Various metal and non-metal process engraving, including mold engraving and trimming of craft gifts
Cleaning flash, burrs, and welds of castings, forgings, and weldments in machine-casting factories, shipbuilding factories, and automobile factories
Chamfering, rounding, and groove processing of mechanical parts, cleaning pipes, and finishing inner hole surfaces in machinery factories and repair shops
Repair of impeller runners in car engine factories

Usage Instructions

Carbide rotary burrs are primarily used in power tools or pneumatic tools (can also be installed on machine tools), with driving speeds generally ranging from 6,000-50,000 RPM.

Double Cut vs Single Cut Comparison

Double Cut: More suitable for materials with lower density such as wood, plastic, and aluminum. Crossed lines provide fast chip removal, making them ideal for softer materials.
Single Cut: Better suited for hard materials like iron, copper, and steel. The texture pattern prevents debris from blocking during processing of harder materials.

Custom Size Information

All stocked products are metric-sized. Contact us for inch size requirements.
Non-standard sizes available for production based on required specifications and drawings.
Contact us for more details about this product and other available shapes.
