Silver Tungsten Carbide High Purity Solid Carbide Burrs Rotary File Drill Bits
100 Piece/Pieces
MOQ
USD 1-10 Piece/Pieces
Price
Silver Tungsten Carbide High Purity Solid Carbide Burrs Rotary File Drill Bits
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: L/M
High Light:

carbide deburring bits

,

die grinder deburring bits

Payment & Shipping Terms
Packaging Details: Plastic box in Standard export carton
Delivery Time: 7-30 Day
Payment Terms: T/T, Western Union
Supply Ability: 100000 Piece/Pieces Month
Specifications
Name: Tungsten Carbide Rotary Files
Grade: YG 8
Trial Order: Acceptable For Any Quantity
Sample: Supplied
Business Type: Manufacture & Trade Integration
Material: Tungsten Carbide
Type: SL/SM
Color: Sliver
Product Description

HSilver Tungsten Carbide High Purity Solid Carbide Burrs Rotary File Drill Bits



Product name
Tungsten Carbide Rotary Files
Brand
KTS
shank hardness
HRA 89-92.5
Material
Tungsten Carbide
shank diamter
3mm/6mm/8mm/10mm...
Packing
Set packing
speed of tool
15000-45000Turn/min
Certificate
ISO9001:2008

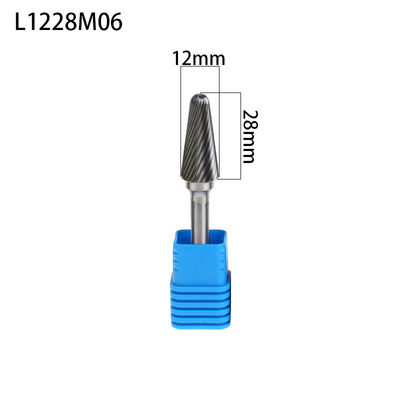

Size Rage:



Head dia 3-35mm

Shank dia 3,6.8mm

Increase length are ok.



Tolerence



Head diameter is +0.3 to +0.5mm

Head diameter is +0.3 to +0.5mm

Shank diameter is +0 to +0.04mm

Totel length is +-0.1mm

How to use the carbide burrs



1.Speed /RPM



The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM

2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000

16mm or 5/8" 7,650 - 11,500



2.Apply only a little pressure


As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.


3.Keep The Carbide Burr On The Move


When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.

Advantage of our carbide burrs

100% quality and brand new.
Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
High product processing quality, high finish, can process out a various of high-precision mold cavity.
Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, et

Silver Tungsten Carbide High Purity Solid Carbide Burrs Rotary File Drill Bits 0

Silver Tungsten Carbide High Purity Solid Carbide Burrs Rotary File Drill Bits 1Silver Tungsten Carbide High Purity Solid Carbide Burrs Rotary File Drill Bits 2
