3mm Super Hard Tire Reamer Bit Pneumatic Drill Bit Patch Plug Carbide Tire

3mm Super Hard Tire Reamer Bit Pneumatic Drill Bit Patch Plug Carbide Tire

Brand Name: KTS
Model Number: Customized
MOQ: 20Piece/Pieces
Price: $1.00 - $10.00 / Pieces
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 250000 Piece/Pieces per Month
Detail Information
Place of Origin:
Sichuan, China
Certification:
ISO9001:2008
Shank Diameter:
3mm
Material:
Tungsten Carbide
Shank Hardness:
HRA 89-92.5
Speed Range:
15000-45000 Turn/min
Grade:
YG 8
Size:
3mm
Packaging Details:
Plastic box in Standard export carton
Highlight:

tire reamer drill bit

,

tire carbide cutter

Product Description
Product Overview

The 3mm Super Hard Solid Carbide Cutter Rotary Burr is a precision pneumatic drill bit designed for tire repair and patch plug preparation. Manufactured from 100% raw tungsten carbide with a shank hardness of HRA 89–92.5, it delivers exceptional cutting performance, long service life, and reliable results across demanding industrial applications.

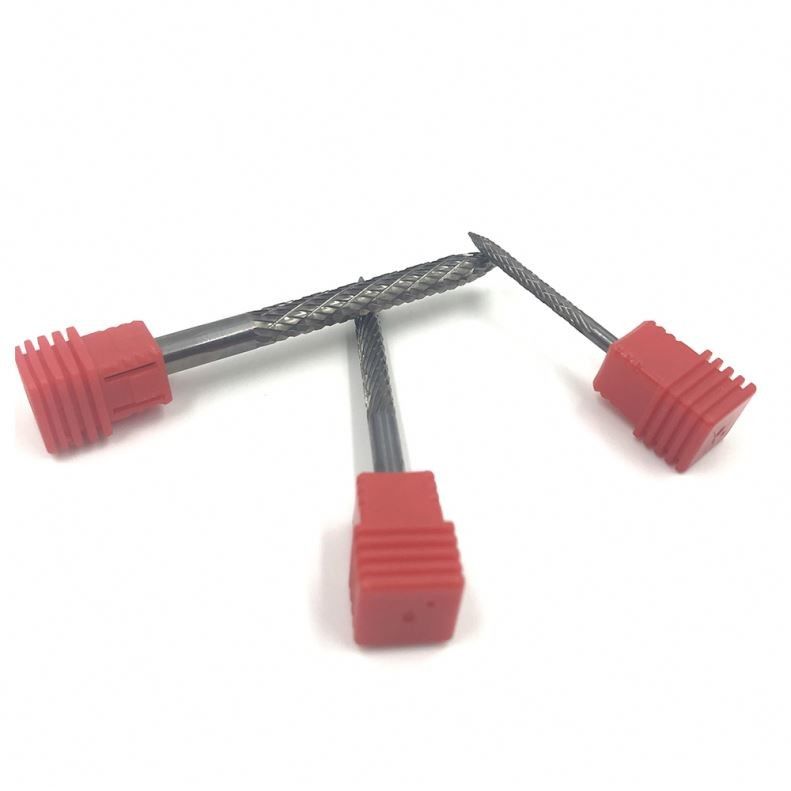

3mm super hard solid carbide rotary burr tire repair bit with tungsten carbide head Close-up view of carbide tire reamer bit shank and cutting head for pneumatic drill use
Technical Specifications
Product Name Tire Repair File Burrs
Brand KTS
Shank Diameter 3mm
Shank Hardness HRA 89–92.5
Material Tungsten Carbide
Tool Speed 15,000–45,000 Turn/min
Packing Set packing
Certificate ISO9001:2008
How to Use the Carbide Burr
1. Speed / RPM

The speed at which you use your carbide burr in your rotary tool depends on the material being worked and the contour being produced. It is safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows approximate recommended speeds.

Diameter of Burr Recommended RPM
2.35mm or 3/32" 17,000 – 26,000
3mm or 1/8" 17,000 – 26,000
6mm or 1/4" 11,000 – 16,500
12mm or 1/2" 8,000 – 12,000
16mm or 5/8" 7,650 – 11,500
2. Apply Only a Little Pressure

As with all drill bits and burrs, let the burr do the work and apply only a little pressure. Excessive pressure will cause the cutting edges of the flutes to chip away or become smooth too quickly, reducing the life of your burr.

3. Keep the Carbide Burr Moving

When using your carbide burr, try not to keep it still for too long. Holding it in one place will cause the burr to dig and jab into your material, resulting in unsightly marks and roughness.

Advantages of Our Carbide Burrs
  • 100% quality and brand new.
  • Can process a variety of metal and non-metal materials, with processing hardness up to HRA 89–92.5.
  • In a great part of the work, it can replace the petiole small wheel with no dust pollution.
  • High production efficiency — processing efficiency is several times higher than a file, and nearly 10 times higher than a small wheel stalk.
  • High product processing quality and high finish; can process a variety of high-precision mold cavities.
  • Long life — durability is 10 times higher than high-speed steel cutting tools and 200 times higher than small grinding wheels.
  • Easy to use, safe and reliable; reduces labor intensity and improves the working environment.
  • Suitable for processing metals and non-metals such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, ceramic tile, marble, jade, bone, and more.
OEM & Customization

We leverage years of OEM experience to integrate the features you want. Customer designs are available.

  1. We can accept orders for all kinds of specially designed tungsten carbide products.
  2. Material: 100% raw material.
  3. Delivery: within 20–30 days upon confirmation of prepayment.

We can also produce according to client-offered drawings or sizes, and accept small orders.

Frequently Asked Questions
1. Could you please send me your catalog with a price list?

Yes, a catalog is available. Kindly tell us the item number you like, and we will send a quotation list as soon as possible.

2. May I order a small quantity of carbide products?

Different models have different MOQs. Please contact us to confirm.

3. Can you provide samples?

Yes. Please feel free to tell us the item number you prefer. Your own design is also welcome for sample production.

4. When can you send me the carbide products after payment?

Around 30 days.

5. What are your price, payment, and delivery terms?

Price Terms: FOB Guangzhou; balance paid before shipment. Payment Terms: T/T in advance. Delivery Terms: by express, by air, by shipment, or as per requirement.

6. What is your guarantee?

Before shipment, our products pass strict inspection. If any problem is found, detailed photos must be provided within 20 days after receiving the goods. After our confirmation, compensation will be offered accordingly.
