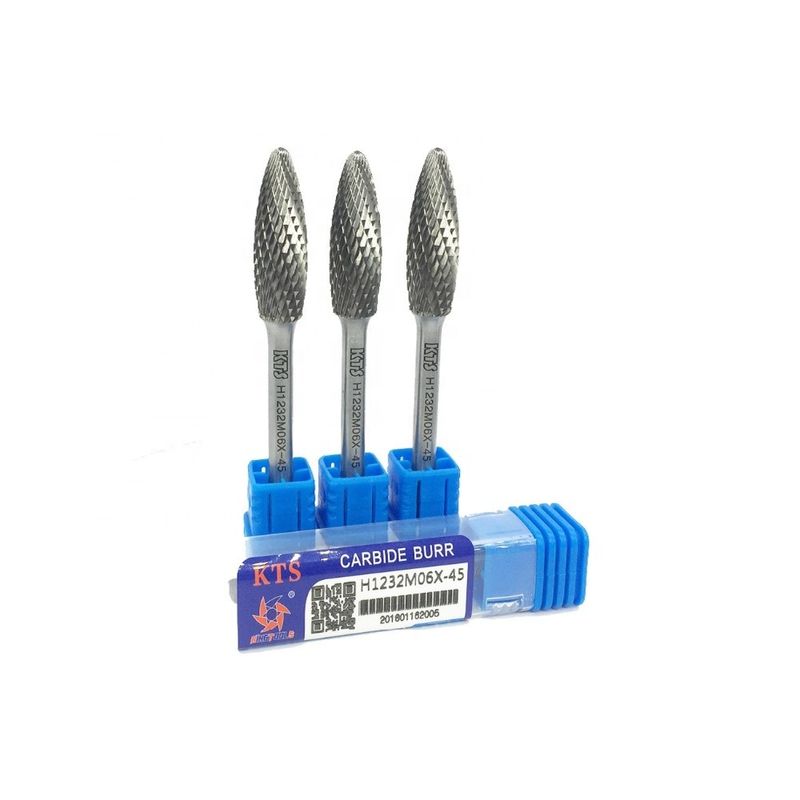

Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr

20 Piece/Pieces
MOQ
$3.68 - $4.98 / Pieces
Price
Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Power Tool Parts
Name: Tungsten Carbide Rotary Files
Material: Tungsten Carbide
Grade: YG 8
Color: Sliver
Shape: Cylinder Without Endcut
Shank: 40 Cr
LOGO: Customized
Sample: Supplied
Certificate: ISO9001:2008
Business Type: Manufacture & Trade Integration
Port: SHANGHAI/ BEIJING/ NINGBO/ YIWU/ GUANGZHOU(CANTON)/ QINGDAO/ CHENGDU
High Light:

flame shaped finishing bur

,

rotary deburring bits

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: SH
Payment & Shipping Terms
Packaging Details: Plastic box in Standard export carton
Delivery Time: 7-15 Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 250000 Piece/Pieces per Month
Product Description

High quality flame-shaped tungsten carbide rotating burr/6mm ball head carbide rotary burr

Product Description
Product name : Tungsten Carbide Rotary Files shank diamter :  6mm
Brand : KTS Packing :  set  packing
shank hardness : HRA 89-92.5 speed of tool :  15000-45000Turn/min
Material : Tungsten Carbide Certificate :  ISO9001:2008



Material: 100% of raw materials .

Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

Types: standard, conical, parabolic,ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.



Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 0

Shape&code Cut Dia Cut Length Shank Dia Shank length Total length Type
d1 l1 d2 l2
H0307M03-45 3 7 3 43 50 Brazed
H0618M06-45 6 18 6 45 63 Brazed
H0820M06-45 8 20 6 45 65 Brazed
H1025M06-45 10 25 6 45 70 Brazed
H1232M06-45 12 32 6 45 77 Brazed
H1636M06-45 16 36 6 45 81 Brazed



Name Type Cut Material Product Process Head Hardness LOGO
Cylindrical A Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cylindrical End Cut B Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cylindrical Radius End C Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
BALL SHAPE D Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Oval E Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Tree Shape F Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Tree Pointed Ends G Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Flame H Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
60°Cone J Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
90°Cone K Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Taper Radius End L Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cone M Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Inverted Cone N Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized

Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 1Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 2Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 3

How to use the carbide burr
1.Speed /RPM
The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500
2.Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3.Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.



Advantage of our carbide burrs

·100% quality and brand new.
·Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
·In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
·High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
·High product processing quality, high finish, can process out a various of high-precision mold cavity.
·Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
·Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
·Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.



Product Application

Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.

Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 4

Factory and producti

Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 5


We 'll use our several years OEM experience to integrate the features you want .

Customer designs are available.

1.We can accept order of all kind of special designed products of tungsten carbide .

2.Material :100% raw material .

3.Delivery:within 20-30 days upon confirm the prepaid.

Other:we can according to client offer drawing paper or sizes produce,and accept small order.

transport

Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 6

certificate

Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 7





Flame - Shaped Tcarbide Burr Die Grinder Bit / 6mm Ball Head Carbide Rotary Burr 8



1. Could you please send me your catalog with price list?

A: Yes,catalog is OK, but kindly tell US the item NO.you like,will send quotation list asap.



2. May l order small quantity of carbide products?

A: Different models have different MOQ.You'd better contact US to confirm.



3. Can you provide sample?

A: Yes,please feel free to tell US the item NO. You prefer,also your own design is welcome to make sample for you.



4. When can you send me the carbide products afthe payment?

A: Around 30 days.



5. What is your price term,payment term and delivery terms?

A: Price Terms: By FOB Guangzhou,balance paid before shipent.

     Payment Terms: T/T in advance.

     Delivery Terms: By express,by air,by shipment or as per requirement.



6. What is your guarantee?

A: Before shipent our products will pass strict inspection, lf any problem be found,detail photos need to be provide 20 days after receving goods.After our confirmation,compensation will be offered accordingly.
