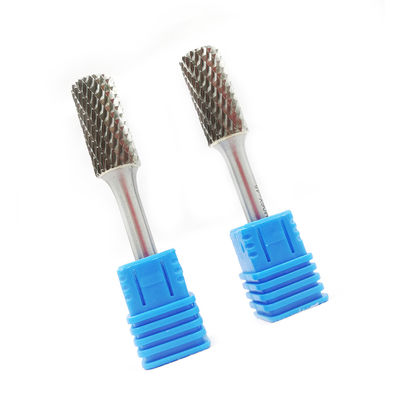

Silver High Hardness Cylindrical Carbide Burr Full Size Strict Tolerance Extent Control

20-499 Pieces
MOQ
$1.00 - $10.00 / Pieces
Price
Silver High Hardness Cylindrical Carbide Burr Full Size  Strict Tolerance Extent Control
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Tungsten Carbide
Size: Full Size
Grade: YG 8
Colour: Silver/golden
Trial Order: Acceptable For Any Quantity
Certificate: ISO9001:2008
Type Of Cut: Standard Double-cut,fine Cut,fine Double-cut,etc.
Single Gross Weight: 0.1 Kg
Highlight:

cylindrical rotary file

,

burr grinder bits

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: A
Payment & Shipping Terms
Packaging Details: Plastic box in Standard export carton
Delivery Time: 7-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 250000 Piece/Pieces per Month
Product Description
Silver High Hardness Cylindrical Carbide Burr Full Size Strict Tolerance Extent Control
Product Description

Material: 100% of raw materials.

Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

Types: standard, conical, parabolic,ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.

Silver High Hardness Cylindrical Carbide Burr Full Size  Strict Tolerance Extent Control 0
Product name
Tungsten Carbide Rotary Files
Brand
KTS
shank hardness
HRA 89-92.5
Material
Tungsten Carbide
shank diamter
 3mm/6mm/8mm/10mm...
Packing
set packing
speed of tool
15000-45000Turn/min
Certificate
 ISO9001:2008
Silver High Hardness Cylindrical Carbide Burr Full Size  Strict Tolerance Extent Control 1

Features:
Carbide rotary boring is an indispensable advanced tool for fitters and molders. It is characterized by the fact that it replaces the small grinding wheel with handle without dust pollution, and its service life is equivalent to several hundred small grinding wheels with handles. The processing efficiency is increased by more than 5 times. Grinding various metal and non-metal materials with hardness below HRC70.

How to use the carbide burrs



1.Speed /RPM



The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500



2.Apply only a little pressure


As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.


3.Keep The Carbide Burr On The Move


When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.





Silver High Hardness Cylindrical Carbide Burr Full Size  Strict Tolerance Extent Control 2

Risk guarantee

·100% raw material, no waste tungsten carbide added
·Do not use through hole, tail hole welding
·100% factory direct sales
Certifications
Silver High Hardness Cylindrical Carbide Burr Full Size  Strict Tolerance Extent Control 3
Silver High Hardness Cylindrical Carbide Burr Full Size  Strict Tolerance Extent Control 4

1.Sea Transportation
2.Air Transportation
3.Land Transportation
4.Railway Transportation
