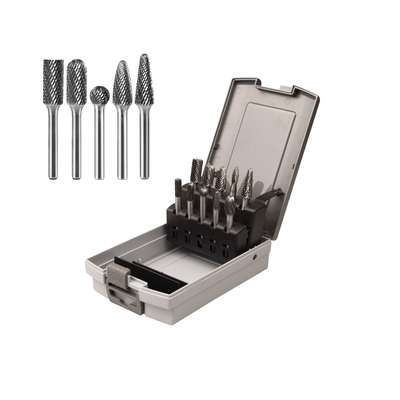

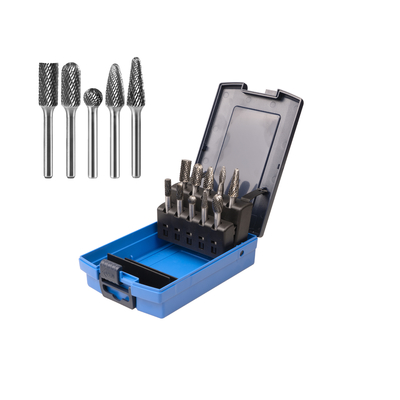

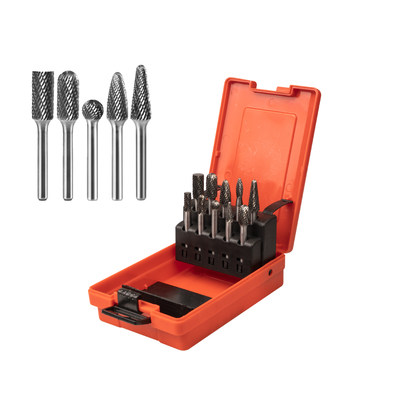

CARBIDE BURRS SETS/KITS END CUT CLYDRICAL DOUBLE CUT ROTARY FILE ROUND TREE GRINDING BURR
50 SETS
MOQ
USD 1-10/PIECE
Price
CARBIDE BURRS SETS/KITS END CUT CLYDRICAL DOUBLE CUT ROTARY FILE ROUND TREE GRINDING BURR
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: SICHUAN, CHINA
Brand Name: KTS
Certification: ISO9001:2008
Model Number: ALL TYPES
High Light:

solid carbide burr set

,

double cut carbide rotary burr set

Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 7-15 DAY
Payment Terms: L/C, T/T, Western Union
Supply Ability: 250000 PIECES PER MONTH
Specifications
Type: CARBIDE BURRS
Name: TUNGSTEN CARBIDE BURRS
Material: TUNGSTEN CARBIDE
OEM: AVAILABLE
G: YG6/YG8/YG10X
Sample: AVAILABLE
Type Of Cut: SINGLE CUT, DOUBLE CUT, ALUMINUM CUT
Port: CHENGDU/SHANGHAI/GUANGZHOU/SHENZHEN

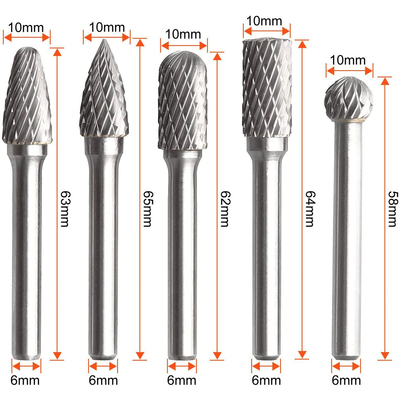

Size: 3MM-25MM
Product Description

CARBIDE BURRS SETS/KITS END CUT CLYDRICAL DOUBLE CUT ROTARY FILE ROUND TREE GRINDING BURR

Material: 100% of raw materials.

Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

Types: standard, conical, parabolic,ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.

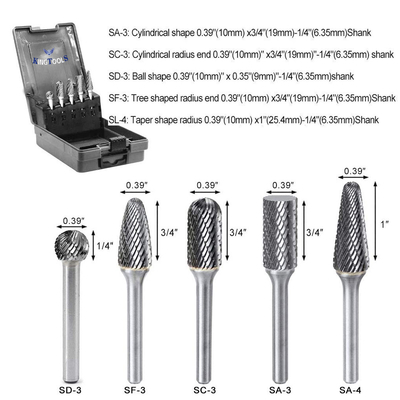

Name Type Cut Material Product Process Head Hardness LOGO
Cylindrical A Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cylindrical End Cut B Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cylindrical Radius End C Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
BALL SHAPE D Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Oval E Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Tree Shape F Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Tree Pointed Ends G Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Flame H Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
60°Cone J Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
90°Cone K Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Taper Radius End L Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Cone M Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized
Inverted Cone N Standard/Single/Double/aluma YG6/YG8/YG10X/YG20C CNC 89-92.5HRA Customized







How to use the carbide burr
1.Speed /RPM
The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500
2.Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3.Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.
