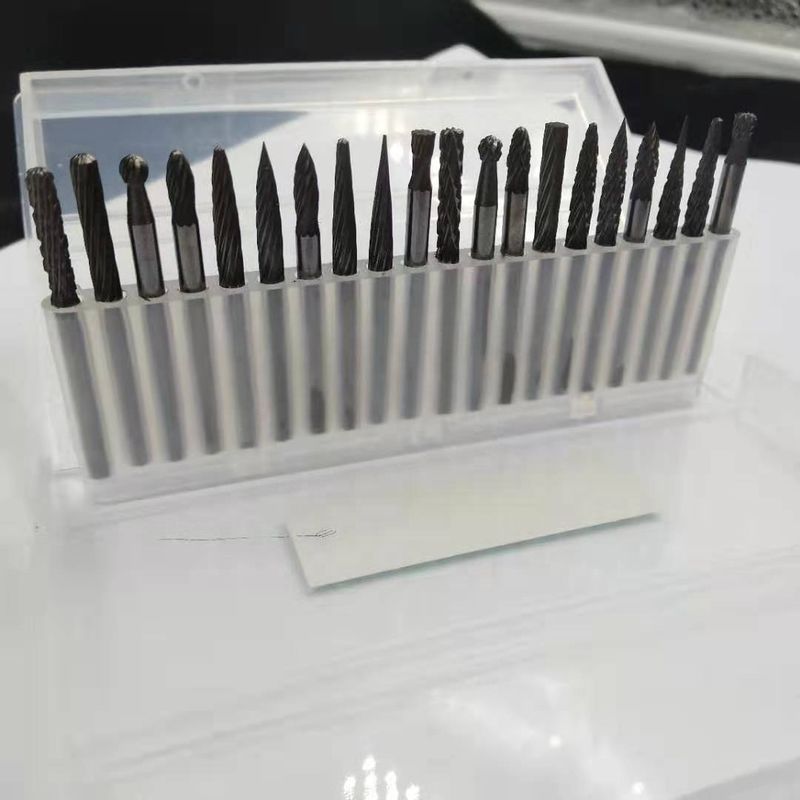

High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability

20 Piece/Pieces
MOQ
$1.50 - $8.00 / Pieces
Price
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Tungsten Carbide Rotary Files
Material: Tungsten Carbide
Size: Full Size
Grade: YG6/YG8/YG10X/YG20C
LOGO: Customized
Sample: Supplied
Trial Order: Acceptable For Any Quantity
Certificate: ISO9001:2008
Type Of Cut: Standard Double-cut,fine Cut,fine Double-cut,etc.
Business Type: Manufacture & Trade Integration
Port: Any Port
Highlight:

solid carbide burr set

,

carbide rotary file set

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Model Number: COSTOM
Payment & Shipping Terms
Supply Ability: 250000 Piece/Pieces per Month
Product Description
Product Description
Product Description

Material: 100% of raw materials.

Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

Types: standard, conical, parabolic,ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.



High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 0
Product name
Tungsten Carbide Rotary Files
Brand
KTS
shank hardness
HRA 89-92.5
Material
Tungsten Carbide
shank diamter
 3mm/6mm/8mm/10mm...
Packing
set packing
speed of tool
15000-45000Turn/min
Certificate
 ISO9001:2008
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 1
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 2
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 3
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 4
How to use the carbide burrs

1.Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500
2.Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3.Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.



Advantage of our carbide burrs

·100% quality and brand new.
·Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
·In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
·High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
·High product processing quality, high finish, can process out a various of high-precision mold cavity.
·Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
·Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
·Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.



High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 5
Product Application
Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 6
Our Advantages




Why choose KTS?


High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 8
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 9
Company Introduction
Zigong Jincheng Cemented Carbide Tools Co., Ltd. is one of the market leaders in China that produces and sells rotary burrs, teeth, bars, blanks, alloy plates, nozzles and more. We were established in China in 2007. As a tool company from raw material to finished product processing and research, we can provide semi-finished products, finished products, customized services and other services. Our products have been exported to more than 30 countries and regions in the United States, Britain, Germany, France, Mexico, Canada, Russia, Japan, Australia, and the Middle East. Chengdu Jinyuan New Material Co., Ltd. is a subsidiary of Zigong Jincheng Cemented Carbide Tools Co., Ltd., which is committed to providing customers with quality services, products and preferential prices.
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 10
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 11
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 12
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 13

Risk guarantee

·100% raw material, no waste tungsten carbide added
·Do not use through hole, tail hole welding
·100% factory direct sales
Certifications
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 14
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 15
Related Products

Packing&Shipping
Plastic box in Standard export carton
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 16
1.Sea Transportation
2.Air Transportation
3.Land Transportation
4.Railway Transportation
FAQ
High Hardness Double Cut Carbide Rotary Burr Set Good Mechanical Stability 17

1. Could you please send me your catalog with price list?

A: Yes,catalog is OK, but kindly tell US the item NO.you like,will send quotation list asap.

2. May l order small quantity of carbide products?

A: Different models have different MOQ.You'd better contact US to confirm.

3. Can you provide sample?

A: Yes,please feel free to tell US the item NO. You prefer,also your own design is welcome to make sample for you.

4. When can you send me the carbide products afthe payment?

A: Around 30 days.

5. What is your price term,payment term and delivery terms?

A: Price Terms: By FOB Guangzhou,balance paid before shipent.

     Payment Terms: T/T in advance.

     Delivery Terms: By express,by air,by shipment or as per requirement.

6. What is your guarantee?

A: Before shipent our products will pass strict inspection, lf any problem be found,detail photos need to be provide 20 days after receving goods.After our confirmation,compensation will be offered accordingly.
