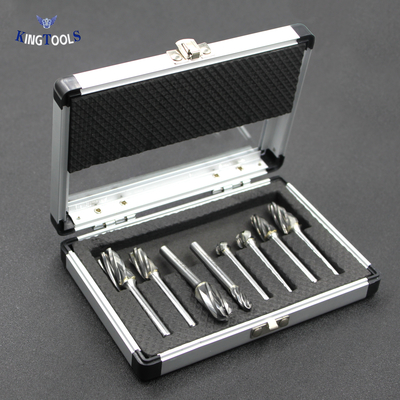

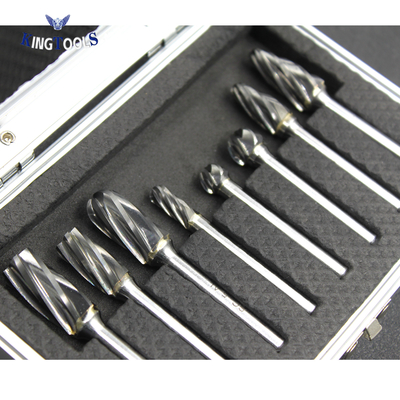

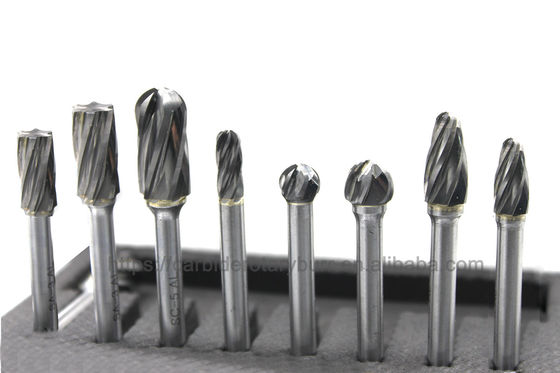

High Speed Carbide Die Grinder Bit Set Aluminium Solid Carbide Burr Set Easy To Use

High Speed Carbide Die Grinder Bit Set Aluminium Solid Carbide Burr Set Easy To Use
Features Gallery Product Description Request A Quote
Grade: YG6/YG8/YG10X
Certificate: ISO9001:2008
High Light:

carbide rotary file set


double cut carbide rotary burr set

Basic Infomation
Place of Origin: SICHUAN, CHINA
Brand Name: KTS
Certification: ISO9001:2008
Model Number: aluminum carbide burr set
Payment & Shipping Terms
Packaging Details: Aluminum carbide burr set usually pacakged by plastic box /Aluminum box and carton
Delivery Time: 7-15 DAY
Payment Terms: L/C, T/T, Western Union
Supply Ability: 250000 PIECES PER MONTH
Product Description

High Speed Carbide Die Grinder Bit Set Aluminium Solid Carbide Burr Set Easy To Use

Details of Aluminum Carbide Burr Set

  1. Material: 100% of raw carbide materials.
  2. Tolerance: strict tolerance extent control, which can reach +/-0.01mm;
  3. Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.
  4. Types: standard, conical, parabolic,ballistic
  5. Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.
Product name Tungsten Carbide Bit Set
Brand KTS
Head Hardness HRA 89-92.5
Material Tungsten Carbide
shank diamter 3mm/6mm/8mm/10mm...
Packing Aluminum carbide burr set usually pacakged by aluminum box and carton
speed of tool 15000-45000Turn/min
Certificate ISO9001:2008


Specifications of Aluminum Carbide Burr Set

  • SA-5: Cylindrical shape 1/2"x 1"
  • SA-3: Cylindrical shape 3/8"x 3/4"
  • SF-5: Tree shaped radius end 1/2"x 1"
  • SF-3: Tree shaped radius end 3/8" x 3/4
  • SC-3: Cylindrical radius end 3/8"x 3/4”
  • SC-1: Cylindrical radius end 1/4"x 5/8
  • SD-3: Ball shape 3/8"X5/16"
  • SD-1: Ball shape 1/4"X7/32

High Speed Carbide Die Grinder Bit Set Aluminium Solid Carbide Burr Set Easy To Use 0


Advantage of our Carbide Rotary Burr Set

  1. 100% quality and brand new.
  2. Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
  3. In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
  4. High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
  5. High product processing quality, high finish, can process out a various of high-precision mold cavity.
  6. Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
  7. Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
  8. Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.


Application of double cut carbide rotary burr set
The double cut carbide rotary burr set is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.
  • Do not use through hole, tail hole welding
  • 100% raw material, no waste tungsten carbide added
  • 100% factory direct sales

High Speed Carbide Die Grinder Bit Set Aluminium Solid Carbide Burr Set Easy To Use 1

How to use the carbide rotary files burrs?

1. Speed /RPM

The speed at which you use your carbide bur bit in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds. Diameter of Burr RPM:
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500

12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500

2. Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.

3. Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.

Plastic box in Standard export carton

  • Sea Transportation
  • Air Transportation
  • Land Transportation
  • Railway Transportation

High Speed Carbide Die Grinder Bit Set Aluminium Solid Carbide Burr Set Easy To Use 2

High Speed Carbide Die Grinder Bit Set Aluminium Solid Carbide Burr Set Easy To Use 3


1. Could you please send me your catalog with price list?

A: Yes,catalog is OK, but kindly tell US the item like,will send quotation list asap.


2. May l order small quantity of carbide products?

A: Different models have different MOQ.You'd better contact US to confirm.


3. Can you provide sample?

A: Yes,please feel free to tell US the item NO. You prefer,also your own design is welcome to make sample for you.


4. When can you send me the carbide products afthe payment?

A: Around 30 days.


5. What is your price term,payment term and delivery terms?

A: Price Terms: By FOB Guangzhou,balance paid before shipent.

Payment Terms: T/T in advance.

Delivery Terms: By express,by air,by shipment or as per requirement.


6. What is your guarantee?

A: Before shipent our products will pass strict inspection, lf any problem be found,detail photos need to be provide 20 days after receving
