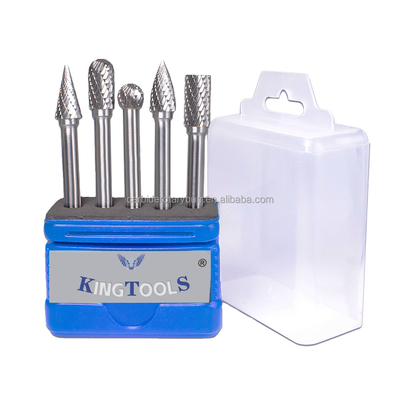

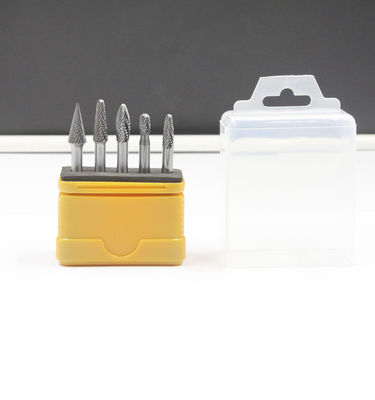

Metal Stone Cemented Carbide Grinding Head High Speed Steel Rotary File Milling Cutter Set
Product manual
1. Rotary burr, also called deburring, is a grinding tool used by pneumatic or electric grinders for milling, deburring, hemming, trimming process welds and surface treatment.
Workpiece material
2. Application: high alloy steel, non-rusting steel, acid-resistant steel, heat-resistant steel, stainless steel, aluminum, light alloy,
Non-ferrous metals, brass, copper, zinc, die casting and plastic
Manufacturing features:
The tolerance of the carbide burr produced by KTS is controlled within .005-.001mm
Made of tungsten carbide K20 microcrystalline (hardness> 90 HRC). Solid to 6mm;
The steel handle is welded to burrs starting from 8mm.

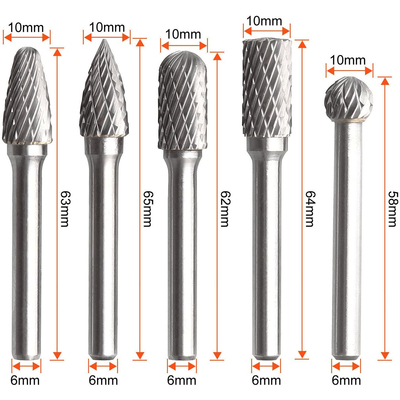

The size of the sand is 6x40 mm or 6x100 mm (long series).

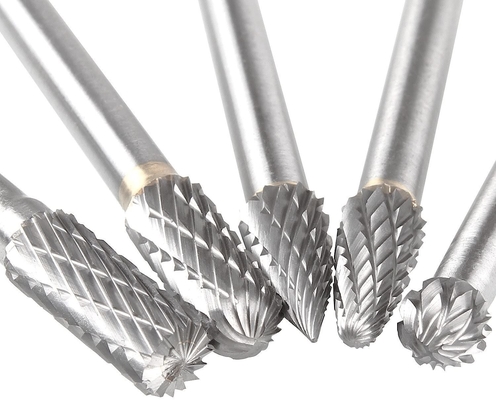

There are nine different cutting methods (standard single tool, fine tool, coarse tool, chip breaker, double tool (cross)
Coarse double cutting, fine double cutting, diamond cutting, color aluminum cutting.
We recommend carefully selecting the burr cutting method according to the material to be processed.

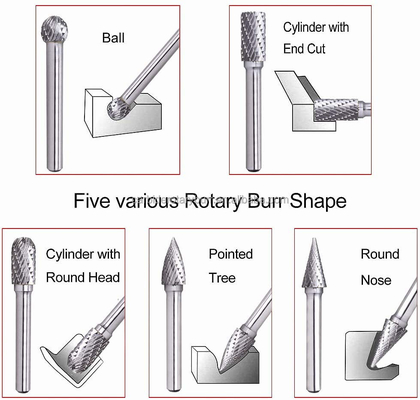

Shapes of carbide burrs
1.Cylindrical (Plain End)-Shape A
2.Cylindrical (End Cut)_Shape B
3.Cylindrical (Radius End)-Shape C
4.Ball-Shape D
5.Oval-Shape E
6.Tree (Radius End)-Shape F
7.Tree (Pointed Ends)-Shape G
8.Flame-Shape H
9. 60°Cone-Shape J
10.Taper (Radius End)-Shape L;Conical Round Nose-Shape L
11. Cone -Shape M
