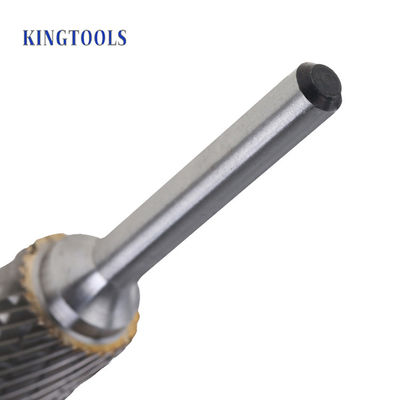

A/B/C Type Pointed 6mm Shank Carbide Cylindrical Rotary File For Wood Cutting
Material-tungsten carbide:
High hardness, excellent wear resistance and good toughness, processing hardness reaches HRC70.
Cutting the burr shape:
Ball, pointed tree, round nose, end cut cylinder, round head cylinder, ellipse, etc.
Feature:
• Carbide rotary files are used in metal processing, mold and pattern making, sinking, surface cleaning and maintenance, a large number of applications in body workshops, processing workshops and brake workshops.
• Cut, shape, grind and remove sharp edges, burrs and excess material (deburring).
• Industrial plants, mold manufacturers, and grinders are ideal for cleaning welds, grinding weld beads, forming parts, grinding rough castings or transplanting cylinder heads.
• The use of cemented carbide rotary files is an effective way to realize manual mechanization.
• Aircraft, shipbuilding, automobiles, machinery, chemistry, etc., can be widely used in the machining of iron, cast steel, carbon steel, alloy steel, stainless steel, hardened steel, copper, aluminum, wood, etc.
Please note:
• Workpiece and tools should always be steady and well supported.
• Carbide burrs are not suitable for 'milling' large amounts of material, they are for light stock removal at high rpm's 'LOW FEED - HIGH SPEED'.
• Always ensure that at least 70% of the shank length is clamped by the collet or chuck of the tool being used.
• Always ensure that the tool is rated to the recommended operating speed of the burr.
Tree Shape Pointed End(SG)
Part Number Double Cut |
Shape and Size | Cuting Dia | Shank Dia | Length of Cut | Overall Length | Retail Price |
1-307-1013 | SG-44 | 1/8 | 1/8 | 1/2 | 1-1/2 | 3.26 |
1-307-2025 | SG-1 | 1/4 | 1/4 | 5/8 | 2 | 6.62 |
1-307-2031 | SG-2 | 5/16 | 1/4 | 3/4 | 2-1/2 | 8.08 |
1-307-2038 | SG-3 | 3/8 | 1/4 | 3/4 | 2-1/2 | 10.00 |
1-307-2050 | SG-5 | 1/2 | 1/4 | 1 | 2-3/4 | 13.69 |
1-307-2063 | SG-6 | 5/8 | 1/4 | 1 | 2-3/4 | 22.31 |
1-307-2075 | SG-7 | 3/4 | 1/4 | 1 | 2-3/4 | 34.62 |
