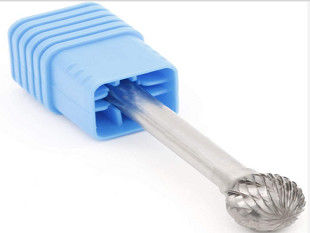

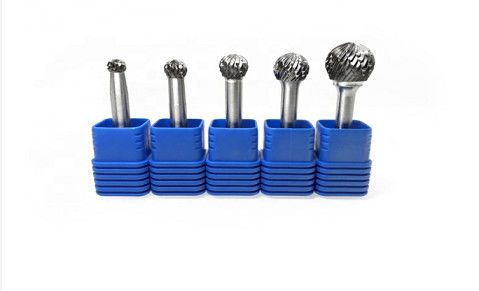

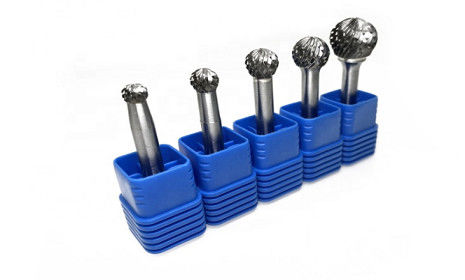

Silver 6mm Shank Double Cut Tungsten Carbide Ball Burr Tool Ball Burrs
Advantage
1: Designed to remove materials from various products, including wood, plastic, stainless steel and other metals
2: Dual cutting pattern can quickly remove material in harsh applications
3: Long tool life and faster cutting speed
There are many shapes and sizes. Shapes include spherical, conical, flame, tree and cylindrical
Diameter range from 1/16" to 1" (with round shank)
6 inch long burs are available in shapes and sizes.
Carbide files are available in 1/4" and 1/8" handles. All burrs below 1/4" in diameter are hard alloy, and all burrs above 1/4" in diameter have hardened steel shanks.
Super cutting is the standard configuration for all burrs. The shank can be re-ground and lengthened. All burrs provide accurate and precise cutting.
Cemented carbide files for aluminum
Carbide files are widely used in metal processing, tool manufacturing, engineering, model engineering, wood carving, jewelry making, welding, chamfering, casting, deburring, grinding, cylinder head transplantation and engraving. Only used in the aerospace, automotive, dental, metal engraving and metal smith industries.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Description
Ball Shape.
All sizes are nominal with a 6mm shank unless other wise stated.
Cut Numbers:
1.Cut 6 - Double Cut.
Crosscut and double cut to improve control and chipbreaks. Manufactured from high grade tungsten carbide for general-purpose use.
2.Cut 9 - Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.
Suitable for deburring and polishing of cast iron, cast steel, carbon steel, alloy steel and stainless steel etc.
up to HRC65 hardness.
Please note:
• Work piece and tools should always be steady and well supported.
• Carbide burrs are not suitable for 'milling' large amounts of material, they are for light stock removal and high revolutions 'LOW FEED - HIGH SPEED'.
• Always ensure that at least 70% of the shank length is clamped by the collet or chuck of the tool being used.
• Always ensure that the tool is rated to the recommended operating speed of the burr.
