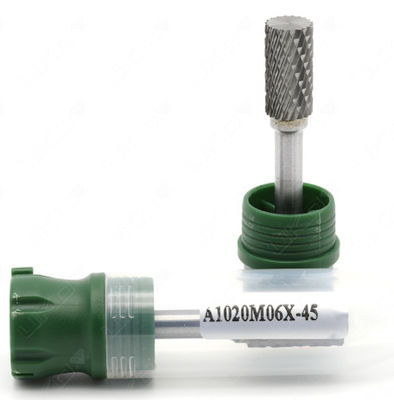

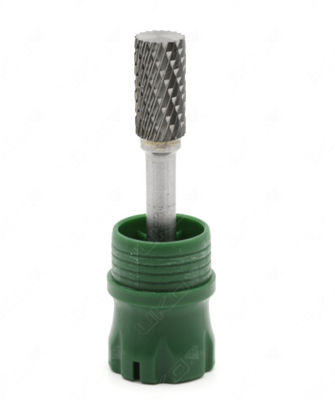

A Types Cylindrical Carbide Burr Double Cut For Metal And Non - Metal Carving
20 Piece/Pieces
MOQ
$1.50 - $8.00 / Pieces
Price
A Types Cylindrical Carbide Burr Double Cut For Metal And Non - Metal Carving
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: A
High Light:

A Types Cylindrical Carbide Burr

,

Double Cut Cylindrical Carbide Burr

,

ANSI Metal Carving Cylindrical Rotary File

Payment & Shipping Terms
Packaging Details: Plastic box in Standard export carton
Delivery Time: 7-30 Days
Payment Terms: L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability: 250000 Piece/Pieces per Month
Specifications
Type: SA
Material: Tungsten Carbide
Size: Full Size
Grade: YG6/YG8/YG10X/YG20C
LOGO: Customized
Trial Order: Acceptable For Any Quantity
Sample: Supplied
Port: Any Port
Product Description
A Types Cylindrical Carbide Burr Double Cut For Metal And Non-Metal Carving



 Cemented carbide rotary file, also known as cemented carbide high speed mixed milling cutter, cemented carbide die milling cutter, can be used with high speed electric mill or pneumatic tools. Cemented carbide rotary file is widely used in machinery, automobile, shipbuilding, chemical industry, craft carving and other industrial sectors. Carbide rotary files can be used to process cast iron, cast steel, carbon steel, alloy steel, stainless steel, hardened steel, copper and aluminum, etc. Because the hard alloy rotary file is clamped on a high speed rotating tool for manual control, the pressure and feed rate of the hard alloy rotary file depend on the service life of the tool and the cutting effect.



Technical date



S.N. MATERIAL
1a Steel
1b Hard steels
2 Stainless steel
3 Cast iron
4 Titanium
5 Nickel
6 Copper/Copper alloys
7 Aluminum
8 Plastics
9 Cement



Guide to running speeds



mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a 60,000-80,000 35,000-45,000 22,500-35,000 20,000-30,000 15,000-20,000
1b 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
2 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
3 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 9,000-20,000
4 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
5 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
6 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 3,000-20,000
7 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
8 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
9 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
A Types Cylindrical Carbide Burr Double Cut For Metal And Non - Metal Carving 0
Product name
Tungsten Carbide Rotary Files
Brand
KTS
shank hardness
HRA 89-92.5
Material
Tungsten Carbide
shank diamter
 3mm/6mm/8mm/10mm...
Packing
set packing
speed of tool
15000-45000Turn/min
Certificate
 ISO9001:2008
A Types Cylindrical Carbide Burr Double Cut For Metal And Non - Metal Carving 1

How to use the carbide burrs


1. Speed /RPM



The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500



2. Apply only a little pressure


As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3. Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.



Our services



(1) Made strictly accord to DIN, ANSI and ISO standard.
(2) Samples Available
(3) Single cut, double cut, Aluminium Cut & Diamond cut are avail.
(4)Wide range of forms, such as Cylindrical, Cylindrical End Cut, Cylindrical Radius End, Ball End, Three Point End, Oval End, Taper or Cone Flat End, Taper or Cone Radius End, Three Radius End, Flame End, etc.
(5)Can also produce according to the clients' detailed samples and drawings.
(6) Carbide Burrs sets are available.
(7) Both metric and inch sizes are supplied.
(8) experienced engineer instruction.
(9) Best price offer,delivery time quickly.Best professional Service .
(10 laser marking, OEM.



Advantage of our carbide burrs



· 100% quality and brand new.
· Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
· In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
· High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
· High product processing quality, high finish, can process out a various of high-precision mold cavity.
· Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
· Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
· Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.



A Types Cylindrical Carbide Burr Double Cut For Metal And Non - Metal Carving 2

Product Application

Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.
Our Advantages

Why choose KTS?


A Types Cylindrical Carbide Burr Double Cut For Metal And Non - Metal Carving 4

FAQ


1. Could you please send me your catalog with price list?

A: Yes,catalog is OK, but kindly tell US the item NO.you like,will send quotation list asap.



2. May l order small quantity of carbide products?

A: Different models have different MOQ.You'd better contact US to confirm.



3. Can you provide sample?

A: Yes,please feel free to tell US the item NO. You prefer,also your own design is welcome to make sample for you.



4. When can you send me the carbide products afthe payment?

A: Around 30 days.



5. What is your price term,payment term and delivery terms?

A: Price Terms: By FOB Guangzhou,balance paid before shipent.

     Payment Terms: T/T in advance.

     Delivery Terms: By express,by air,by shipment or as per requirement.



6. What is your guarantee?

A: Before shipent our products will pass strict inspection, lf any problem be found,detail photos need to be provide 20 days after receving goods.After our confirmation,compensation will be offered accordingly.
