Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood
20 Piece/Pieces
MOQ
$1.50 - $8.00 / Pieces
Price
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: COSTOM
High Light:

Polishing Tungsten Carbide Burr Set

,

Engraving Tungsten Rotary Burr Set

,

Grinding Tungsten Carbide Burr Set

Payment & Shipping Terms
Packaging Details: Plastic Case
Delivery Time: 7-30 Days
Supply Ability: 250000 Piece/Pieces per Month
Specifications
Features: High Density\erosion Proof\]corrosion Proof
Name: Engraving Polishing Tungsten Rotary Burr Set
Material: Tungsten Carbide
Size: Full Size
Grade: YG6/YG8/YG10X/YG20C
Sample: Supplied
Trial Order: Acceptable For Any Quantity
Certificate: ISO9001:2008
Product Description

10pcs 6mm 1/4'' Shank Dia Metal Wood Grinding Engraving Polishing Tungsten Rotary Burr Set Porting Tools Carbide Burrs


Carbide burrs are widely used in metal processing, tool manufacturing, engineering, model engineering, wood carving, jewelry manufacturing, welding, chamfering, casting, deburring, grinding, cylinder head port and engraving. Used in aerospace, automotive, dental, stone and metal carving and metalworking industries.



How to use the carbide burrs



1.Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500


2.Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.


3.Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.



Technical date



S.N. MATERIAL
1a Steel
1b Hard steels
2 Stainless steel
3 Cast iron
4 Titanium
5 Nickel
6 Copper/Copper alloys
7 Aluminum
8 Plastics
9 Cement



Guide to running speeds



mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a 60,000-80,000 35,000-45,000 22,500-35,000 20,000-30,000 15,000-20,000
1b 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
2 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
3 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 9,000-20,000
4 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
5 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
6 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 3,000-20,000
7 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
8 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
9 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000



Advantage of our carbide burrs



1.100% quality and brand new.


2.Can process various metals and non-metals. The processing hardness is up to HRA89-92.5.


3.For most of the work, you can replace the small petiole wheels and there is no dust contamination.


4.Production efficiency is high, processing efficiency is several times that of files, and about 10 times that of small wheel stems.


5.Various high-precision mold cavities can be machined with high product processing quality and high finish.


6.Long life, 10 times more durable than high-speed steel cutting tools, and 200 times more durable than small grindstones.


7.Easy to use, safe and reliable, can reduce labor intensity and improve working environment.


8.Suitable for the treatment of these metallic and non-metals such as cast iron, cast steel, bearing steel, high carbon steel, chrome nickel alloys, bronze, brass, ceramic tiles, marble, jade and bone.

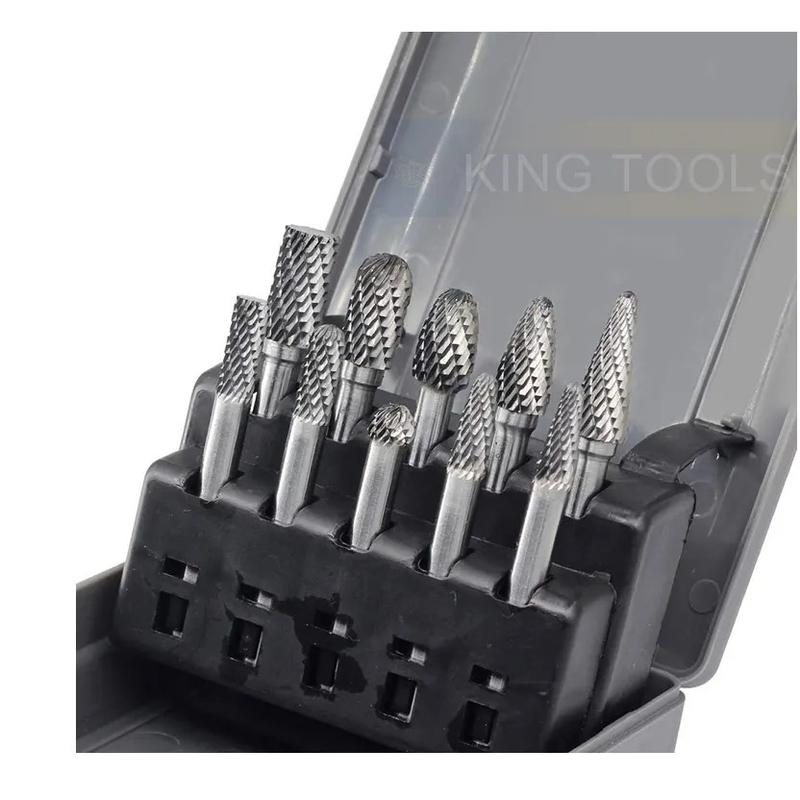

Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 0

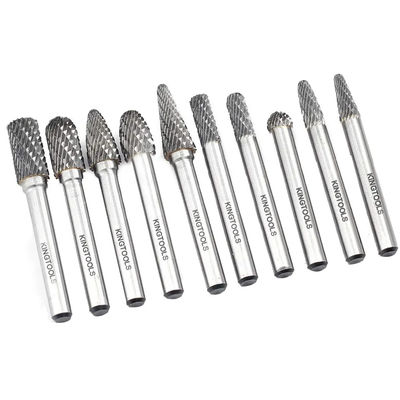

Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 1

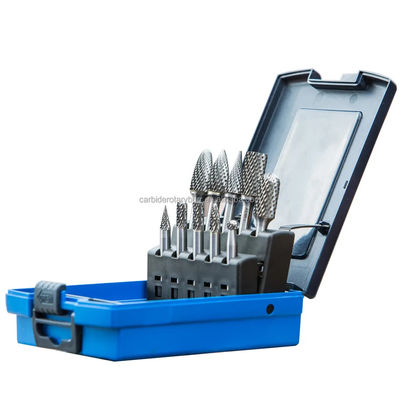

Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 2

Product Application

Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 3

Our Advantages

Why choose KTS?


Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 5
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 6
Company Introduction

Zigong Jincheng Cemented Carbide Tools Co., Ltd. is one of the market leaders in China that produces and sells rotary burrs, teeth, bars, blanks, alloy plates, nozzles and more. We were established in China in 2007. As a tool company from raw material to finished product processing and research, we can provide semi-finished products, finished products, customized services and other services. Our products have been exported to more than 30 countries and regions in the United States, Britain, Germany, France, Mexico, Canada, Russia, Japan, Australia, and the Middle East. Chengdu Jinyuan New Material Co., Ltd. is a subsidiary of Zigong Jincheng Cemented Carbide Tools Co., Ltd., which is committed to providing customers with quality services, products and preferential prices.
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 7
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 8
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 9
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 10

Risk guarantee

·100% raw material, no waste tungsten carbide added
·Do not use through hole, tail hole welding
·100% factory direct sales

Certifications

Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 11
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 12

Related Products

Packing&Shipping
Plastic box in Standard export carton
Grinding Engraving Polishing Tungsten Carbide Burr Set 10pcs 6mm For Metal Wood 13

1.Sea Transportation
2.Air Transportation
3.Land Transportation
4.Railway Transportation

FAQ


1. Could you please send me your catalog with price list?

A: Yes,catalog is OK, but kindly tell US the item NO.you like,will send quotation list asap.



2. May l order small quantity of carbide products?

A: Different models have different MOQ.You'd better contact US to confirm.



3. Can you provide sample?

A: Yes,please feel free to tell US the item NO. You prefer,also your own design is welcome to make sample for you.



4. When can you send me the carbide products afthe payment?

A: Around 30 days.



5. What is your price term,payment term and delivery terms?

A: Price Terms: By FOB Guangzhou,balance paid before shipent.

     Payment Terms: T/T in advance.

     Delivery Terms: By express,by air,by shipment or as per requirement.



6. What is your guarantee?

A: Before shipent our products will pass strict inspection, lf any problem be found,detail photos need to be provide 20 days after receving goods.After our confirmation,compensation will be offered accordingly.
