Cone Carbide Burr
Created with Pixso.

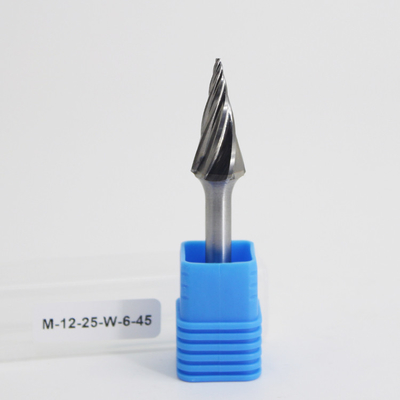

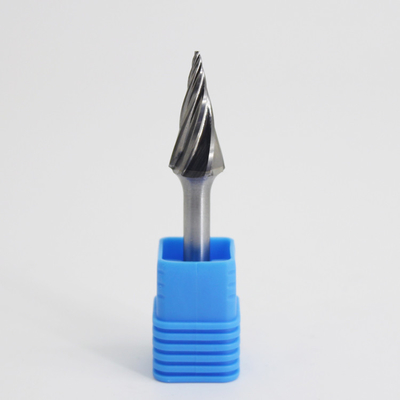

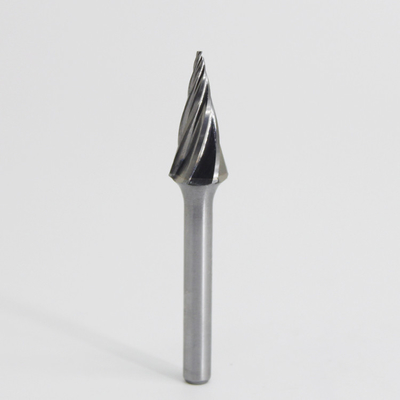

High Strength SM Cone Shape 6mm 1/4" Die Grinder Bits Carving Rotary Burrs High Speed

High Strength SM Cone Shape 6mm 1/4" Die Grinder Bits Carving Rotary Burrs High Speed

Brand Name: KTS
Model Number: Cone Pointed End
MOQ: 100 Piece/Pieces
Price: $1-10/Piece
Payment Terms: L/C,T/T,Western Union
Supply Ability: 250000 Piece/Pieces per Month
Detail Information
Place of Origin:
SICHUAN,CHINA
Certification:
ISO9001:2008
Material:
Tungsten Carbide
Shank Diameter:
3mm/6mm
Head Hardness:
HRA 89-92.5
Max Speed:
50,000 RPM
Cut Type:
Single/Double/Aluminum/Diamond
Grade:
YG6X YG6 YG8 YG8X
Packaging Details:
Standard export cartons
Highlight:

1/4 Die Grinder Bits

,

Cone Shape Die Grinder Bits

,

6mm Cone Carbide Burr

Product Description
Product Overview

The KTS SM Carbide Burr is a high-strength, cone-shaped rotary file with a pointed end, engineered for precision carving, grinding, and deburring. Manufactured from tungsten carbide with a head hardness of HRA 89–92.5, it delivers exceptional durability and cutting performance across both metallic and non-metallic materials. Available with 3 mm or 6 mm shanks and supplied in set packing, it is a reliable choice for demanding industrial and workshop applications.

Specifications
Product Name Tungsten Carbide Rotary Files Shank Diameter 3 mm / 6 mm
Brand KTS Packing Set Packing
Head Hardness HRA 89–92.5 Tool Speed 15,000–45,000 rpm
Material Tungsten Carbide Certificate ISO 9001:2008
Main Characteristics
  • Processes a wide range of metals (including quenched steels) and non-metallic materials such as marble, jade, and bone, with workpiece hardness up to HRC 70.
  • Replaces small grinding wheels in most operations, eliminating dust pollution.
  • Delivers excellent processing quality and high surface smoothness, ideal for high-precision machining of mold cavities.
  • Long service life — durability is ten times that of high-speed steel tools and more than 200 times that of small grinding wheels.
  • Easy to master and operate, safe and reliable, reducing labor intensity and improving working conditions.
  • High economic efficiency — comprehensive process costs can be reduced by up to 10 times. Typically driven by manual electric or pneumatic tools (also suitable for machine tools), with tool rotation speeds generally between 6,000 and 50,000 rpm.
Running Speeds

Maximum RPM by shank diameter: 3 mm (0.123") — 90,000 rpm; 6 mm (0.250") — 50,000 rpm; 10 mm (0.375") — 40,000 rpm; 12 mm (0.500") — 35,000 rpm; 16 mm (0.625") — 25,000 rpm.

Mat. No. 3 mm / 0.123" 6 mm / 0.250" 10 mm / 0.375" 12 mm / 0.500" 16 mm / 0.625"
1a 60,000–80,000 35,000–45,000 22,500–35,000 20,000–30,000 15,000–20,000
1b 60,000–80,000 30,000–45,000 19,000–30,000 15,000–22,500 12,000–18,000
2 60,000–80,000 30,000–45,000 19,000–30,000 15,000–22,500 12,000–18,000
3 45,000–80,000 22,500–45,000 15,000–35,000 11,000–30,000 9,000–20,000
4 60,000–80,000 30,000–45,000 19,000–30,000 15,000–22,500 12,000–18,000
5 60,000–80,000 30,000–45,000 19,000–30,000 15,000–22,500 12,000–18,000
6 45,000–80,000 22,500–45,000 15,000–35,000 11,000–30,000 3,000–20,000
7 30,000–80,000 15,000–45,000 10,000–35,000 7,000–30,000 6,000–20,000
8 30,000–80,000 15,000–45,000 10,000–35,000 7,000–30,000 6,000–20,000
9 60,000–80,000 30,000–45,000 19,000–30,000 15,000–22,500 12,000–18,000
Applications

Carving rotary burrs are used for fine processing of metal die cavities, mechanical chamfering, rounding, grooving, and for cleaning up burrs on castings, flashings on forgings, and welds on weldments. They are primarily used for grinding channel impellers, cleaning tubes, finishing mechanical internal surfaces, enlarging holes, and processing and engraving both metal and non-metal materials.

Application Scenario Materials
Metalworking Tungsten steel, stainless steel, aluminum, brass, etc.
Woodworking Hardwood, softwood, composite materials, etc.
Plastic Processing ABS, polyurethane, polyethylene, etc.
Fiberglass Processing Fiberglass-reinforced plastics, composite materials
Ceramic Processing Ceramic, tiles
Enamel Processing Metal, glass, ceramics
3D Printing Post-processing Printed plastics, resins
Cutting and Carving Crafts Wood carving, jade carving, ivory carving, etc.
Medical Device Manufacturing Stainless steel, titanium alloy, medical plastics, etc.
Automotive Repair Steel, aluminum alloy, plastic components, etc.
