Cone Carbide Burr
Created with Pixso.

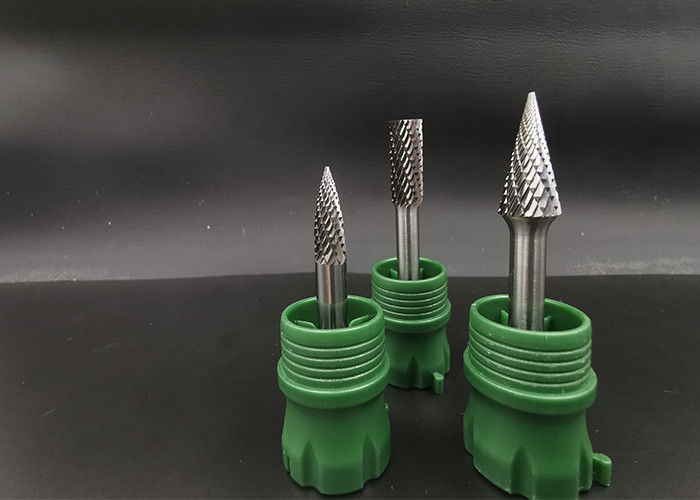

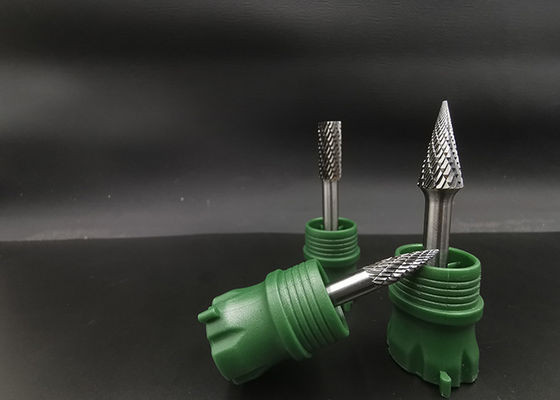

K20 Power Tools Tungsten 25mm Carbide Rotary Burr

K20 Power Tools Tungsten 25mm Carbide Rotary Burr

Brand Name: KTS
Model Number: Customized
MOQ: 100 Pieces
Price: $1-$10/Piece
Payment Terms: T/T,Western Union
Supply Ability: 250000 Piece/Pieces per Month
Detail Information
Place of Origin:
Sichuan, China
Certification:
ISO9001:2008
Material:
Tungsten Carbide
Grade:
K20/K30
Cut Type:
Single Cut/Double Cut/Diamond Cut
Size Range:
3-25mm
Max Speed:
35,000 RPM
Max Hardness:
HRC70
Packaging Details:
Plastic Case
Highlight:

25mm Carbide Rotary Burr

,

k20 Carbide Rotary Burr

Product Description
Product Overview

The K20 Power Tools Tungsten 25mm Carbide Rotary Burr is manufactured at our Zigong factory for professional-grade performance. Engineered with premium tungsten carbide, this rotary burr delivers exceptional durability and precision across a wide range of metal and non-metal materials.

Operating Guidelines
1. Speed / RPM

The speed at which you use your carbide burr in your rotary tool will depend on the material being worked and the contour being produced. It is safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows approximate recommended speeds.

Diameter of Burr Recommended RPM
1.6 mm or 1/16" 25,000 – 35,000
2.35 mm or 3/32" 17,000 – 26,000
3 mm or 1/8" 17,000 – 26,000
6 mm or 1/4" 11,000 – 16,500
12 mm or 1/2" 8,000 – 12,000
16 mm or 5/8" 7,650 – 11,500
2. Apply Only Light Pressure

As with all drill bits and burrs, let the burr do the work and apply only a little pressure. Excessive force will cause the cutting edges of the flutes to chip away or become smooth too quickly, reducing the life of your burr.

3. Keep the Carbide Burr Moving

When using your carbide burr, try not to keep it still for too long. Remaining stationary will cause the burr to dig and jab into your material, resulting in unsightly marks and roughness.

Advantages of Our Carbide Burrs
  • 100% quality and brand new.
  • Can process a variety of metal and non-metal materials, with processing hardness up to HRC70.
  • In a great part of the work, it can replace the petiole small wheel with no dust pollution.
  • High production efficiency — processing efficiency is several times higher than a file, and nearly 10 times higher than a small wheel stalk.
  • High product processing quality and high finish; can process a variety of high-precision mold cavities.
  • Long life — durability is 10 times higher than high-speed steel cutting tools and 200 times higher than a small grinding wheel.
  • Easy to use, safe and reliable; reduces labor intensity and improves the working environment.
  • Suitable for processing metal and non-metal materials such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, ceramic tile, marble, jade, bone, and more.
