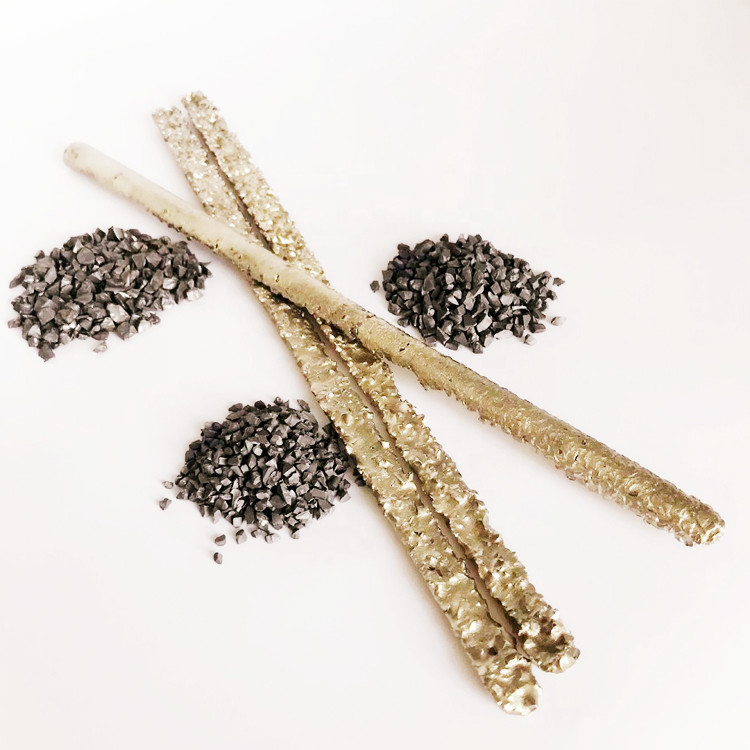

Tungsten Carbide Solder Composite Brazing Rods With Powders

10 KG
29.99-35.99 USD
Tungsten Carbide Solder Composite Brazing Rods With Powders
Features Gallery Product Description Request A Quote
Material: YGN70,YGC70,YGU70,YNN70
Operating Temperature: 890-950℃
Overall Length: 440~450mm
Color: Yellow Copper, Sliver
TRS: >690Mpa
Welding Current: 50-240A
Application: Copper, Stainless Steel, Steel Etc.
Particle Size: 1~3 3~5 4~6 5~7 8~10mm
High Light:

Tungsten Carbide Composite Brazing Rods


Tungsten Carbide Solder Powders


YGN70 Carbide Composite Rods

Basic Infomation
Place of Origin: China,Sichuan
Certification: ISO9001-2008
Model Number: Composite Welding Rods
Payment & Shipping Terms
Packaging Details: Foam paper + paper box
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram, paypal etc.
Supply Ability: >1ton per month
Product Description

Description of Composite Welding Rods :

  1. Tungsten carbide composite welding rod is made of cemented carbide particles and Ni/Ag(Cu)alloy. The carbide particles always be tungsten carbide crushed grits, carbide wear inserts, like the carbide star shape inserts, carbide pyramid shape inserts, shark shape inserts and so on. Sometimes, the carbide particles can be tungsten carbide powder.
  2. The economy choice is tungsten carbide crushed grits. If you want to higher durable than carbide grits, carbide inserts is better. However the cemented carbide/crushed carbide with sharp edge has excellent wear resistance and cutting ability too.
  3. The hardness is 89-91 HRA, the binder metal is Ni and copper alloy, strength can up to 690MPa, hardness HB≥160.
  4. To brief, most of the Composite rod made using crushed sintered Tungsten Carbide grains bonded with a bronze nickel matrix,(Cu 50 Zn 40 Ni 10) with a low melting point ( 870°C ).

Specifications of Nickel Bronze Alloy Composite Rod:

The grain sizes of the carbide particles:
  • 1/8-1/16 in. ( 3.2-1.6 mm )
  • 3/16-1/8 in. (4.8-3.2 mm)
  • 1/4-3/16 in. (6.3-4.8 mm)
  • 3/8-5/16 in. (9.5-7.9 mm)
  • 5/16-1/4 in. (7.9 -6.3 mm)
  • 3/8-1/4 in. (9.5-6.3 mm)
  • 1/2-5/16 in. (12.7-7.9 mm
Product Name
Hardfacing tungsten carbide composite welding rod
Tungsten carbide
Main market
North America, South America, Europe, Mid East, Africa
High hardness and strength, excellent wear resistance
70% WC+ 30% Matrix (Copper, Nickel and Zinc alloy)
Our standard packing (paper + carton box or inner box + outer box)or as request
By express( such as DHL, FeDex, TNT, UPS), by air or by sea

Composite Welding Rod with Copper matrix alloy: Composite Welding Rod with nickel matrix alloy:

AWS: RBCuZn-A                                                                           AWS: RBCuZn-D

Tungsten Carbide Solder Composite Brazing Rods With Powders 0              Tungsten Carbide Solder Composite Brazing Rods With Powders 1


Application of Composite Welding Rods:

Composite rod welding has been acknowledged throughout oil drilling, mining and construction industry worldwide for its extra hardness and high wear resistant properties. The use is even spreading to more industries and gets greater uses. Composite rod welding has wear and cutting properties coupled by high-end weld ability and low fuming, allowing the material to use in stabilizers, reamers, drill pipe joints, construction drilling, hydraulic-cutter, pipe cutter blades, core bit, scraper, twist drill, milling and grinding shoes etc.


Tungsten Carbide Solder Composite Brazing Rods With Powders 2

Moverlaying process of tungsten carbide copper Brazing Rod YD-5:

The oxyacetylene butt, the operating process is as follows:
(1) clean up the workpiece, make the welding workpieces surface with metallic luster.
(2) the flat position of welding, therefore can use the appropriate clamping fixture for control of surfacing layer thickness, thick piece of available.
(3) with a neutral flame preheating, flame core not contact surface, the distance to 25 mm is advisable.
(4) carbide surfacing welding layer.With YD type electrode surfacing, the use of neutral flame (can be slightly carbonizing flame) tip is steady on the workpiece surface movement, the flame of the alloy electrode heating (be careful not to make flame cone tip contact alloy particles), tire body in the electrode alloy melt, carbide particles are also falling.Before the tire body of molten metal solidification, the particles arrange, can use left hand of the alloy electrode fingers, or another person holding a base electrode or pull rod on graphite rod in a quick stir particles, making them evenly aligned neatly.Surfacing layer thickness control according to the requirements of design.
(5) after the workpiece welding, where no ventilation, slow cooling, cannot quench, conditional usable asbestos blanket cover.
(6) the workpiece after cooling to room temperature, if necessary, grinding surface surfacing to required size and shape.
(7) clean up the workpiece, remove all splash, slag, etc.


FAQ of Composite Welding Rods:

Q: Are you trading company or manufacturer ?

A: We are factory.


Q: How long is your delivery time?

A: Generally within 7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,it is according to quantity.


Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance, balance before shipment.
