3-5mm Crushed Tungsten Carbide Powder For Composite Rod

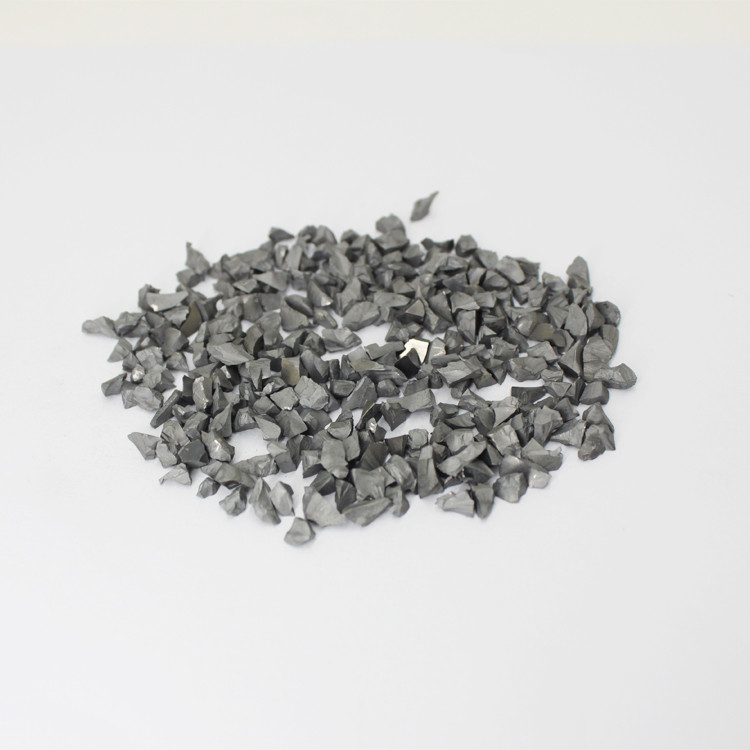

Description of Carbide Crashed Grits:

Tungsten carbide grits also called tungsten grits,carbide grits,it is used to welding or solder onto a steel body, to increase thewear resistance properties. For example, if a steel cutter can cut 24 hours without grits, it will cut 240 hours after with the tungsten carbide grits.

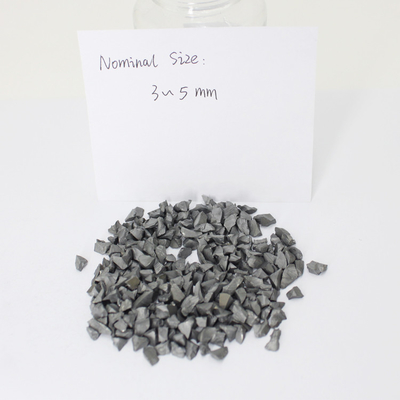

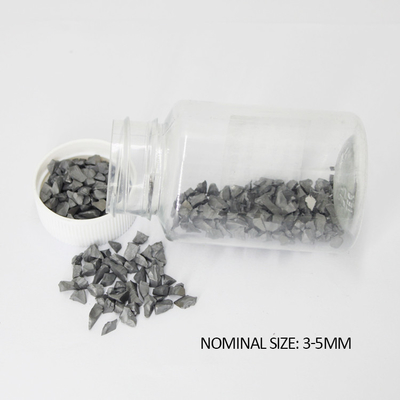

Szie Chart of Carbide Crashed Grits:

Application of Carbide Crashed Grits:

The tungsten carbide grits is suitable for hard facing material. 1 mesh to 12 mesh: used for wear-resistance electrode and mace electrode;

10 mesh to 60 mesh: used for saw blade or play a role of wear-resisting welding in the metal surface.

• 1) Ceramic, metal lapping, and polishing applications
• 2) Slicing of silicon carbide wafers
• 3) Rock and stone polishing and engraving
• 4) Slicing, lapping,and polishing glass and germanium wafers
• 5) Lapping of piston rings and gears
• 6) Grinding of nonferrous materials
• 7) Finishing tough and hard materials
• 8) Bonded abrasive tool applications
• 9) Glass etching and glass carving industries

Advantages of Carbide Crashed Grits:

• High thermal conductivity rating of 100 W/m-k
• Extremely hard : Mohs 9.1 or 2550 Knoop. Harder than aluminum oxide
• Blocky grain, will splinter as it breaks down, fast cutting speeds,great for recycling
• High strength at elevated temperatures
• Great for glass frosting & engraving,stone carving & etching, rock tumbling
• Grades 16 through 1500 available
