| Brand Name: | KINGTOOLS |
| Model Number: | 13 Type |
| MOQ: | 10 |
| Price: | $1.99-3.99 |

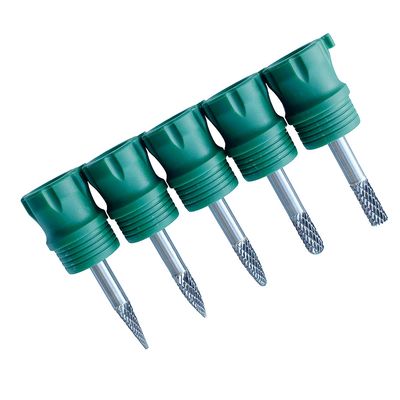

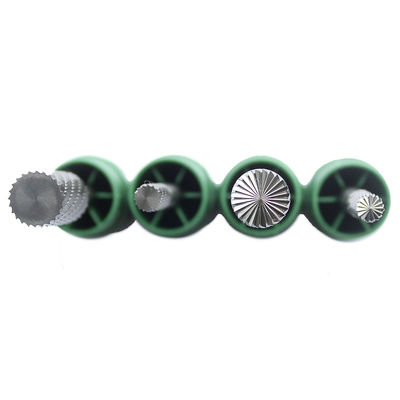

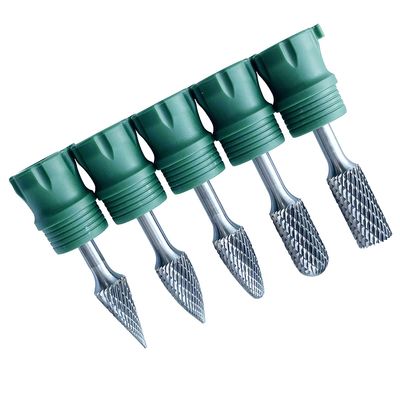

The 1/4 Inch Shank Tungsten Carbide Burr Set delivers high-performance stock removal for grinding, deburring, carving, and engraving tasks. Manufactured with premium YG6, YG8, and YG10X carbide heads, these double-cut rotary files are engineered for precision, durability, and long service life across metal and non-metal applications.
| Recommended Grade | YG8, YG10X for carbide head; steel for shank diameter |
|---|---|
| Size Range | Head diameter: 3–35 mm; Shank diameter: 3 mm, 6 mm, 8 mm; increased length available |
| Tolerance | Head diameter: +0.3 to +0.5 mm; Head cutting part: +0.5 to +1.0 mm; Shank diameter: +0 to +0.04 mm; Total length: ±0.1 mm |
| Set Options | 3, 5, 6, 8, 10, 12, or 14 pcs in aluminum or plastic sets; items selectable per client demand |
| Applications | Milling, weld dressing, deburring, cutting out holes, surface work |
| Hardness (HRA) | ≥ 85 |
| Suggested RPM | 25,000–50,000; Max RPM 70,000 |
| Technology | 100% flat bottom silver welding tungsten carbide burrs |
| Packaging | Individually packaged; customizable |
KINGTOOLS produces an extensive range of top-quality carbide burs and bi-metal hole saws. KINGTOOLS burs deliver very high stock removal performance over their entire service life, providing outstanding results in minimal time.
Chengdu Joint Carbide Co., Ltd. has introduced the most advanced international five-axis five-linkage CNC tool grinder, three-coordinate tool detector, and other equipment from Germany. The aim is to produce high-quality, internationally competitive products using internationally advanced equipment, supported by a mature R&D team and management team in China and a stable supply chain.
Our company has completed the accumulation of various infrastructure and technology research and development. Since 2020, we have added 100 five-axis five-linkage rotary grinders, and currently 180 units are in use. By 2023, our company will invest in a total of 300 five-axis five-linkage rotary grinders (total value 150 million RMB). By then, our company will become the world's largest supply base for rotary files. We look forward to the joining of people with lofty ideals to complete the company's dream together.

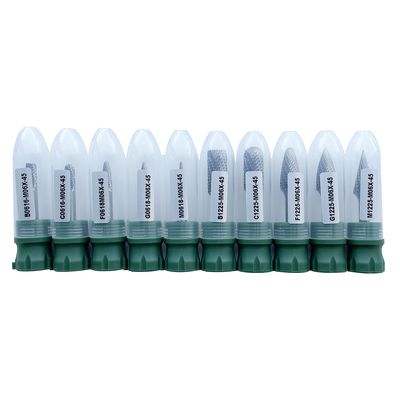

Each product is supplied in a separate plastic box. According to the different quantities you need, we will provide you with different packaging options tailored to your requirements.
1. Could your company send me the catalog with a price list?
KTS: Yes, a catalog is available. Kindly tell us the item models you want, and our salesmen will send a quotation list as soon as possible.
2. May I order a small quantity of carbide products?
KTS: Yes, but different models have different MOQs. Please contact us to confirm.
3. Can your company provide samples?
KTS: Yes. Please feel free to tell us the item models you prefer. Your own designs are also welcome for custom samples.
4. When can your company deliver the carbide products after payment?
KTS: Usually around 7–15 days.
5. What are your price, payment, and delivery terms?
KTS: Price Terms: FOB Guangzhou price; balance paid before shipment. Payment Terms: T/T in advance. Delivery Terms: by express, by air, by shipment, or as per requirement.
6. What is your company's guarantee?
KTS: The products will pass strict inspection before shipment. If any problems are found, detailed photos need to be provided within 20 days after receiving the goods. After our confirmation, compensation will be offered accordingly.
