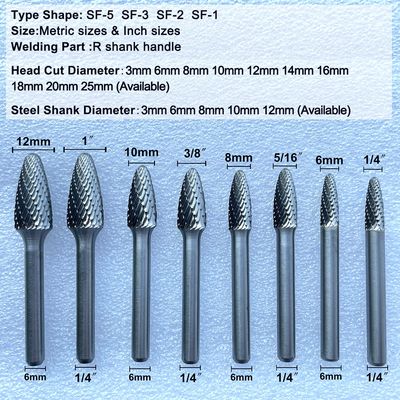

Factory High Quality 6mm 1/4" Shank Diameter Sf-5 Sf-3 Sf-2 Sf-1Steel Rotary Carbide Burs Burr Set Tungsten Carbide Rotary Drill

Brand Name:	KINGTOOLS
Model Number:	Type F-Tree Shape With Radius End Burrs
MOQ:	10
Price:	$0.99-5.59

Detail Information

Product Description

Detail Information

Place of Origin:

Sichuan, China

Shank Diameter:

1/4", 1/8", 1/2", 3mm, 6mm, 8mm

Material:

Tungsten Carbide

Head Diameter:

3-25 Mm

Chipbreaker:

Single/Double/Aluma/Diamond Cut

Head Length:

6-36 Mm

Overall Length:

38-81mm

Shank Hardness:

HRA 89-92.5

Tool Speed:

15000-45000 Turn/min

Grade:

YG6, YG8, YG8C, YG11C, YG15C

Suggested RPM:

25000-50000

Max RPM:

70000

Hardness:

HRA ≥ 85

Cutter Pattern:

Double Cut, Coarse Cut, Standard Single Cut, Aluminum Cut Single Cut, Fine Single Cut, Cast Single Cut, Standard Cross Gear Cut, Casting Cross Cut, Diamond Cut, Steel File Cross Cut, Fine Tooth Cross Cut, Coarse Cross Cut, Aluminum Cut Cross Cut

Technology:

100% Flat Bottom Silver Welding Tungsten Carbide Burrs

Workpiece Compatibility:

Steel, Stainless Steel, Alloy Steel, Cast Iron, Plastic, Wood

Highlight:

Tungsten carbide rotary burr set

6mm double cut carbide burr

1/4 shank carbide burr

Product Description

Products Description

Product name	Factory High Quality 6mm 1/4" Shank Diameter Sf-5 Sf-3 Sf-2 Sf-1Steel Rotary Carbide Burs Burr Set Tungsten Carbide Rotary Drill Burr
Brand	KINGTOOLS
Material	Tungsten Carbide
Shank	HRA 89-92.5 hardness
Shank diamter	3mm/6mm/8mm/10mm/12mm/14mm/16mm...
Speed of tool	15000-45000Turn/min
Grade	YG6, YG8, YG8C, YG11C,YG15C
Certificate	ISO9001:2008
Sample	Free

Details

Cutter Pattern	^{* DX: Double Cut} ^{* C: Coarse Cut} ^{* M: Standard Single Cut} ^{* W: Aluminum Cut Single Cut} ^{* F: Fine Single Cut} ^{* Z: Cast Single Cut} ^{* MX: Standard Cross Gear Cut} ^{* ZX: Casting Cross Cut} ^{* L: Diamond Cut} ^{* SX: Steel File Cross Cut} ^{* FX: Fine Tooth Cross Cut} ^{* CX: Coarse Cross Cut} ^{* WX: Aluminum Cut Cross Cut}
Features	Used to process all kinds of metal (including hardened steel) and nonmetal High production efficiency, Can reduce labor intensity convenient to use. * Widely used in the pneumatic or electric tools.
Specification	* HRA: ≥ 85 * Suggested RPM:25000-50000, Max RPM 70000 * Package:Individually packaged and can be customized * Technology:100% Flat bottom silver welding tungsten carbide burrs

Why Choose Us

Hot Sale Product

Company Profile

Chengdu Joint Carbide Co.,Ltd （We have our own factory for wholesale sales）

Our company introduced the most advanced international five-axis five-linkage CNC tool grinder, three-coordinate tool detector and other equipment from Germany. The aim is to produce high-quality, internationally competitive products using internationally advanced equipment. with a mature R&D team and management team in China, and a stable supply chain. Our company has completed the accumulation of various infrastructure and technology research and development. Since 2020, our company has added 100 five-axis five-linkage rotary grinders, and currently 180 units are in use. By 2023, our company will invest a total of 300 five-axis five-link rotary grinders (total value 150 million RMB). By then, our company will become the world's largest supply base for rotary files.We look forward to the joining of people with lofty ideals to complete the company's dream together.

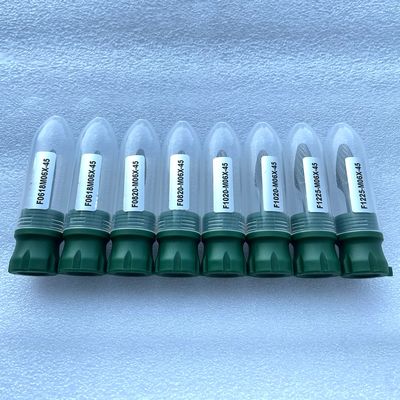

Packaging
