Double Cut Carbide Burr
Created with Pixso.

Power Tools Set 6mm 1/8 Shank Carving Metal Engraving Single Standard Cut One Set 10 Tungsten Steel Carbide Burr

Power Tools Set 6mm 1/8 Shank Carving Metal Engraving Single Standard Cut One Set 10 Tungsten Steel Carbide Burr

Brand Name: KINGTOOLS
Model Number: 13 Type
MOQ: 2
Price: $1.99-3.99
Detail Information
Place of Origin:
Sichuan, China
Material:
Tungsten Carbide
Max RPM:
35,000 RPM
Overall Length:
38-81mm
Head Diameter:
3-25 Mm
Shank Diameter:
1/4", 1/8", 1/2", 3mm, 6mm, 8mm
Grade:
YG7, YG8
Highlight:

tungsten carbide burr set for metal

,

double cut carbide burr 6mm shank

,

metal engraving carbide burr set

Product Description
Product Specifications
Product Name 1/4" Shank Burrs Tool Bit, 6mm / 3mm Double Cut Carving Grinder Bit, Engraving Tungsten Carbide Burr Set, Rotary File
Brand KINGTOOLS
Material 100% Tungsten Carbide
Shank Hardness HRA 89–92.5
Shank Diameter 3mm / 6mm / 8mm / 10mm / 12mm / 14mm / 16mm and more
Tool Speed 15,000–45,000 RPM
Grade YG7, YG8
Certificate ISO9001:2008
Product Overview

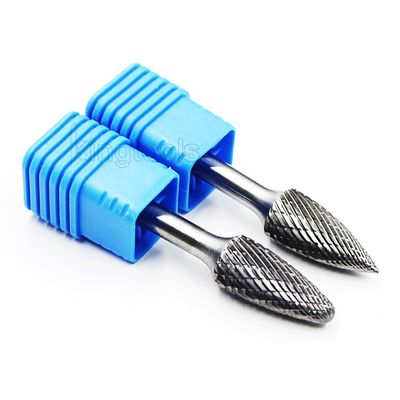

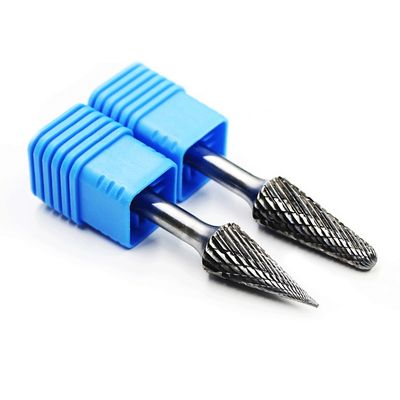

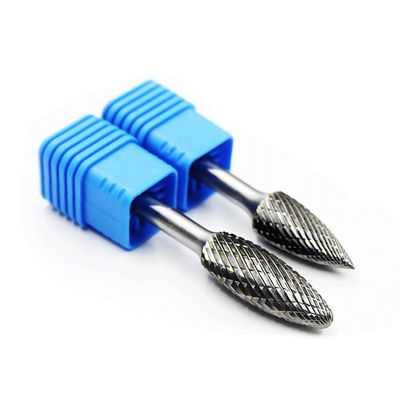

Tungsten carbide rotary burr set with assorted head shapes and shank sizes

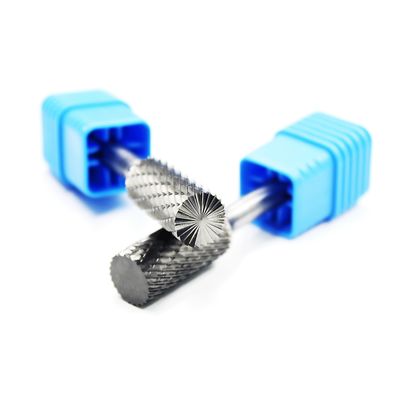

Close-up of tungsten carbide burr cutting heads showing single and double cut flutes
Metric & Inch Size Options
Metric size chart for carbide burr cutting head diameters
Inch size chart for carbide burr cutting head diameters
Carbide burr head shape reference diagram
Carbide burr shank diameter measurement illustration
Carbide burr cutting head length and diameter dimensions
Carbide burr dimensional specification reference
Carbide burr size comparison chart
Carbide burr head shape and size selection guide
Head Cut & Shank Diameter Availability
Burr Shank Diameter Options — Customization Supported
  • 3.0mm (1/8") Shank Diameter — Suitable for carbide burr cutting head diameters from 1.0mm to 6.0mm.
  • 6.0mm (1/4") Shank Diameter — Suitable for carbide burr cutting head diameters from 6.0mm to 25.0mm.
  • 8.0mm (5/16") Shank Diameter — Suitable for carbide burr cutting head diameters from 12.0mm to 25.0mm.
  • 10.0mm (3/8") Shank Diameter — Suitable for carbide burr cutting head diameters from 16.0mm to 25.0mm.
Carbide burr shank diameter options with cutting head size ranges
Carbide burr shank and head diameter compatibility chart
Cut Types & Application Scenarios
Customization is supported across all cut types. Choose the flute style that best matches your material and finish requirements.
  • Single-Cut Burrs: Designed for general-purpose work, providing good material removal rates.
  • Double-Cut Burrs: Produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.
  • Aluma-Cut Burrs: Feature a wide flute design for easy stock removal without loading on nonferrous and soft materials.
  • Standard-Cut Burrs: Widely used and leave a fine finish.
Comparison of single-cut, double-cut, and aluma-cut carbide burr flute designs
Carbide burr cut types applied to different workpiece materials
Recommended Speed (RPM)
Burr Size Recommended RPM
1.6mm or 1/16"25,000 – 35,000
2.35mm or 3/32"25,000 – 35,000
3mm or 1/8"25,000 – 35,000
6mm or 1/4"25,000 – 35,000
12mm or 1/2"25,000 – 35,000
16mm or 5/8"25,000 – 35,000
Rotating Speed Guidance
The speed at which you use your carbide burr in a rotary tool depends on the material being worked and the contour being produced. In general, you do not need to exceed 35,000 RPM. The table above shows approximate recommended speeds.
Recommended RPM chart for carbide burrs by size and material
Our Advantages
KINGTOOLS carbide burr manufacturing advantages overview
Hot Sale Products
Popular KINGTOOLS carbide burr and rotary file products
Company Profile
KINGTOOLS manufacturing facility and production equipment
1. Our Company
Our company is committed to providing high-precision, high-speed, and efficient metal polishing overall solutions and services for the machinery manufacturing industry. We have introduced the most advanced international five-axis five-linkage CNC tool grinders, three-coordinate tool detectors, and other equipment from Germany. Our aim is to produce high-quality, internationally competitive products using internationally advanced equipment. Today, our company has become the largest rotary file production base in the country, with a mature R&D team and management team in China, and a stable supply chain. As a metal cutting tool, our rotary files have been exported to Europe, North America, South America, and a number of Southeast Asian countries.
KINGTOOLS five-axis CNC tool grinding equipment
2. Infrastructure & Capacity Growth
In recent years, the company has completed the accumulation of various infrastructure and technology research and development. Since 2020, our company has added 100 five-axis five-linkage rotary grinders. By 2023, our company will have invested in a total of 300 five-axis five-linkage rotary grinders (total value of 150 million yuan). By then, our company will become the world's largest supply base for rotary files.
KINGTOOLS production capacity expansion and grinder fleet
3. Mission, Vision & Values
  • Our Mission: To provide the best overall polishing solution for the machinery manufacturing industry.
  • Our Vision: To become the world's largest production base for grinding and cutting tools.
  • Our Values: Pragmatic, honest, positive, and enterprising.
Packing & Shipping
KINGTOOLS carbide burr packing and shipping standards
FAQ
Frequently asked questions about KINGTOOLS carbide burrs
Additional FAQ information for carbide burr products
