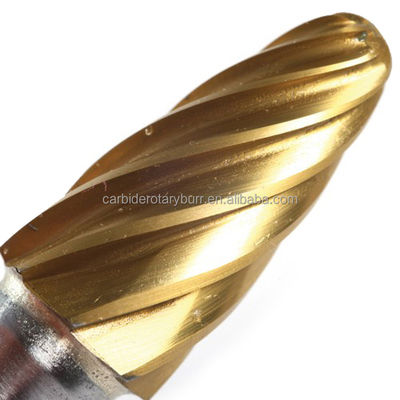

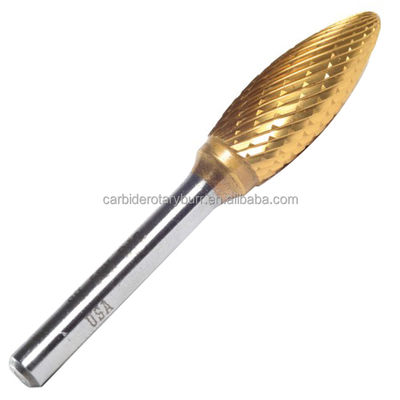

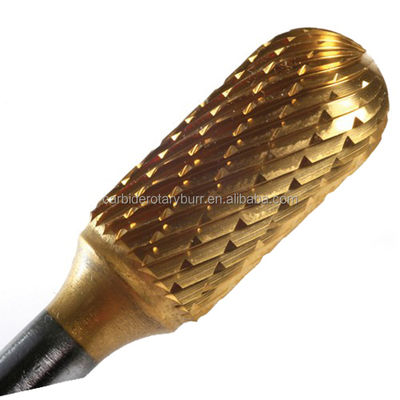

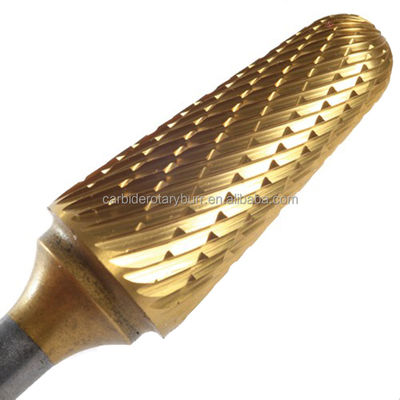

Customized High Quality Power Tools Parts Gold Coated Electric Hardware Grinding Tool Yellow Coating Tungsten Carbide Burrs

Brand Name:	KINGTOOLS
Model Number:	Type A-N
MOQ:	10
Price:	$2.99-5.99

Detail Information

Product Description

Detail Information

Place of Origin:

China

Shank Diameter:

3, 6, 8, 10, 12, 14, 16 Mm

Head Diameter:

3-25 Mm

Head Length:

6-36 Mm

Overall Length:

38-81 Mm

Material:

Tungsten Carbide

Chipbreaker:

Single/Double/Aluma/Diamond Cut

No-load Speed:

15000-45000 RPM

Max Drilling Diameter:

25 Mm

Shank Hardness:

HRA 89-92.5

Speed Range:

25000-35000 RPM

Grade:

YG6, YG7

Workpiece Compatibility:

Steel/Stainless Steel/Alloy Steel/Cast Iron/Plastic/Wood

Processing Hardness:

Up To HRC70

Shank Types:

3.0mm, 6.0mm, 8.0mm, 10.0mm, 12.0mm

Cut Types:

Single-cut, Double-cut, Aluma-cut, Standard-cut

Highlight:

double cut carbide burrs for metal

tungsten carbide rotary files

carbide burrs with double cut

Product Description

Products Description

We Are Factory	We have 20 years of experience in the production and development of cemented carbide
Name	Factory wholesale sales Carving Grinder Bit Engraving Rotary File Tungsten Carbide Burr
Brand	KINGTOOLS
Shank	HRA 89-92.5 hardness
Material	100% new raw materials
Speed	15000-45000Turn/min
Grade	YG6, YG7
Certificate	ISO9001:2008
Customized	OEM & ODM

Advantage of our carbide burrs
China cemented carbide production and wholesaler, factory source supply, large inventory, instant delivery, follow the store to enjoy discounts

1、100% quality and brand new.

2、Can Process a variety of metal and non-metal, processing hardness would up to HRC70.
3、In a great part of the work, it can replace the petiole small wheel, and no dust pollution. High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.

4、High product processing quality, high finish, can process out a various of high-precision mold cavity.

5、Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
6、Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.

7、Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel,
chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.

8、Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness

Sample testing contact us for free samples （Customed）

Miniature & Regular Sizes Single cut & Double cut & Aluminum Cut & Diamond Cut & Coarse Cut etc

NOTE：If you place an order without telling the model, quantity and tooth, we will send SF-5 by default

Speed /RPM

1.6mm or 1/16" 25,000 - 35,000

2.35mm or 3/32" 25,000 - 35,000

3mm or 1/8" 25,000 - 35,000

6mm or 1/4"25,000 - 35,000

12mmor 1/2" 25,000 - 35,000

16mm or 5/8"25,000 - 35,000

Rotating Speed

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.

1.100% Solid High Quality Flat Bottom Silver Welding，Disposable material tungsten carbide rejects old material

2. Support head diameter and head toothing, shank length and diameter customization

3. Support Support product model, size customization of boxes, Logos, labels, coatings, etc.

4. We are the largest cemented carbide manufacturer in China, and our products are exported to 50 countries and are well received

5. We have 4 factories, each factory covers an area of 20,000 square meters, and the factory price is sold

6. We only produce high quality carbide burr with the same quality as ATA PFERD to support product testing

Metric Size & Inch Size

SA:Cylinder Shape Burrs

A0616MX06-45 A0820MX06-45 A1020MX06-45 A1225MX06-45 A1625MX06-45 A2025MX06-45 A2525MX06-45

SB:Cylinder Shape with End Cut Burrs

B0616MX06-45 B0820MX06-45 B1020MX06-45 B1225MX06-45 B1625MX06-45 B2025MX06-45 B2525MX06-45

SC:Cylinder Shape with Radius End Burrs

C0616MX06-45 C0820MX06-45 C1020MX06-45 C1225MX06-45 C1625MX06-45 C2025MX06-45 C2525MX06-45

SD:Ball Shape Burrs

D0605MX06-45 D0807MX06-45 D1009MX06-45 D1210MX06-45 D1614MX06-45 D2018MX06-45 D2521MX06-45

SE:Oval Shape Burrs

E0610MX06-45 E0813MX06-45 E1016MX06-45 E1220MX06-45 E1625MX06-45 E2025MX06-45

SF:Tree Shape with Radius End Burrs

F0618MX06-45 F0820MX06-45 F1020MX06-45 F1225MX06-45 F1625MX06-45 F2032MX06-45 F2525MX06-45

SG:Tree Shape with Pointed End Burrs

G0618MX06-45 G0820MX06-45 G1020MX06-45 G1225MX06-45 G1625MX06-45 G1825MX06-45 G1925MX06-45

SH:Flame Shape Burrs

H0618MX06-45 H0820MX06-45 H1025MX06-45 H1232MX06-45 H1636MX06-45 H1941MX06-45

SJ:60 Cone Shape Burrs

J0603MX06-45 J0804MX06-45 J1005MX06-45 J1206MX06-45 J1608MX06-45 J2512MX06-45 J3517MX06-45

SK:90 Cone Shape Burrs

K0603MX06-45 K0804MX06-45 K1005MX06-45 K1206MX06-45 K1608MX06-45 K2512MX06-45 K3517MX06-45

SL:Taper with Radius End Burrs

L0616MX06-45 L0822MX06-45 L1025MX06-45 L1228MX06-45 L1633MX06-45 L2031MX06-45

SM:Cone Shape Burrs

M0618MX06-45 M0820MX06-45 M1020MX06-45 M1225MX06-45 M1625MX06-45 M1925MX06-45

SN:Inverted Cone Shape Burrs

N0607MX06-45 N0809MX06-45 N1010MX06-45 N1213MX06-45 N1616MX06-45

ST:RAR Burrs

RAR0607MX06-45 RAR0809MX06-45 RAR1010MX06-45 RAR1213MX06-45 RAR1616MX06-45

Head Cut & Shank Dia Available

Burr Shank Dia. Available

Support Customized

3.0mm /3.17mm (1/8") Shank Diameter
Applicable to carbide burr cutting head diameter range 1.0-6.0mm.

6.0mm /6.35mm (1/4") Shank Diameter
Applicable to carbide burr cutting head diameter range 6.0-25.0mm.
8.0mm /7.93mm (5/16") Shank Dia
Applicable to carbide burr cutting head diameter range 12.0-25.0mm.
10.0mm /9.52mm (3/8") Shank Dia
Applicable to carbide burr cutting head diameter range 16.0-25.0mm.
12.0mm /12.7mm(1/2") Shank Diameter

Head Cut Different Usage Scenarios Support Customized

Head Diameter :3mm-25mm(1/8"-1”)

Single-cut burs ：are for general purpose work and provide good material removal.
Double-cut burs ：produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.
Aluma-cut burs ：have a wide flute design for easy stock removal without loading on applications such as nonferrous
Standard-cut burs ：are widely uesed and leave a fine finish

Our Advantages

Hot Sale Product

Company Profile

1、Our Company is committed to providing high-precision, high-speed and efficient metal polishing overall solutions and services for the machinery manufacturing industry. The company introduced the most advanced international five-axis five-linkage CNC tool grinder, three-coordinate tool detector and other equipment from Germany. The aim is to produce high-quality, internationally competitive products using internationally advanced equipment. At present, our company has become the largest rotary file production base in the country, with a mature R&D team and management team in China, and a stable supply chain. As a metal cutting tool, the rotary file has been exported to Europe, North America, South America and a small number of Southeast Asian countries.

2、A few days ago, the company has completed the accumulation of various infrastructure and technology research and development.Since 2020, our company has added 100 five-axis and five-linkage rotary grinders. By 2023, our company will invest a total of 300 five-axis and five-linkage rotary grinders. Grinding machine (total value 150 million yuan). By then, our company will become the world's largest supply base for rotary files.

3、Our mission: to provide the best overall polishing solution for the machinery manufacturing industry; Our vision: to become the world's largest production base for grinding and cutting tools; Our values: pragmatic, honest, positive, enterprising

Packing & Shipping

FAQ

Q1: Are you a factory or a trading company? A1: We are the source of the largest cemented carbide factory in China, a supplier integrating R&D, production and sales, with more than 23 years of production and R&D experience. Q2: What products do you sell? A2: Main sales: tungsten carbide rotary file burr, blank, tire file, tungsten carbide semi-finished product, milling cutter, bar, etc. Q3: How does your factory do in terms of quality control? A3: All products will adopt double quality inspection before shipment: 100% inspection by human + robot, provide high-quality products, and also shoot video or pictures to send to you. Q4: When can I get the price? A4: We will arrange a one-to-one quotation from the sales manager within 2 hours after receiving your inquiry. Q5: How can I get samples? A5: Contact us, we can provide you with free samples for grinding test, you can choose any model. Q6: What are your sales models? A6: Supply for major e-commerce platforms, such as: Amazon, eBay, AliExpress, Google website, etc. Q7: What is the mode of transportation? A7: According to the weight of the goods, we can transfer by express, air and sea, including DHL, UPS, TNT and FEDEX.
