Tire Reamer Bit
Created with Pixso.

6MM Tire Repair Carbide Bits / High Dtrength Tire Reamer For Drill

6MM Tire Repair Carbide Bits / High Dtrength Tire Reamer For Drill

Brand Name: KTS
Model Number: Customized
MOQ: 5 Piece/Pieces
Price: $1.00 - $10.00 / Pieces
Payment Terms: L/C,D/A,D/P,T/T,Western Union,
Supply Ability: 250000 Piece/Pieces per Month
Detail Information
Place of Origin:
Sichuan, China
Certification:
ISO9001:2008
Shank Diameter:
6mm
Material:
Tungsten Carbide
Grade:
YG 8
Shank Hardness:
HRA 89-92.5
Speed Range:
15000-45000 Turn/min
Size:
6mm
Packaging Details:
Plastic box in Standard export carton
Highlight:

tire reamer drill bit

,

tire carbide cutter

Product Description
6MM Tungsten Carbide Tire Repair Bit

High-strength tire reamer burr engineered for fast, precise, and durable tire repair work.

Product Name Tire Repair File Burrs Shank Diameter 6 mm
Brand KTS Packing Set packing
Shank Hardness HRA 89–92.5 Tool Speed 15,000–45,000 rpm
Material Tungsten Carbide Certificate ISO 9001:2008

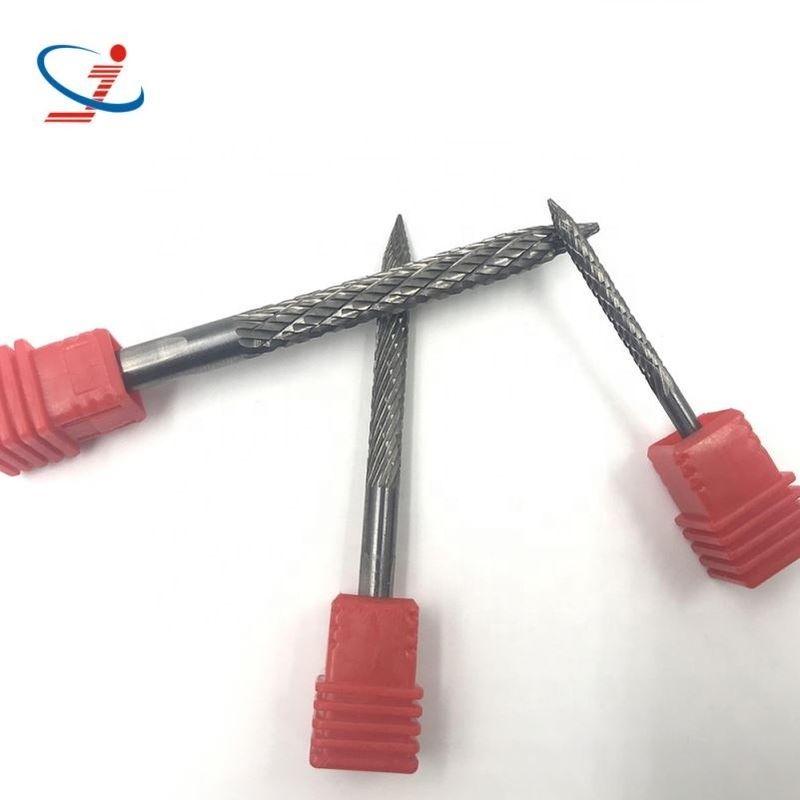

6mm tungsten carbide tire repair burr bit with shank, close-up view
Set of KTS carbide tire repair file burrs arranged on a workbench
How to Use the Carbide Burr
1. Speed / RPM

The speed at which you use your carbide burr in a rotary tool depends on the material being worked and the contour being produced. In general, you do not need to exceed 35,000 rpm. The table below shows approximate recommended speeds.

Diameter of Burr Recommended RPM
2.35 mm or 3/32" 17,000 – 26,000
3 mm or 1/8" 17,000 – 26,000
6 mm or 1/4" 11,000 – 16,500
12 mm or 1/2" 8,000 – 12,000
16 mm or 5/8" 7,650 – 11,500
2. Apply Only Light Pressure

As with all drill bits and burrs, let the tool do the work. Apply only a little pressure — otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.

3. Keep the Carbide Burr Moving

When using your carbide burr, avoid keeping it still for too long. Staying in one spot prevents the burr from cutting cleanly and can cause it to dig and jab into the material, leaving unsightly marks and roughness.

Advantages of Our Carbide Burrs
  • 100% quality and brand new.
  • Can process a wide variety of metal and non-metal materials, with processing hardness up to HRA 89–92.5.
  • In a great part of the work, it can replace the petiole small wheel with no dust pollution.
  • High production efficiency — processing efficiency is several times higher than a file and nearly 10 times higher than a small wheel stalk.
  • High product processing quality and high finish; can process a variety of high-precision mold cavities.
  • Long life — durability is 10 times higher than high-speed steel cutting tools and 200 times higher than small grinding wheels.
  • Easy to use, safe and reliable; reduces labor intensity and improves the working environment.
  • Suitable for processing metal and non-metal materials such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, ceramic tile, marble, jade, bone, and more.
Diagram showing carbide burr applications across metal and non-metal materials
OEM & Customization

We will use our several years of OEM experience to integrate the features you want. Customer designs are available.

  1. We can accept orders for all kinds of specially designed tungsten carbide products.
  2. Material: 100% raw material.
  3. Delivery: within 20–30 days upon confirmation of the prepaid order.

We can also produce according to client-offered drawings or sizes, and accept small orders.

FAQ
Frequently asked questions about KTS carbide tire repair burrs
1. Could you please send me your catalog with a price list?

Yes, the catalog is available. Kindly tell us the item number you are interested in, and we will send a quotation list as soon as possible.

2. May I order a small quantity of carbide products?

Different models have different MOQs. Please contact us to confirm the minimum order quantity for your chosen item.

3. Can you provide samples?

Yes. Please feel free to tell us the item number you prefer. Your own design is also welcome, and we can make a sample for you.

4. When can you send me the carbide products after payment?

Around 30 days.

5. What are your price, payment, and delivery terms?

Price Terms: FOB Guangzhou; balance paid before shipment.
Payment Terms: T/T in advance.
Delivery Terms: by express, by air, by shipment, or as per requirement.

6. What is your guarantee?

Before shipment, our products pass strict inspection. If any problem is found, detailed photos must be provided within 20 days after receiving the goods. After our confirmation, compensation will be offered accordingly.
