3mm Carbide Rotary Burr Generic Speed Steel Tungsten Rotary Tool Grinding Bits

100 Pieces
MOQ
$1-$10/Piece
Price
3mm Carbide Rotary Burr Generic Speed Steel Tungsten Rotary Tool Grinding Bits
Features Gallery Product Description Request A Quote
Features
Specifications
Types: Grinding Bits
Speed: 10000-20000RPM
Size: 3-25mm
Shape: Oval Shape
Shank: Stainless Steel
High Light:

rotary burr cutter

,

carbide rotary file

Basic Infomation
Place of Origin: Sichuan, China
Brand Name: KTS
Certification: ISO9001:2008
Model Number: Custom
Payment & Shipping Terms
Packaging Details: Plastic Case
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union
Supply Ability: 250000 Piece/Pieces per Month
Product Description

3mm Carbide Rotary Burr Generic Speed Steel Tungsten Rotary Tool Grinding Bits



Carbide Burrs Commonly Come in Two Cuts; Single Cut and Double Cut (Diamond Cut)

  Single cut (one flute) carbide burrs have a right handed (Up cut) spiral flute. These tend to be used with stainless steel, hardened steel, copper, cast iron, and ferrous metals and will remove material quickly with a smooth finish. Use for heavy stock removal, milling, deburring and cleaning.

  • Heavy removal of material
  • Milling
  • Deburring
  • Cleaning
  • Creates long chips

  Double cut carbide burrs tend to be used on ferrous and non ferrous metals, aluminium, soft steel and also for all non-metal materials such as plastics and wood. They have more cutting edges and will remove material faster. Double cut are sometimes referrred to as Diamond Cut or Cross Cut (2 flutes cut across each other) will leave a smoother finish than single cut due to producing smaller chips as they cut away the material. Use for medium-light stock removal, deburring, finishing and cleaning. A double cut carbide burr is the most popular cut and will see you through most applications.

  • Medium- light removal of material
  • Deburring
  • Fine finishing
  • Cleaning
  • Smooth finish
  • Creates small chips

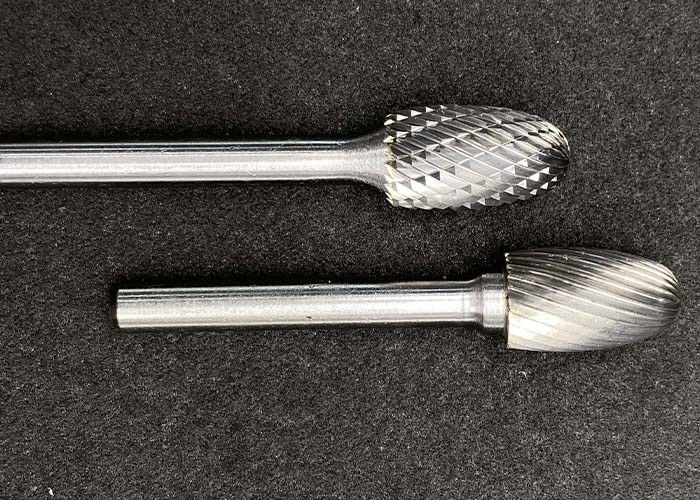

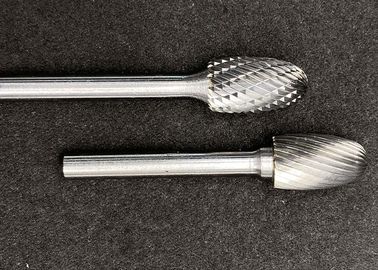

The below image indicates the double cut, single cut and again, the double cut or diamond cut.
