High Performance Flame Carbide Burr Tungsten Carbide Grinding Bit

High Performance Flame Carbide Burr Tungsten Carbide Grinding Bit

Brand Name: KTS
Model Number: Customized
MOQ: 10 Piece/Pieces
Price: $0.75 - $10.00 / Pieces
Payment Terms: L/C,D/A,D/P,Western Union,T/T,
Supply Ability: 300000 Piece/Pieces per Month
Detail Information
Place of Origin:
Sichuan, China
Certification:
ISO9001:2008
Material:
Tungsten Carbide
Shank Material:
40 Cr
Shank Hardness:
HRA 89-92.5
Shank Diameter:
3mm/6mm/8mm/10mm
Tolerance:
+/-0.01mm
Speed Range:
15000-45000 Turn/min
Packaging Details:
Plastic box in Standard export carton
Highlight:

flame shaped finishing bur

,

rotary deburring bits

Product Description
Product Overview

Factory-direct, full-size F-shape tungsten carbide rotary files (burrs) with a 6mm shank. Manufactured from 100% virgin raw material and engineered for high hardness, impact toughness, and excellent mechanical and chemical stability.

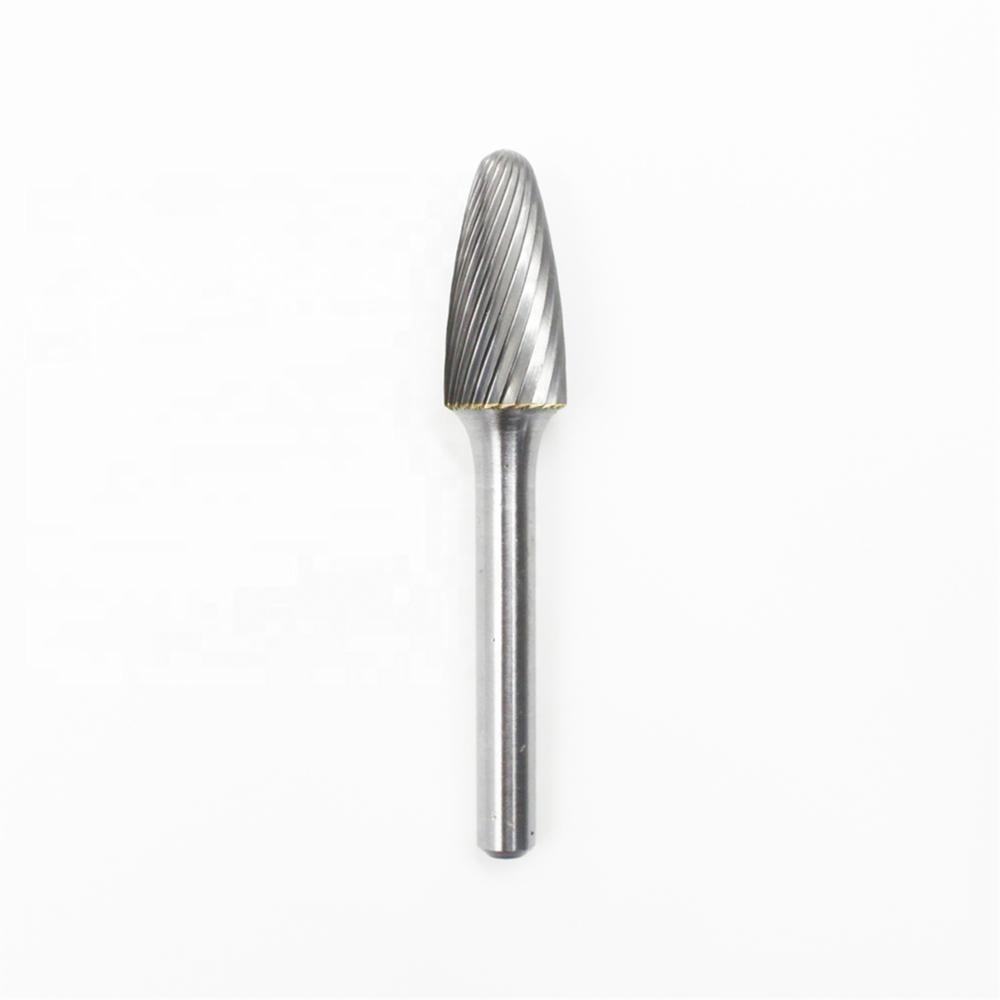

F-shape tungsten carbide rotary burr with 6mm shank shown in close-up
Specifications
Product Name Tungsten Carbide Rotary Files
Brand KTS
Material Tungsten Carbide (100% raw material)
Shank Hardness HRA 89–92.5
Shank Diameter 3mm / 6mm / 8mm / 10mm and other sizes available
Tolerance Strict tolerance control, up to ±0.01mm
Grades YG6, YG8, YG8C, YG11C, YG15C and others
Types Standard, conical, parabolic, ballistic
Speed of Tool 15,000–45,000 RPM
Packing Set packing
Certificate ISO9001:2008

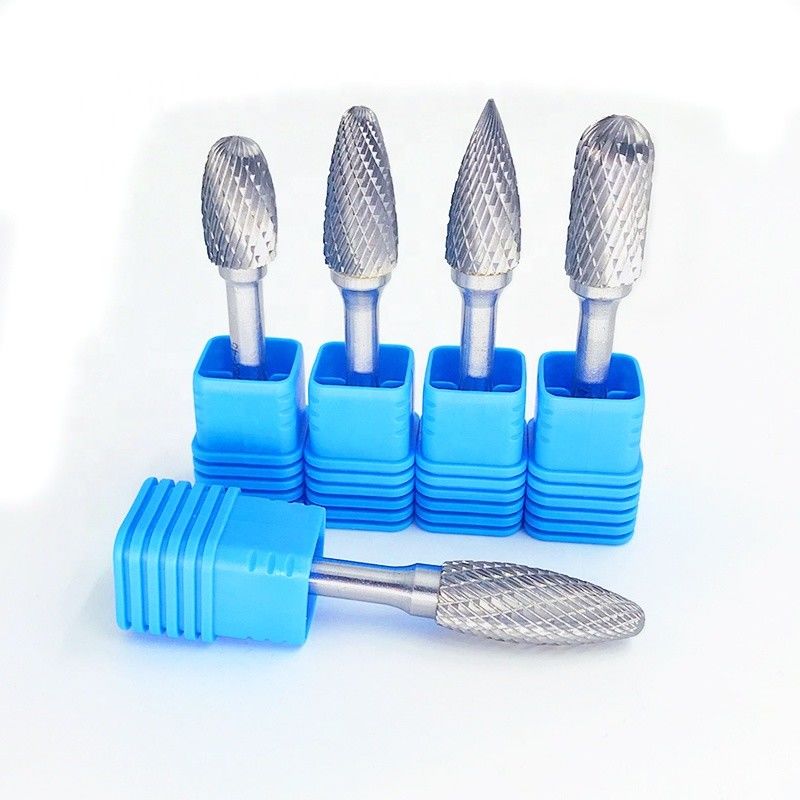

Set of tungsten carbide rotary burrs arranged in a plastic storage case
Close-up detail of carbide burr cutting flutes and 6mm shank
How to Use Carbide Burrs
1. Speed / RPM

The speed at which you use your carbide burr in a rotary tool depends on the material being worked and the contour being produced. It is safe to say you do not need to exceed 35,000 RPM. The table below shows approximate recommended speeds.

Diameter of Burr Recommended RPM
2.35mm or 3/32" 17,000 – 26,000
3mm or 1/8" 17,000 – 26,000
6mm or 1/4" 11,000 – 16,500
12mm or 1/2" 8,000 – 12,000
16mm or 5/8" 7,650 – 11,500
2. Apply Only a Little Pressure

As with all drill bits and burrs, let the burr do the work and apply only light pressure. Excessive pressure will cause the cutting edges of the flutes to chip away or become smooth too quickly, reducing the life of your burr.

3. Keep the Carbide Burr Moving

When using your carbide burr, try not to keep it still for too long. Holding it in one place will cause the burr to dig and jab into the material, leaving unsightly marks and roughness.

Advantages of Our Carbide Burrs
  • 100% quality and brand new.
  • Can process a variety of metal and non-metal materials, with processing hardness up to HRA 89–92.5.
  • In a great part of the work, it can replace the petiole small wheel with no dust pollution.
  • High production efficiency — several times higher than a file, and nearly 10 times higher than a small wheel stalk.
  • High product processing quality and high finish; can process a variety of high-precision mold cavities.
  • Long life — durability is 10 times higher than high-speed steel cutting tools and 200 times higher than a small grinding wheel.
  • Easy to use, safe and reliable; reduces labor intensity and improves the working environment.
  • Suitable for processing metal and non-metal materials such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, ceramic tile, marble, jade, bone, and more.
Diagram illustrating the various shapes and applications of tungsten carbide rotary burrs
Product Application

Tungsten carbide burrs are widely used in shipping construction, auto engine porting, and foundry fabrication. With their high rotating speed and hardness, they can machine many different materials including cast iron, carbon steel, alloy steel, and non-ferrous materials. Long service life is assured by virgin, excellent raw material — one of the most critical factors in tool life.

Carbide burr being used on a metal workpiece during grinding application
Why Choose KTS?
KTS factory production line for tungsten carbide rotary burrs
Quality inspection of finished tungsten carbide burrs at KTS facility
Risk Guarantee
  • 100% raw material — no waste tungsten carbide added.
  • No through-hole or tail-hole welding used.
  • 100% factory direct sales.
Packaging & Shipping

Plastic box in standard export carton. Transportation options include:

  1. Sea transportation
  2. Air transportation
  3. Land transportation
  4. Railway transportation
Frequently Asked Questions
FAQ icon representing customer support for carbide burr products
1. Could you please send me your catalog with a price list?

Yes, a catalog is available. Kindly tell us the item number you are interested in, and we will send a quotation list as soon as possible.

2. May I order a small quantity of carbide products?

Different models have different MOQs. Please contact us to confirm the minimum order quantity for your selected items.

3. Can you provide a sample?

Yes. Please feel free to tell us the item number you prefer. Your own design is also welcome for sample production.

4. When can you send the carbide products after payment?

Around 30 days after payment.

5. What are your price, payment, and delivery terms?

Price Terms: FOB Guangzhou, with balance paid before shipment. Payment Terms: T/T in advance. Delivery Terms: by express, by air, by shipment, or as per requirement.

6. What is your guarantee?

Before shipment, our products pass strict inspection. If any problem is found, detailed photos must be provided within 20 days after receiving the goods. After our confirmation, compensation will be offered accordingly.
