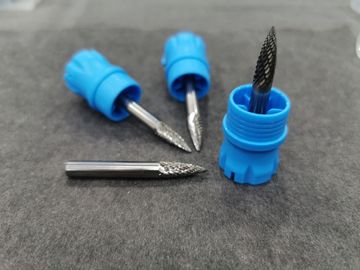

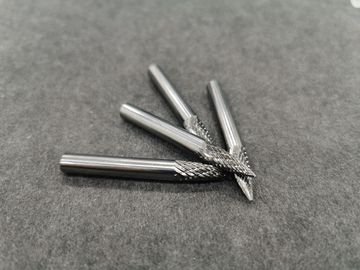

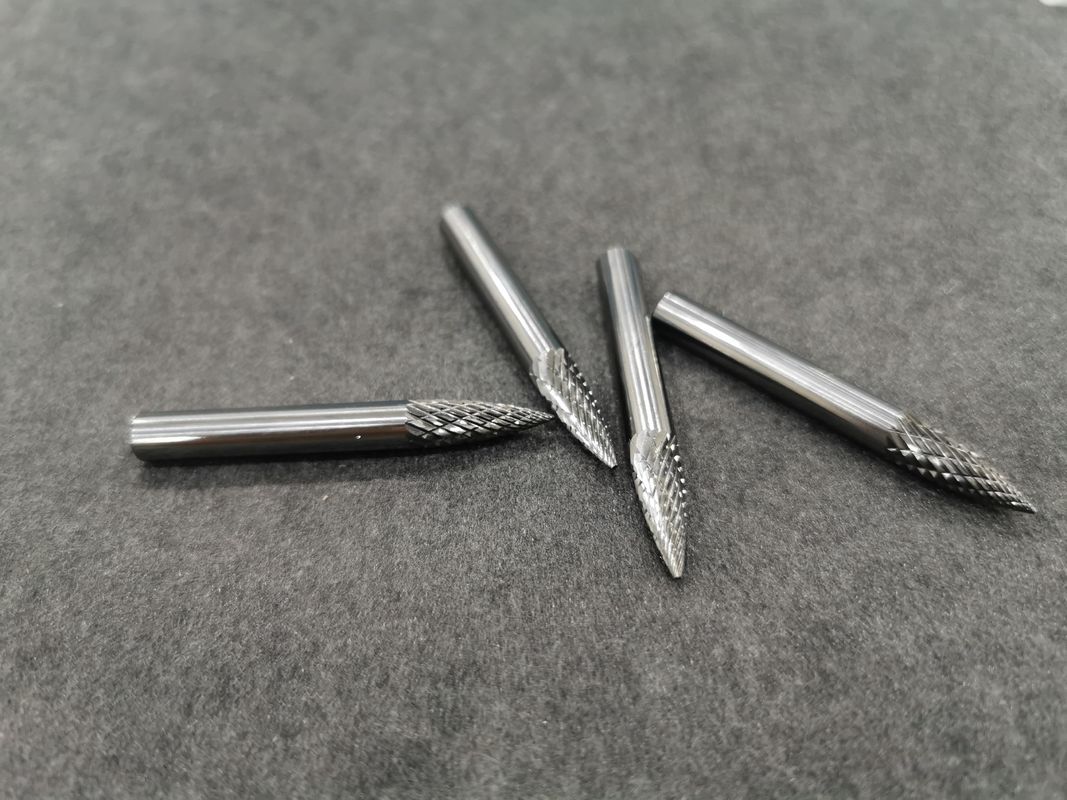

SOLID ROTARY CUTTING TOOLS 100% BURR ROTARY FILE TREE SHAPE WITH POINT END

100 PIECES
MOQ
USD 1-10/PIECE
Price
SOLID ROTARY CUTTING TOOLS 100% BURR ROTARY FILE TREE SHAPE WITH POINT END
Features Gallery Product Description Request A Quote
Features
Specifications
Name: TREE SHAPE WITH POINT END
Material: TUNGSTEN CARBIDE BURRS
Shape: TREE SHAPE WITH POINT END
Grade: YG6/YG8/YG10X
Colour: SILVER
Shank: 40 CrMo
LOGO: AVAILABLE
Sample: AVAILABLE
Port: SHANGHAI/GUANGZHOU/SHENZHEN
Highlight:

tungsten carbide rotary burrs

,

carbide rotary file

Basic Infomation
Place of Origin: SICHUAN, CHINA
Brand Name: KTS
Certification: ISO9001:2008
Model Number: TREE SHAPE WITH POINT END
Payment & Shipping Terms
Packaging Details: PLASTIC CASE
Delivery Time: 7-15 DAY
Payment Terms: L/C, T/T, Western Union
Supply Ability: 250000 Piece/Pieces per Month
Product Description

SOLID ROTARY CUTTING TOOLS 100% TUNGSTEN CARBIDE BURR





Material: 100% of raw materials.

Tolerance: strict tolerance extent control, which can reach +/-0.01mm;

Grades: various for choice: YG6, YG8, YG8C, YG11C,YG15C and so on.

Types: standard, conical, parabolic,ballistic

Physical performance: high hardness and impact toughness, very good mechanical & chemical stability.



Product name

 Tungsten Carbide Rotary Files

Brand
KTS
Head Hardness
HRA 89-92.5
Material
Tungsten Carbide
Shank diamter
3mm/6mm/8mm/10mm...
Packing
Carton
speed of tool
15000-25000Turn/min

 Certificate

ISO9001:2008



How to use the carbide burrs:

1. Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2.35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500
2. Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3. Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.





·100% quality and brand new.
·Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
·In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
·High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
·High product processing quality, high finish, can process out a various of high-precision mold cavity.
·Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
·Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
·Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.





Product Application:
Tungsten carbide burr is used widely in the shipping construction, auto engine porting and foundry fabrication. With its high rotating speed and hardness, it can machine a lot of different materials like cast iron, carbon steel, alloy steel and non ferrous material. High life service of product is warranted for virgin and excellent raw material which is one of most critical factors to the tools' life.
