SH -5 Shape 6mm Flame Carbide Burr / Die Grinder Bits For Aluminum Full Size

SH -5 Shape 6mm Flame Carbide Burr / Die Grinder Bits For Aluminum Full Size

Brand Name: KTS
Model Number: FLAME SHAPE
MOQ: 100 Pieces
Price: $1-10/PIECE
Payment Terms: L/C,T/T,Western Union
Supply Ability: 250000 PIECES PER MONTH
Detail Information
Place of Origin:
SICHUAN CHINA
Certification:
ISO9001:2008
Head Diameter:
6mm
Material:
Tungsten Carbide
Shank Material:
40 CrMo
Grade:
YG6/YG8/YG10
Cut Type:
Single/Double/Aluminum Cut
Operating Speed:
6000-50,000 Rpm
Packaging Details:
PLASTIC CASE
Highlight:

flame shaped finishing bur

,

rotary cutting bits

Product Description
Product Overview

The SH-5 Shape 6mm Flame Carbide Burr is a full-size die grinder bit engineered for precision material removal on aluminum and other metals. Its flame-shaped head delivers excellent control for contour work, deburring, and finishing tasks across demanding industrial applications.

Product Application

Tungsten carbide burrs are widely used across industrial sectors including machinery, aviation, automobile, shipbuilding, chemical engineering, and process engraving. Primary applications include:

  • Fine processing of various metal molds, such as shoe molds and similar tooling.
  • Process engraving on metal and non-metal materials, including mold engraving and trimming of craft gifts.
  • Cleaning flash, burrs, and welds from castings, forgings, and weldments — common in machine-casting, shipbuilding, and automobile factories.
  • Chamfering, rounding, and groove processing of mechanical parts, plus pipe cleaning and inner-hole surface finishing in machinery factories and repair shops.
  • Repair of impeller runners, such as those found in car engine factories.
Instructions for Use

Carbide rotary burrs are primarily used with power tools or pneumatic tools, and can also be installed on machine tools. The recommended driving speed is generally 6,000–50,000 RPM.

Double Cutter vs. Single Cutter
Double Cutter

Better suited for lower-density materials such as wood, plastic, and aluminum. The crossed cutting lines enable fast chip removal, though debris can easily clog the grain gaps during grinding and engraving — making the double cut ideal for softer objects.

Single Cutter

The single-cutter texture makes it unsuitable for processing softer materials. When cutting soft material, debris tends to block the sipe, resulting in shallower texture depth and reduced cutting capacity. The single cutter is therefore better suited for hard materials such as iron, copper, and steel.

Custom Size Options
  1. All products in stock are metric-sized. Customers requiring inch sizes should contact us directly.
  2. Non-standard sizes can be produced according to required dimensions and drawings.
  3. Please contact us for more details about this product and other available shapes.

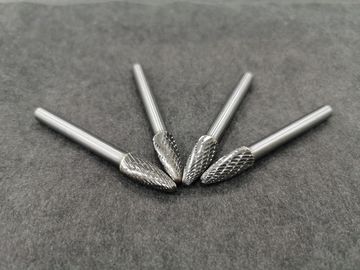

SH-5 flame-shaped 6mm carbide burr die grinder bit for aluminum, full size product view
