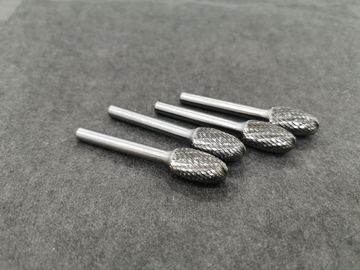

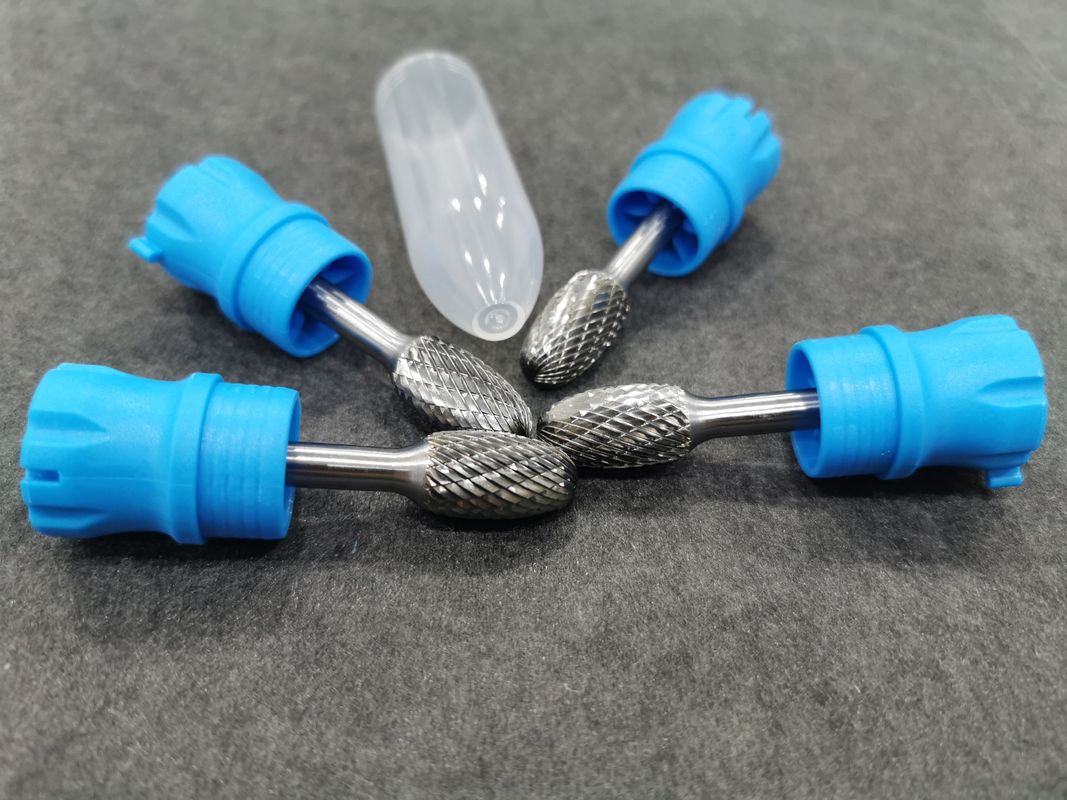

Oval Shape E Carbide Rotary Burr Stainless Steel Cutting Strong Shank And Head

100 PIECES
MOQ
$1-10/PIECE
Price
Oval Shape E Carbide Rotary Burr Stainless Steel Cutting Strong Shank And Head
Features Gallery Product Description Request A Quote
Features
Specifications
Model: OVAL SHAPE CARBIDE BURRS
Material: TUNGSTEN CARBIDE
Color: SILVER
Size: 6MM-25MM
Grade: YG6/YG8/YG10X
Port: SHANGHAI/GUANGZHOU/SHENZHEN
Logo: AVAILABLE
OEM/ODM: AVAILABLE
High Light:

rotary burr cutter

,

carbide rotary file

Basic Infomation
Place of Origin: SICHUAN CHINA
Brand Name: KTS
Certification: ISO9001:2008
Model Number: OVAL SHAPE
Payment & Shipping Terms
Packaging Details: PLASTIC CASE
Delivery Time: 7-30 Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 Piece/Pieces Month
Product Description



HARD HEAD TUNGSTEN CARBIDE BURRS LONG LIFE RPM10000-20000 BURRS



  • 1/4" Shank, Cylinder shape with radius end.
  • Size: 1/8"- 1".

SCTI Cutter Cutter
Code Dia. Length
SC-11 1/8" 1/2
SC-13 5/32 5/8
SC-14 3/16 5/8
SC-1 1/4 5/8
SC-2 5/16 3/4
SC-3 3/8 3/4
SC-4 7/16 1
SC-5 1/2 1
SC-6 5/8 1
SC-7 3/4 1
SC-9 1 11





How to use the carbide burrs:



1. Speed /RPM

The speed at which you use your carbide bur in your rotary tool will depend on the material you're using it on and the contour being produced but it's safe to say you do not need to exceed speeds of 35,000 RPM. The table below shows some approximate speeds.
Diameter of Burr RPM
2. 35mm or 3/32" 17,000 - 26,000
3mm or 1/8" 17,000 - 26,000
6mm or 1/4" 11,000 - 16,500
12mm or 1/2" 8,000 - 12,000
16mm or 5/8" 7,650 - 11,500
2. Apply only a little pressure
As with all drill bits and burrs, let the burr do the work and apply only a little pressure otherwise the cutting edges of the flutes will chip away or become smooth too quickly, reducing the life of your burr.
3. Keep The Carbide Burr On The Move
When using your carbide burr try not to keep it still for too long as this will prevent the burr from digging and jabbing into your material causing unsightly marks and roughness.



Advantage of our carbide burrs:

· 100% quality and brand new.
· Can Process a variety of metal and non-metal, processing hardness would up to HRA89-92.5
· In a great part of the work, it can replace the petiole small wheel, and no dust pollution.
· High production efficiency, the processing efficiency is several times higher than file, nearly 10 times higher than small wheel stalk.
· High product processing quality, high finish, can process out a various of high-precision mold cavity.
· Long life, the durability is 10 times higher than high-speed steel cutting tool, 200 times higher than small grinding wheel.
· Easy to use, safe and reliable, can reduce labor intensity, improve the working environment.
· Suitable for processing these metal and non-metal, such as cast iron, cast steel, bearing steel, high carbon steel, chrome-nickel alloy, bronze, brass, and ceramic tile, marble, jade, bone, etc.
