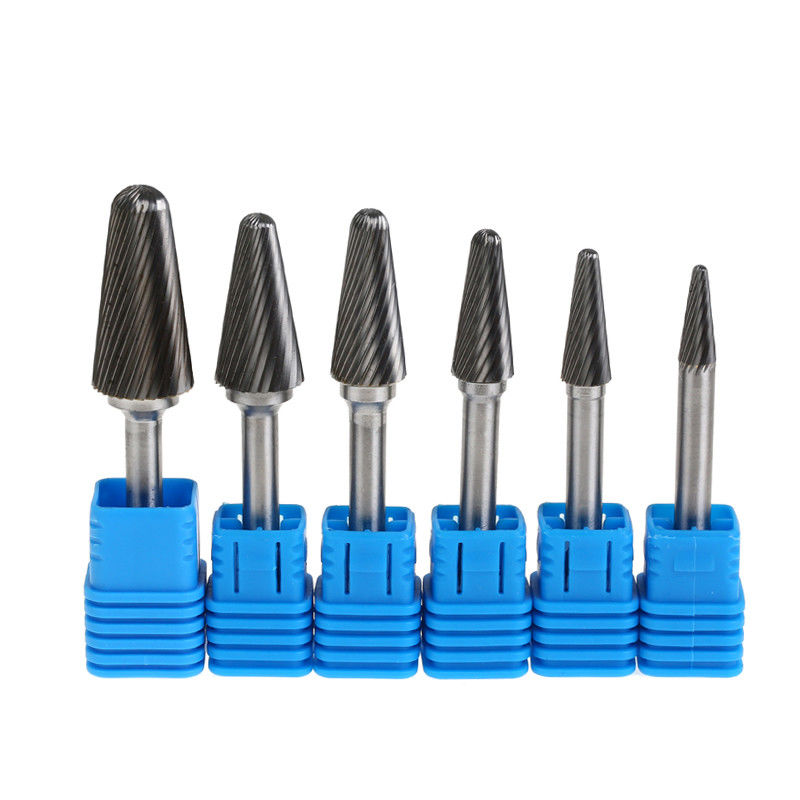

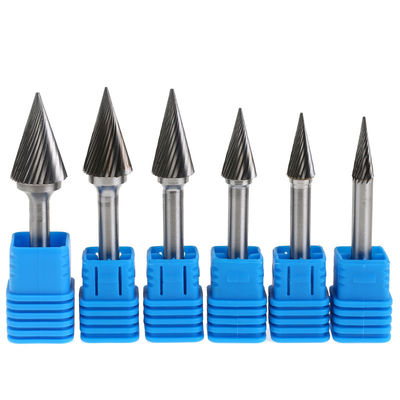

Certified Carbide Burr Double Cut Cutting Tools Alloy Rotary File
Carbide Rotary Burrs, often referred to as rotary files or die grinder bits are used for cutting, shaping, and grinding, and for the removal of sharp edges, burrs and excess material (deburring).For drilling holes in hard metals you would need to use carbide micro drills or carbide straight shank drills. For cutting slots, routing, profiling, contouring, counter-boring, and reaming you would use a a carbide end mill, carbide slot drill or a carbide router. For cutting and shaping stone or glass you would use a Diamond Burr.
• In-house designed, fully automated equipment for cost-effective manufacture.
• Continuous investment in customer and application driven development of new products, giving you effective solutions.
Technical Date
| S.N. | Materials |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to riunning speeds
|
mat nr. MAX RPM |
3mm/0.125" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625" 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,500-30,000 | 15.000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Carbide Burrs Can be Used on Many Materials
Die grinder bits can be used on a multitude of materials: metals including steel, aluminum and cast iron, all types of wood, acrylics, fibreglass and plastics. Carbide burrs are also perfect for working on softer metals such as gold, platinum and silver as they last a long time with no chipping or breaking.
Advantages
Company Introduction
Zigong Jincheng Cemented Carbide Tools Co., Ltd. is one of the market leaders in China that produces and sells rotary burrs, teeth, bars, blanks, alloy plates, nozzles and more. We were established in China in 2007. As a tool company from raw material to finished product processing and research, we can provide semi-finished products, finished products, customized services and other services. Our products have been exported to more than 30 countries and regions in the United States, Britain, Germany, France, Mexico, Canada, Russia, Japan, Australia, and the Middle East. Chengdu Jinyuan New Material Co., Ltd. is a subsidiary of Zigong Jincheng Cemented Carbide Tools Co., Ltd., which is committed to providing customers with quality services, products and preferential prices.
