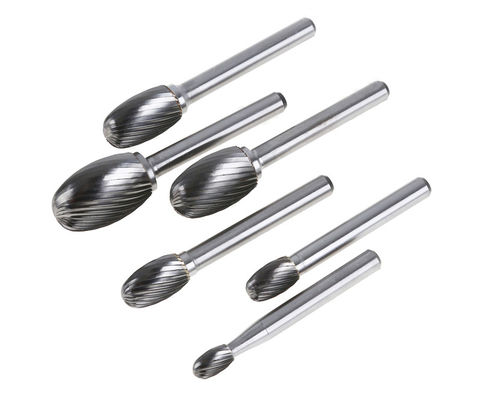

Oval Shape Double Cut Solid Carbide Burrs For Wood Carving
These new cemented carbide files are made of the highest grade tungsten carbide and are manufactured with the highest precision to achieve perfect concentricity and balance. They provide fast material removal and the longest service life.
Application scope:
1.expand
2.finishing
3.Clear
Feature:
1.First-class tungsten carbide-suitable for the most demanding applications in a variety of materials.
2.The unique tooth shape design ensures maximum cutting performance.
3.Precise manufacturing-perfect burr and vibration-free operation.
4.High-strength brazed joints: "Strict manufacturing processes can ensure that they will not break.
5.Advanced groove geometry-to ensure maximum cutting capacity and chip evacuation from tip to bottom.
6.The single-cut burr is designed with a right-handed spiral flute to quickly remove the burr and leave a rougher surface than the double-cut burr. 7.They can be used for steel, stainless steel, cast iron and non-ferrous materials.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
