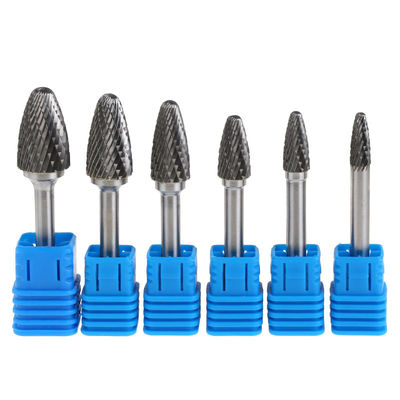

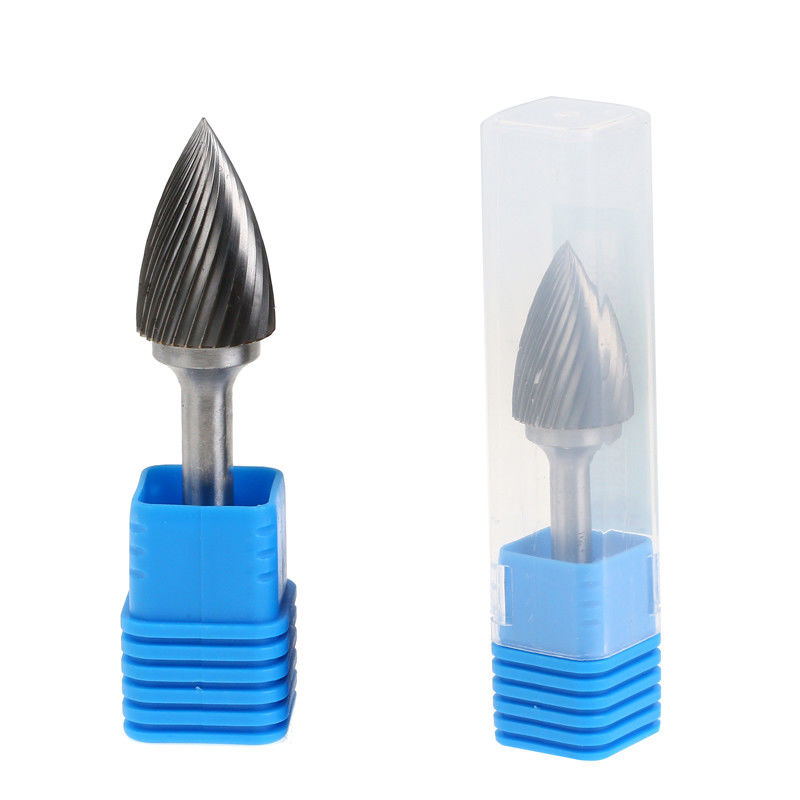

Double Flat Bottom Silver Welding Flutes Tungsten Carbide Rotary File Burr
Tungsten carbide burr provides a method of deburring, shaping and chamfering internal grooves using a die grinder. We provide various shapes to facilitate different tasks. We also provide 2 grades to suit different metals. Most are "hard metal" grades, very suitable for steel, stainless steel and cemented carbide. The "non-ferrous" grades have a smaller range of options, and are more suitable for bronze, aluminum alloy and brass. They are also effective on wood and are very helpful for carving.
Drive tool:
1.Mold grinder: Most of the products we choose have 6mm spindles to fit the most popular collet size in mold grinders.
2.Dremmels: There are a few options for 3mm spindles. These will suit Dremmels and other details and hobby tools.
3.Larger: We provide a small amount of burrs with 8mm spindles. These will be mainly suitable for drill chucks.
4.Lengthened spindle: We provide the option of lengthened spindle (169mm) for ball burrs.
5.Recommended cutting speed: These products will work effectively in a wide range of speeds, but for more specific guidance, click the "More Information" tab.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
